text version of content this owner's manual page from owners manual to the vehicle Porsche Cayenne S, year of production 2002 - 2010:

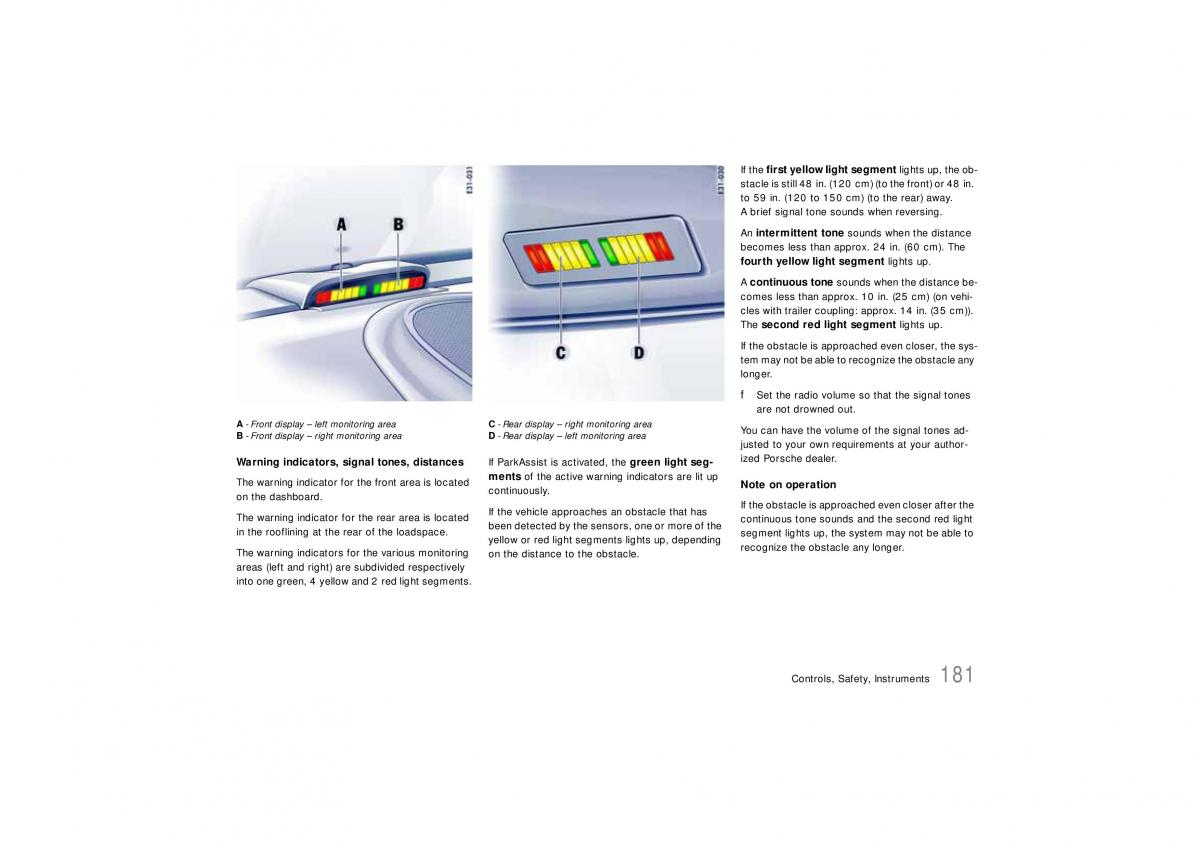

If the first yellow light segment lights up, the ob- stacle is still 48 in. (120 cm) (to the front) or 48 in. to 59 in. (120 to 150 cm) (to the rear) away. A brief signal tone sounds when reversing. An intermittent tone sounds when the distance becomes less than approx. 24 in. (60 cm). The fourth yellow light segment lights up. A continuous tone sounds when the distance be- comes less than approx. 10 in. (25 cm) (on vehi- cles with trailer coupling: approx. 14 in. (35 cm)). The second red light segment lights up. If the obstacle is approached even closer, the sys- tem may not be able to recognize the obstacle any longer. f Set the radio volume so that the signal tones are not drowned out. A- Front display – left monitoring areaC- Rear display – right monitoring areaYou can have the volume of the signal tones ad- B- Front display – right monitoring areaD- Rear display – left monitoring areajusted to your own requirements at your author- Warning indicators, signal tones, distancesIf ParkAssist is activated, the green light seg-ized Porsche dealer. The warning indicator for the front area is located ments of the active warning indicators are lit up Note on operation on the dashboard. continuously. If the vehicle approaches an obstacle that has If the obstacle is approached even closer after the The warning indicator for the rear area is located been detected by the sensors, one or more of the continuous tone sounds and the second red light in the rooflining at the rear of the loadspace.yellow or red light segments lights up, depending segment lights up, the syst em may not be able to The warning indicators fo r the various monitoring on the distance to the obstacle.recognize the obstacle any longer. areas (left and right) are subdivided respectively into one green, 4 yellow and 2 red light segments. Controls, Safety, Instruments 181
