text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

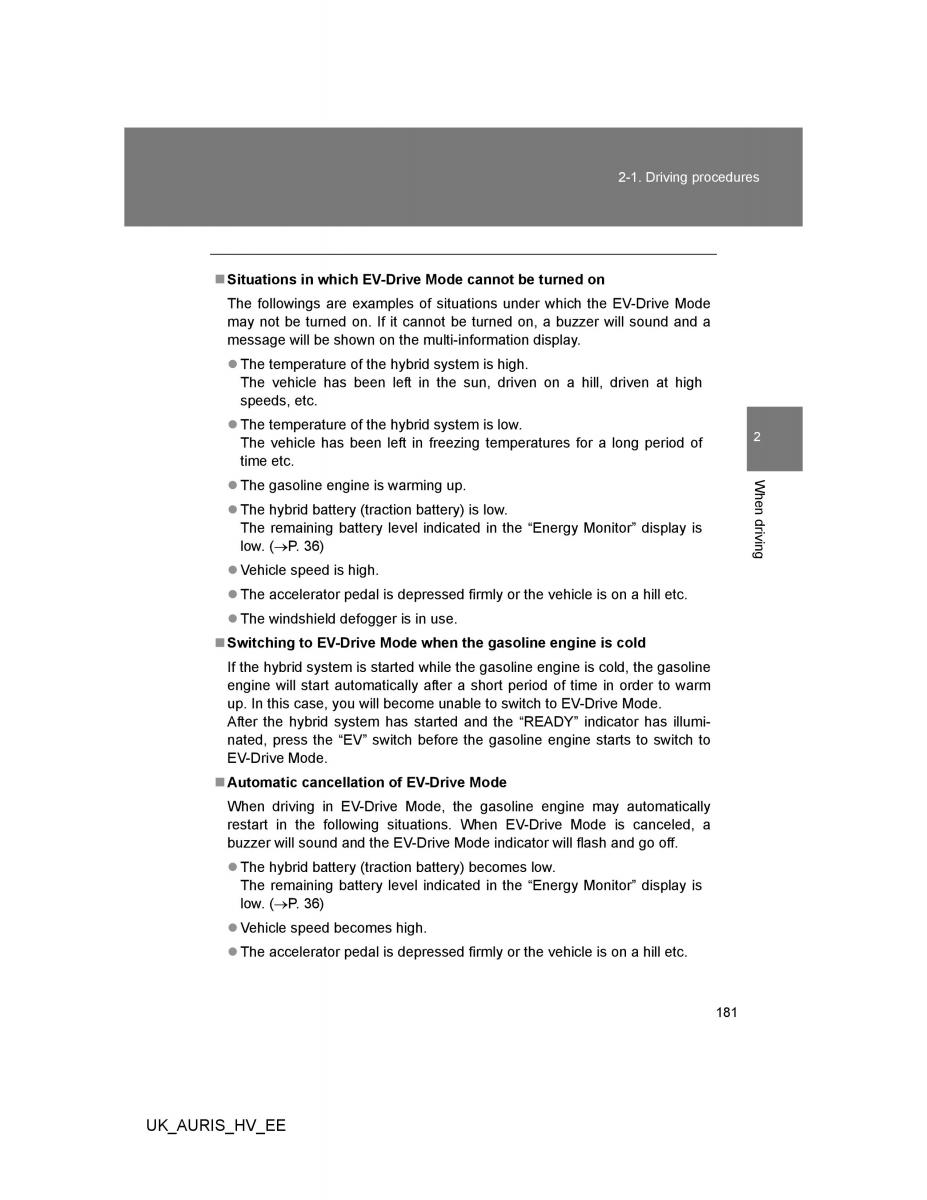

2-1. Driving procedures Situations in which EV-Drive Mode cannot be turned on The followings are examples of situations under which the EV-Drive Mode may not be turned on. If it cannot be turned on, a buzzer will sound and a message will be shown on the multi-information display. The temperature of the hybrid system is high. The vehicle has been left in the sun, driven on a hill, driven at high speeds, etc. The temperature of the hybrid system is low. 2 The vehicle has been left in freezing temperatures for a long period of time etc. The gasoline engine is warming up. W The hybrid battery (traction battery) is low. hen drivi The remaining battery level indicated in the “Energy Monitor” display is low. (P. 36) n Vehicle speed is high. g The accelerator pedal is depressed firmly or the vehicle is on a hill etc. The windshield defogger is in use. Switching to EV-Drive Mode when the gasoline engine is cold If the hybrid system is started while the gasoline engine is cold, the gasoline engine will start automatically after a short period of time in order to warm up. In this case, you will become unable to switch to EV-Drive Mode. After the hybrid system has started and the “READY” indicator has illumi- nated, press the “EV” switch before the gasoline engine starts to switch to EV-Drive Mode. Automatic cancellation of EV-Drive Mode When driving in EV-Drive Mode, the gasoline engine may automatically restart in the following situations. When EV-Drive Mode is canceled, a buzzer will sound and the EV-Drive Mode indicator will flash and go off. The hybrid battery (traction battery) becomes low. The remaining battery level indicated in the “Energy Monitor” display is low. (P. 36) Vehicle speed becomes high. The accelerator pedal is depressed firmly or the vehicle is on a hill etc. 181 UK_AURIS_HV_EE
