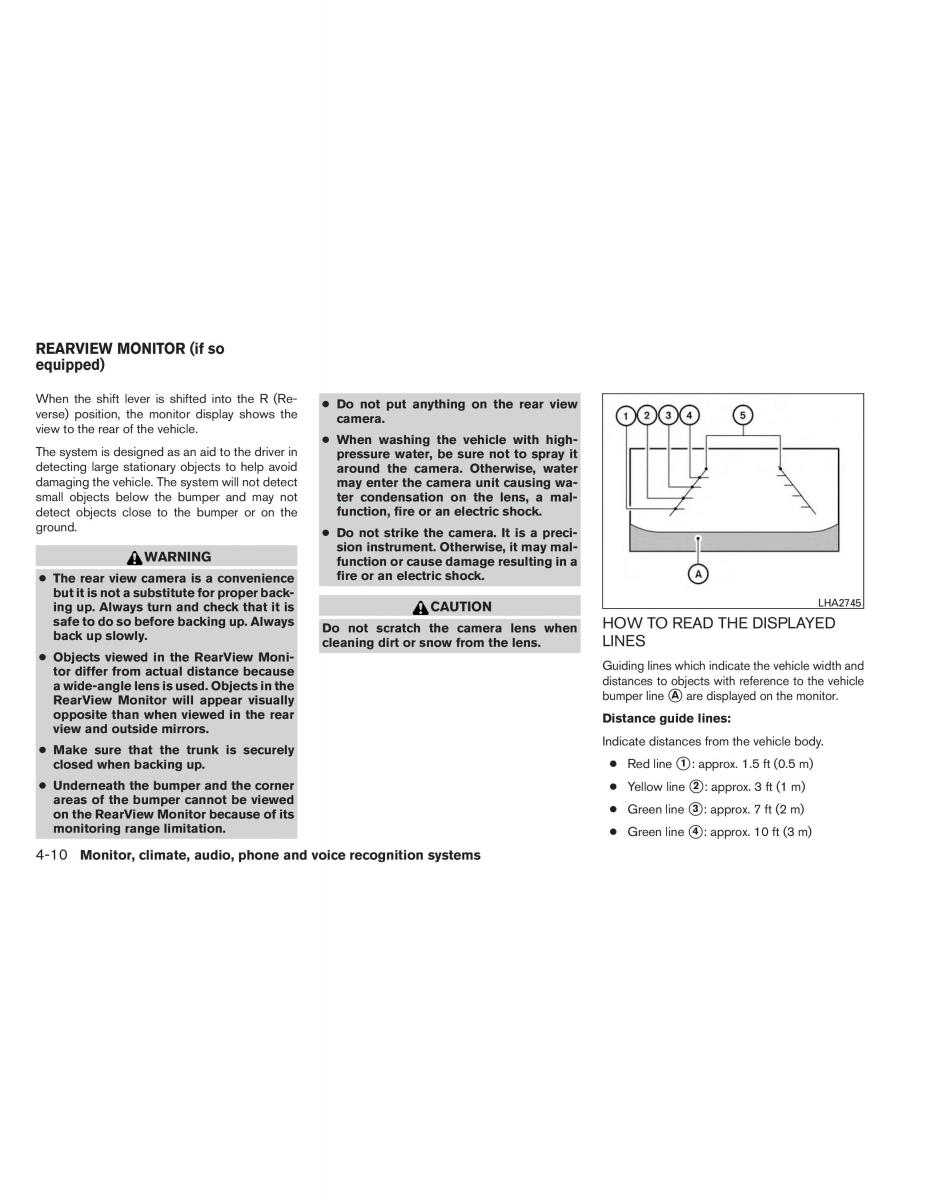

REARVIEWMONITOR(ifso
equipped)
When the shift lever is shifted into the R (Re-● Do not put anything on the rear view
verse) position, the monitor display shows thecamera.
view to the rear of the vehicle. ● When washing the vehicle with high-
The system is designed as an aid to the driver inpressure water, be sure not to spray it
detecting large stationary objects to help avoidaround the camera. Otherwise, water
damagingthevehicle. The system will not detectmayenter the camera unit causing wa-
small objects below the bumper and may notter condensation on the lens, a mal-
detect objects close to the bumper or on thefunction, fire or an electric shock.
ground. ● Do not strike the camera. It is a preci-
WARNING sion instrument. Otherwise, it may mal-
functionorcausedamageresultingina
● The rear view camera is a conveniencefire or an electric shock.
butitisnotasubstituteforproperback- LHA2745
ing up. Always turn and check that it is CAUTION
safetodosobeforebackingup.AlwaysDo not scratch the camera lens whenHOWTOREADTHEDISPLAYED
back up slowly. cleaning dirt or snow from the lens.LINES
● Objects viewed in the RearView Moni- Guiding lines which indicate the vehicle width and
tor differ from actual distance because distances to objects with reference to the vehicle
awide-anglelensisused.Objectsinthe bumper line A are displayed on the monitor.
RearView Monitor will appear visually
opposite than when viewed in the rear Distance guide lines:
view and outside mirrors.
● Make sure that the trunk is securely Indicate distances from the vehicle body.
closed when backing up. ● Redline 1 : approx. 1.5 ft (0.5 m)
● Underneath the bumper and the corner ● Yellow line 2 : approx. 3 ft (1 m)
areas of the bumper cannot be viewed ● Greenline 3 : approx. 7 ft (2 m)
ontheRearViewMonitorbecauseofits
monitoring range limitation. ● Greenline 4 : approx. 10 ft (3 m)
4-10 Monitor, climate, audio, phone and voice recognition systems
