owners manual VW Beetle Convertible

owners manual VW Beetle Convertible - year of production: 2013 - VW Beetle Convertible owners manual EN

Document: pdf (5.52 MB) 281 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Beetle Convertible, year of production 2013:

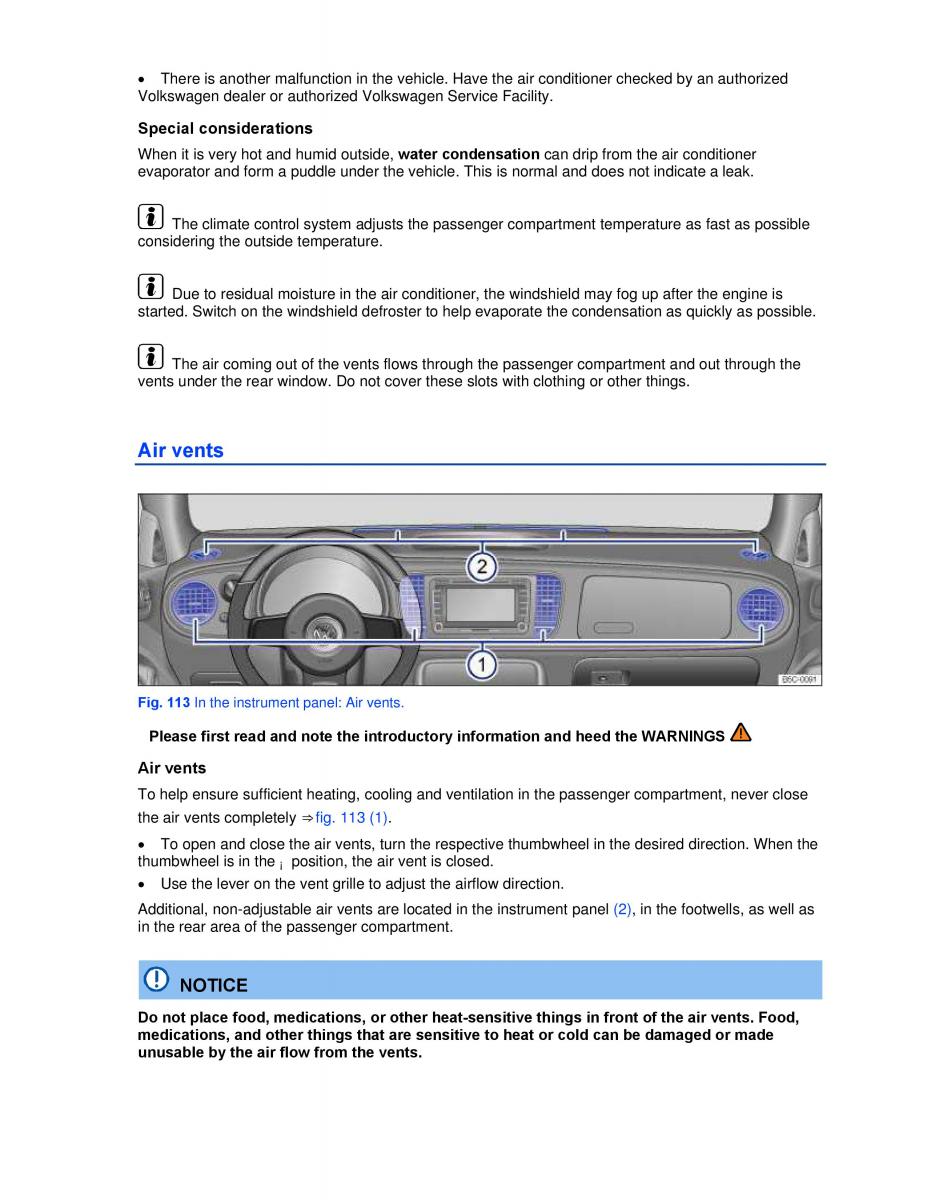

x There is another malfunction in the vehicle. Have the air conditioner checked by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. Special considerations When it is very hot and humid outside, water condensation can drip from the air conditioner evaporator and form a puddle under the vehicle. This is normal and does not indicate a leak. The climate control system adjusts the passenger compartment temperature as fast as possible considering the outside temperature. Due to residual moisture in the air conditioner, the windshield may fog up after the engine is started. Switch on the windshield defroster to help evaporate the condensation as quickly as possible. The air coming out of the vents flows through the passenger compartment and out through the vents under the rear window. Do not cover these slots with clothing or other things. Air vents Fig. 113 In the instrument panel: Air vents. Please first read and note the introductory information and heed the WARNINGS Air vents To help ensure sufficient heating, cooling and ventilation in the passenger compartment, never close the air vents completely ⇒ fig. 113 (1). x To open and close the air vents, turn the respective thumbwheel in the desired direction. When the thumbwheel is in the ¡ position, the air vent is closed. x Use the lever on the vent grille to adjust the airflow direction. Additional, non-adjustable air vents are located in the instrument panel (2), in the footwells, as well as in the rear area of the passenger compartment. NOTICE Do not place food, medications, or other heat-sensitive things in front of the air vents. Food, medications, and other things that are sensitive to heat or cold can be damaged or made unusable by the air flow from the vents.
