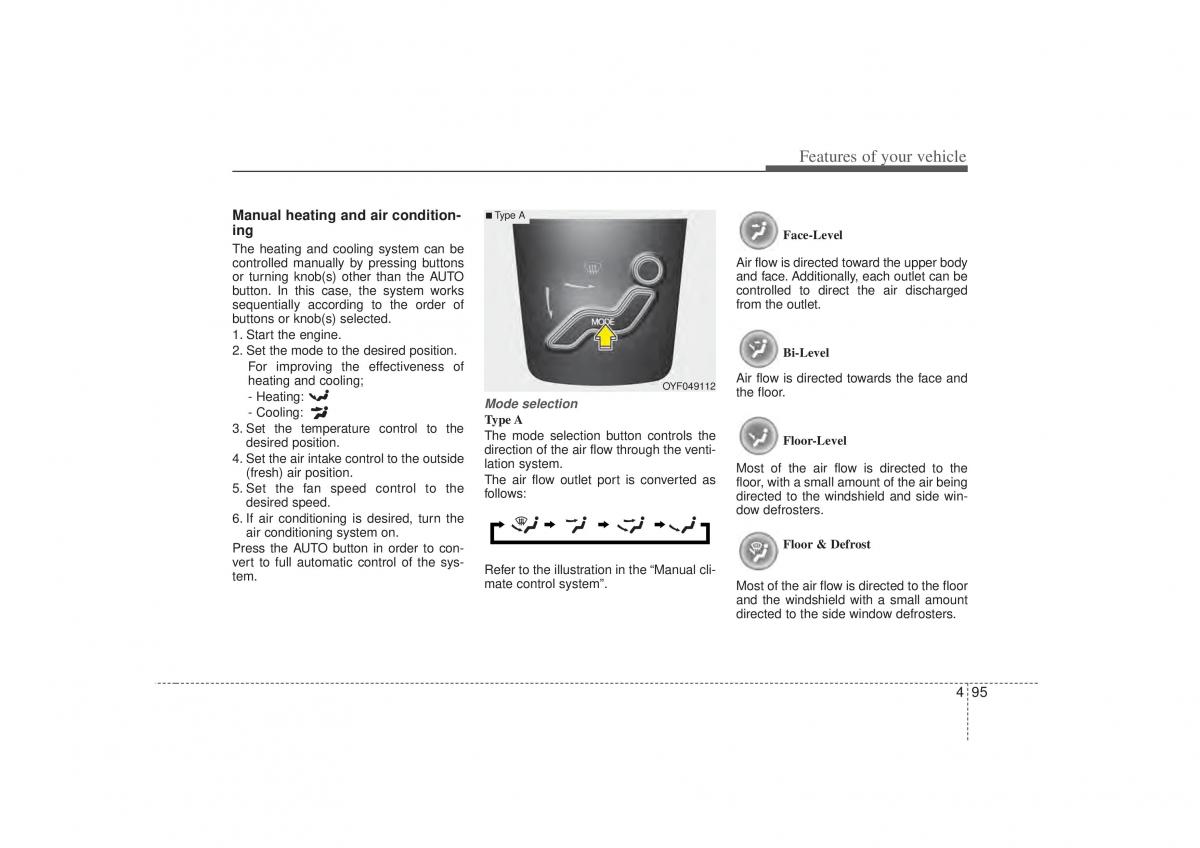

text version of content this owner's manual page from owners manual to the vehicle Hyundai Sonata, year of production 2009 - 2014:

Features of your vehicle ■Type A Manual heating and air condition- ing Face-Level The heating and cooling system can be controlled manually by pressing buttons Air flow is directed toward the upper body or turning knob(s) other than the AUTO and face. Additionally, each outlet can be button. In this case, the system works controlled to direct the air discharged sequentially according to the order of from the outlet. buttons or knob(s) selected. 1. Start the engine. 2. Set the mode to the desired position. Bi-Level For improving the effectiveness of Air flow is directed towards the face and heating and cooling; OYF049112 the floor. - Heating: Mode selection - Cooling: Type A 3. Set the temperature control to the The mode selection button controls the desired position. direction of the air flow through the venti- Floor-Level 4. Set the air intake control to the outsidelation system. Most of the air flow is directed to the (fresh) air position. The air flow outlet port is converted as floor, with a small amount of the air being 5.Set the fan speed control to the desired speed. follows: directed to the windshield and side win- 6. If air conditioning is desired, turn the dow defrosters. air conditioning system on. Floor & Defrost Press the AUTO button in order to con- vert to full automatic control of the sys- tem. Refer to the illustration in the “Manual cli- mate control system”. Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters. 495
