owners manual Rover 45

owners manual Rover 45 - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005 - Rover 45 owners manual EN

Document: pdf (3.14 MB) 207 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Rover 45, year of production 1999 - 2005:

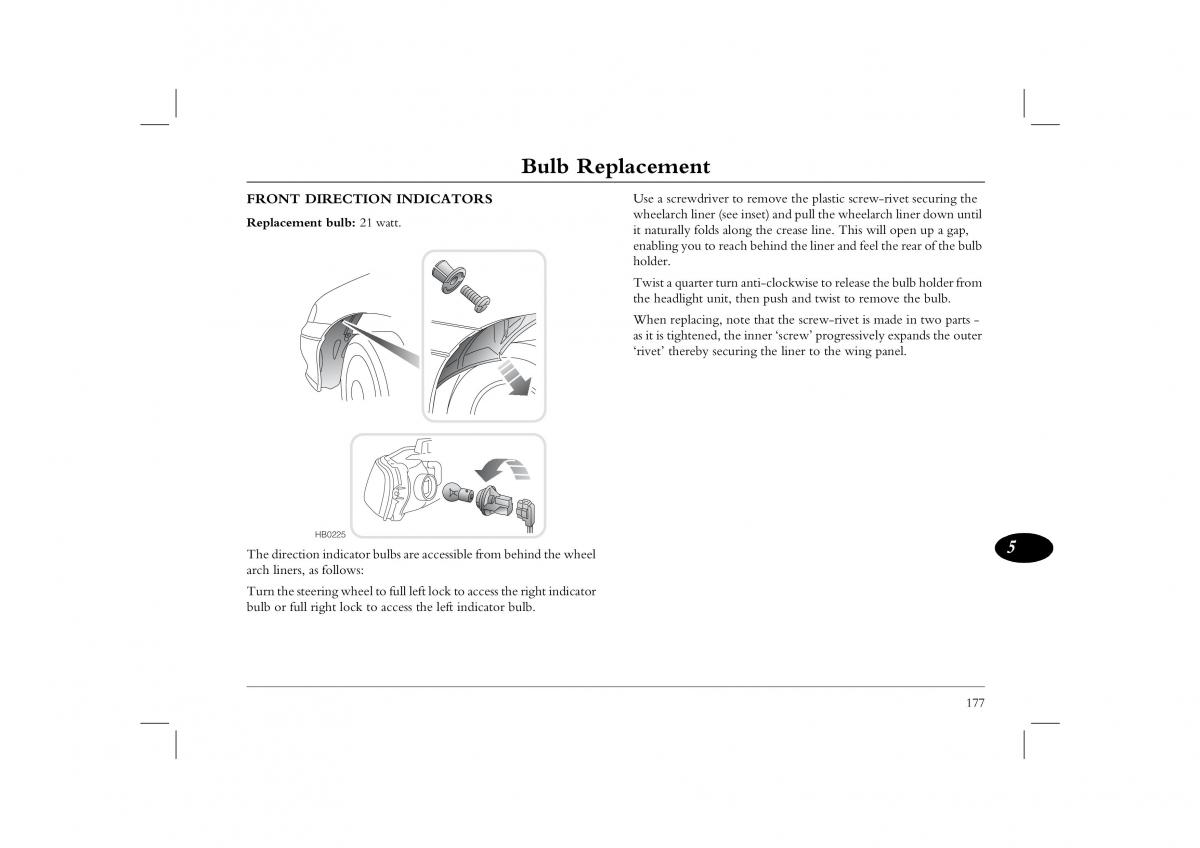

Bulb Replacement FRONT DIRECTION INDICATORS Use a screwdriver to remove the plastic screw-rivet securing the Replacement bulb: 21 watt. wheelarch liner (see inset) and pull the wheelarch liner down until it naturally folds along the crease line. This will open up a gap, enabling you to reach behind the liner and feel the rear of the bulb holder. Twist a quarter turn anti-clockwise to release the bulb holder from the headlight unit, then push and twist to remove the bulb. When replacing, note that the screw-rivet is made in two parts - as it is tightened, the inner ‘screw’ progressively expands the outer ‘rivet’ thereby securing the liner to the wing panel. HB0225 5 The direction indicator bulbs are accessible from behind the wheel arch liners, as follows: Turn the steering wheel to full left lock to access the right indicator bulb or full right lock to access the left indicator bulb. 177
