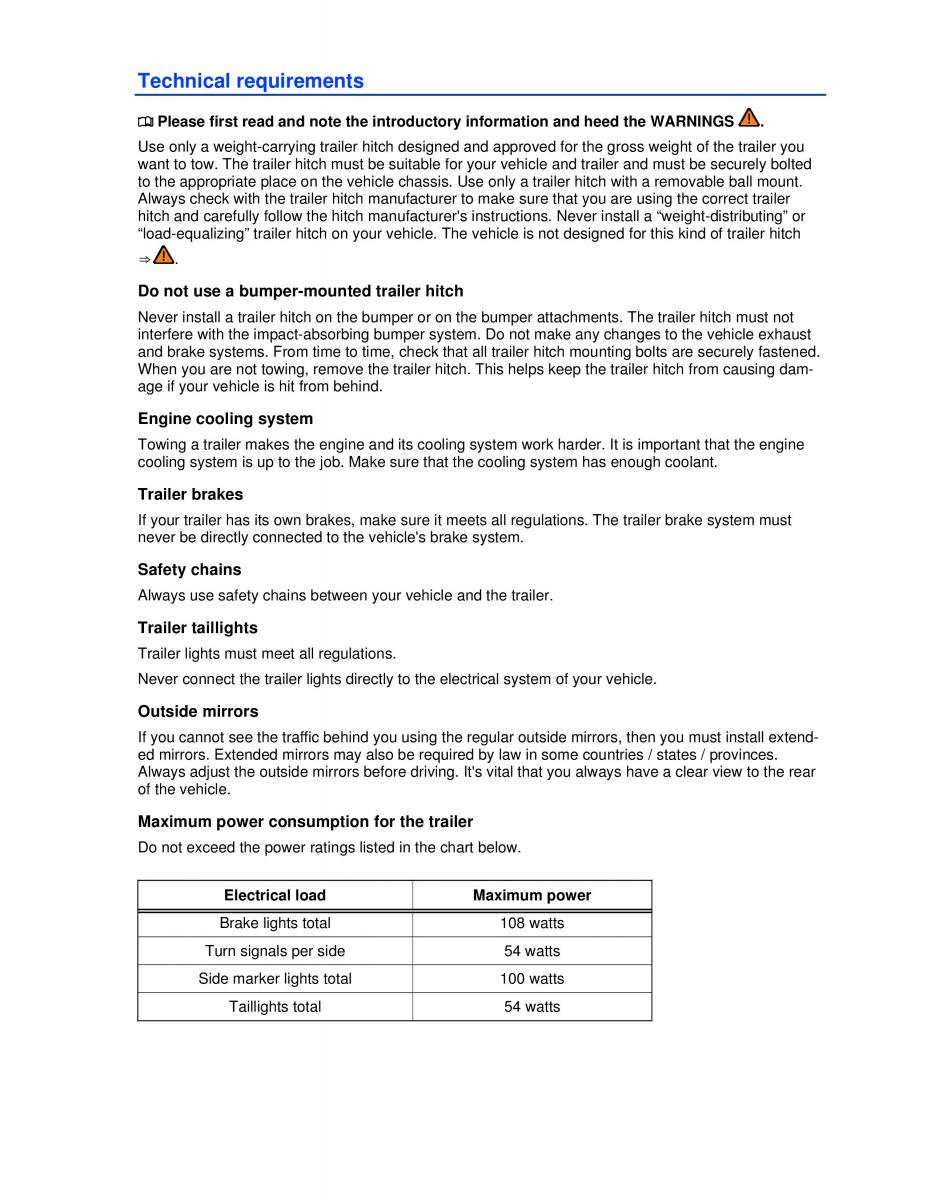

Technical requirements
¤ Please first read and note the introductory information and heed the WARNINGS .
Use only a weight-carrying trailer hitch designed and approved for the gross weight of the trailer you
want to tow. The trailer hitch must be suitable for your vehicle and trailer and must be securely bolted
to the appropriate place on the vehicle chassis. Use only a trailer hitch with a removable ball mount.
Always check with the trailer hitch manufacturer to make sure that you are using the correct trailer
hitch and carefully follow the hitch manufacturer's instructions. Never install a “weight-distributing” or
“load-equalizing” trailer hitch on your vehicle. The vehicle is not designed for this kind of trailer hitch
⇒ .
Do not use a bumper-mounted trailer hitch
Never install a trailer hitch on the bumper or on the bumper attachments. The trailer hitch must not
interfere with the impact-absorbing bumper system. Do not make any changes to the vehicle exhaust
and brake systems. From time to time, check that all trailer hitch mounting bolts are securely fastened.
When you are not towing, remove the trailer hitch. This helps keep the trailer hitch from causing dam-
age if your vehicle is hit from behind.
Engine cooling system
Towing a trailer makes the engine and its cooling system work harder. It is important that the engine
cooling system is up to the job. Make sure that the cooling system has enough coolant.
Trailer brakes
If your trailer has its own brakes, make sure it meets all regulations. The trailer brake system must
never be directly connected to the vehicle's brake system.
Safety chains
Always use safety chains between your vehicle and the trailer.
Trailer taillights
Trailer lights must meet all regulations.
Never connect the trailer lights directly to the electrical system of your vehicle.
Outside mirrors
If you cannot see the traffic behind you using the regular outside mirrors, then you must install extend-
ed mirrors. Extended mirrors may also be required by law in some countries / states / provinces.
Always adjust the outside mirrors before driving. It's vital that you always have a clear view to the rear
of the vehicle.
Maximum power consumption for the trailer
Do not exceed the power ratings listed in the chart below.
Electrical load Maximum power
Brake lights total 108 watts
Turn signals per side 54 watts
Side marker lights total 100 watts
Taillights total 54 watts
