text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo GT, year of production 2004 - 2010:

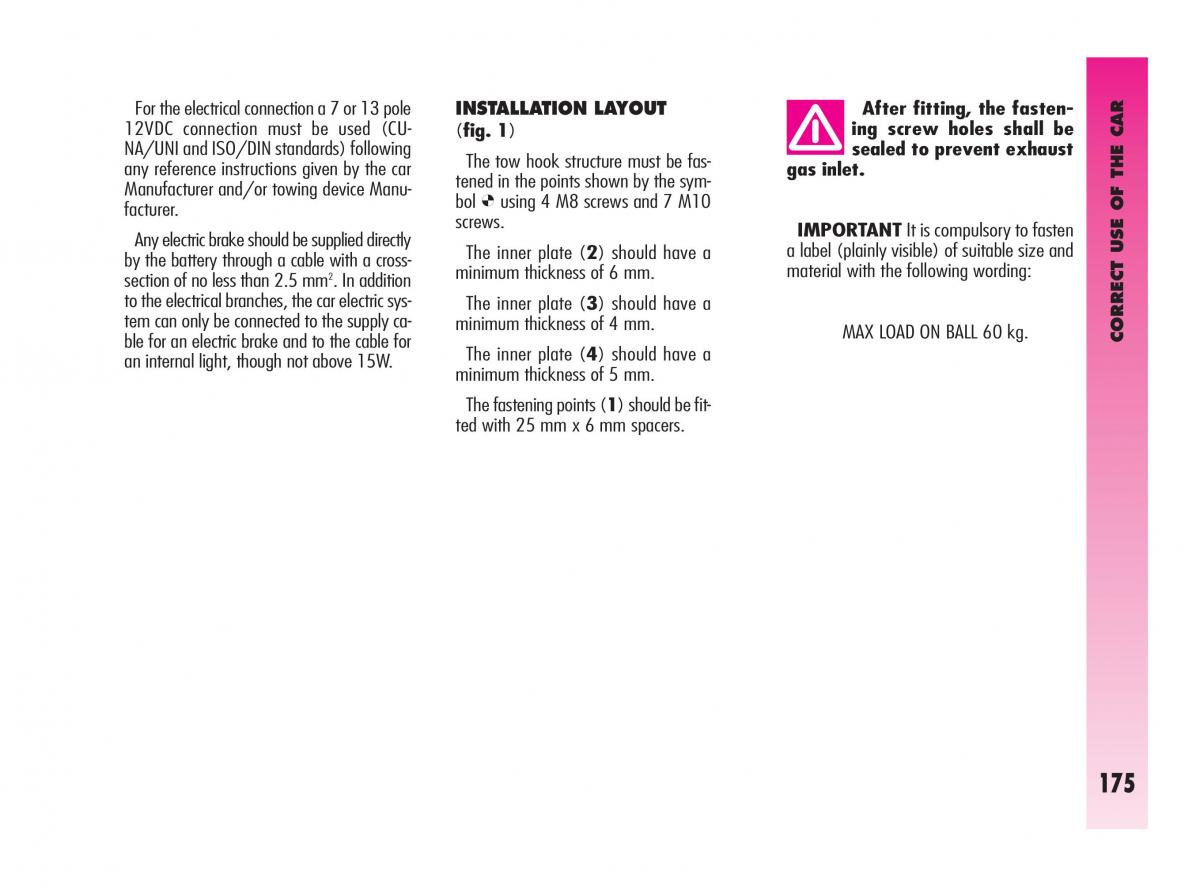

For the electrical connection a 7 or 13 pole INSTALLATION LAYOUT After fitting, the fasten- 12VDC connection must be used (CU-ing screw holes shall be (fig. 1) NA/UNI and ISO/DIN standards) following The tow hook structure must be fas- sealed to prevent exhaust any reference instructions given by the car tened in the points shown by the sym- gas inlet. Manufacturer and/or towing device Manu- bol Ø using 4 M8 screws and 7 M10 facturer. screws. Any electric brake should be supplied directly IMPORTANT It is compulsory to fasten by the battery through a cable with a cross- The inner plate (2) should have a a label (plainly visible) of suitable size and 2 minimum thickness of 6 mm. material with the following wording: section of no less than 2.5 mm. In addition to the electrical branches, the car electric sys-The inner plate (3) should have a tem can only be connected to the supply ca- minimum thickness of 4 mm. MAX LOAD ON BALL 60 kg. ble for an electric brake and to the cable for The inner plate (4) should have a CORRECT USE OF THE CAR an internal light, though not above 15W. minimum thickness of 5 mm. The fastening points (1) should be fit- ted with 25 mm x 6 mm spacers. 175
