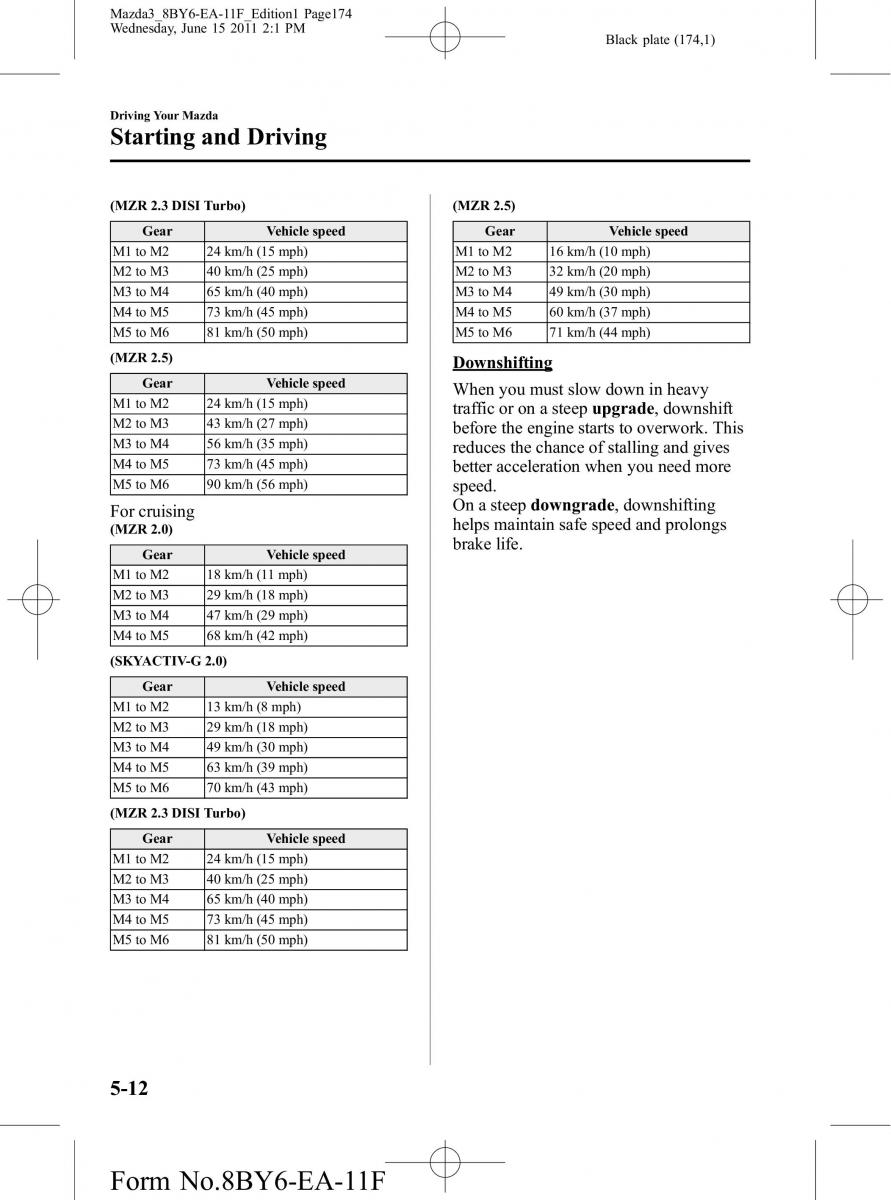

Mazda3_8BY6-EA-11F_Edition1 Page174
Wednesday, June 15 2011 2:1 PM
Black plate (174,1)
Driving Your Mazda
Starting and Driving
(MZR2.3DISITurbo) (MZR2.5)
Gear Vehicle speed Gear Vehicle speed
M1toM2 24km/h(15mph) M1toM2 16km/h(10mph)
M2toM3 40km/h(25mph) M2toM3 32km/h(20mph)
M3toM4 65km/h(40mph) M3toM4 49km/h(30mph)
M4toM5 73km/h(45mph) M4toM5 60km/h(37mph)
M5toM6 81km/h(50mph) M5toM6 71km/h(44mph)
(MZR2.5) Downshifting
Gear Vehicle speed Whenyoumustslowdowninheavy
M1toM2 24km/h(15mph) traffic or on a steep upgrade, downshift
M2toM3 43km/h(27mph) before the engine starts to overwork. This
M3toM4 56km/h(35mph) reduces the chance of stalling and gives
M4toM5 73km/h(45mph) better acceleration when you need more
M5toM6 90km/h(56mph) speed.
For cruising Onasteepdowngrade,downshifting
(MZR2.0) helps maintain safe speed and prolongs
Gear Vehicle speed brake life.
M1toM2 18km/h(11mph)
M2toM3 29km/h(18mph)
M3toM4 47km/h(29mph)
M4toM5 68km/h(42mph)
(SKYACTIV-G2.0)
Gear Vehicle speed
M1toM2 13km/h(8mph)
M2toM3 29km/h(18mph)
M3toM4 49km/h(30mph)
M4toM5 63km/h(39mph)
M5toM6 70km/h(43mph)
(MZR2.3DISITurbo)
Gear Vehicle speed
M1toM2 24km/h(15mph)
M2toM3 40km/h(25mph)
M3toM4 65km/h(40mph)
M4toM5 73km/h(45mph)
M5toM6 81km/h(50mph)
5-12
Form No.8BY6-EA-11F
