owners manual Volvo S80

owners manual Volvo S80 - year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 - volvo S80 II 2 owners manual EN

Document: pdf (12.78 MB) 326 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Volvo S80, year of production 2006 - 2015:

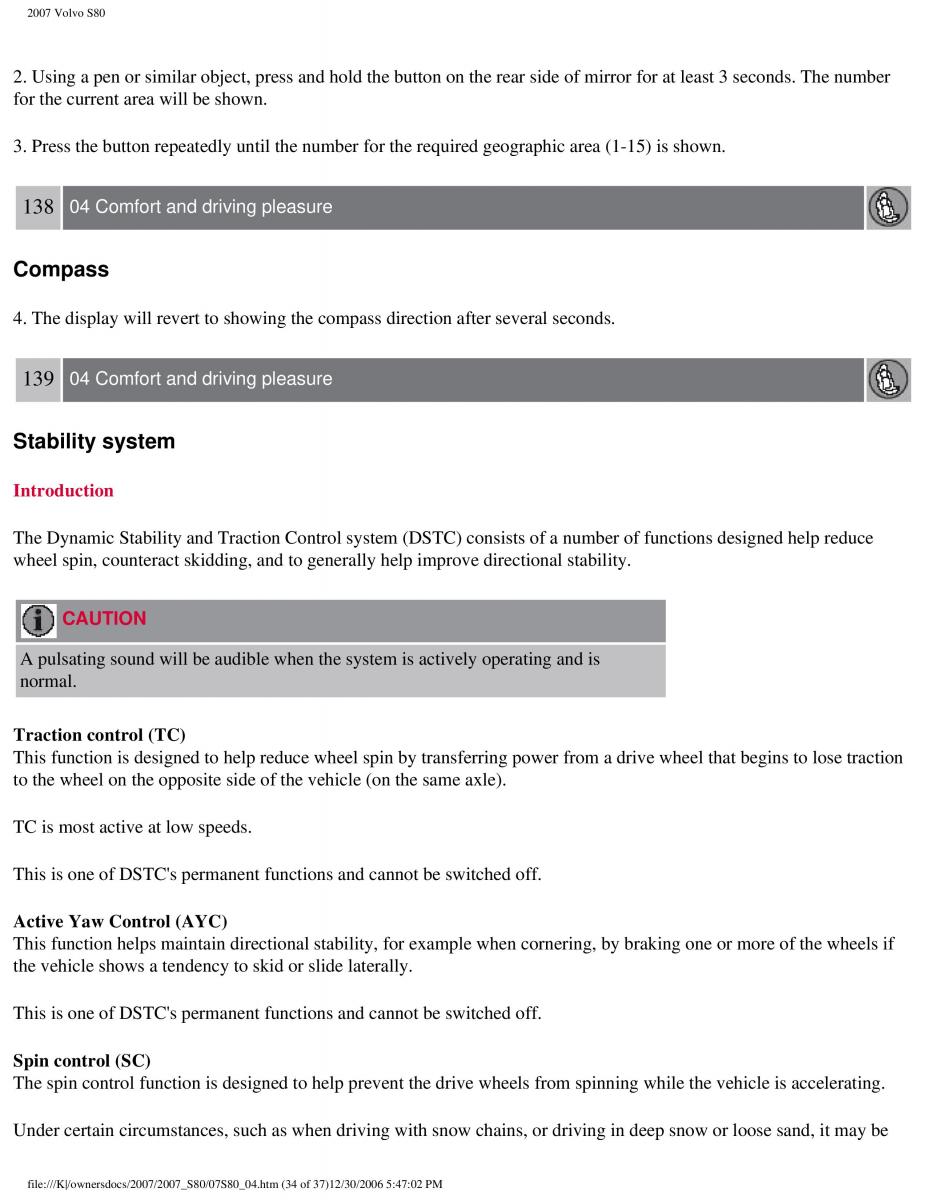

2007 Volvo S80 2. Using a pen or similar object, press and hold the button on the rear side of mirror for at least 3 seconds. The number for the current area will be shown. 3. Press the button repeatedly until the number for the required geographic area (1-15) is shown. 138 04 Comfort and driving pleasure Compass 4. The display will revert to showing the compass direction after several seconds. 139 04 Comfort and driving pleasure Stability system Introduction The Dynamic Stability and Traction Control system (DSTC) consists of a number of functions designed help reduce wheel spin, counteract skidding, and to generally help improve directional stability. CAUTION A pulsating sound will be audible when the system is actively operating and is normal. Traction control (TC) This function is designed to help reduce wheel spin by transferring power from a drive wheel that begins to lose traction to the wheel on the opposite side of the vehicle (on the same axle). TC is most active at low speeds. This is one of DSTC's permanent functions and cannot be switched off. Active Yaw Control (AYC) This function helps maintain directional stability, for example when cornering, by braking one or more of the wheels if the vehicle shows a tendency to skid or slide laterally. This is one of DSTC's permanent functions and cannot be switched off. Spin control (SC) The spin control function is designed to help prevent the drive wheels from spinning while the vehicle is accelerating. Under certain circumstances, such as when driving with snow chains, or driving in deep snow or loose sand, it may be file:///K|/ownersdocs/2007/2007_S80/07S80_04.htm (34 of 37)12/30/2006 5:47:02 PM
