text version of content this owner's manual page from owners manual to the vehicle Peugeot 5008, year of production 2009:

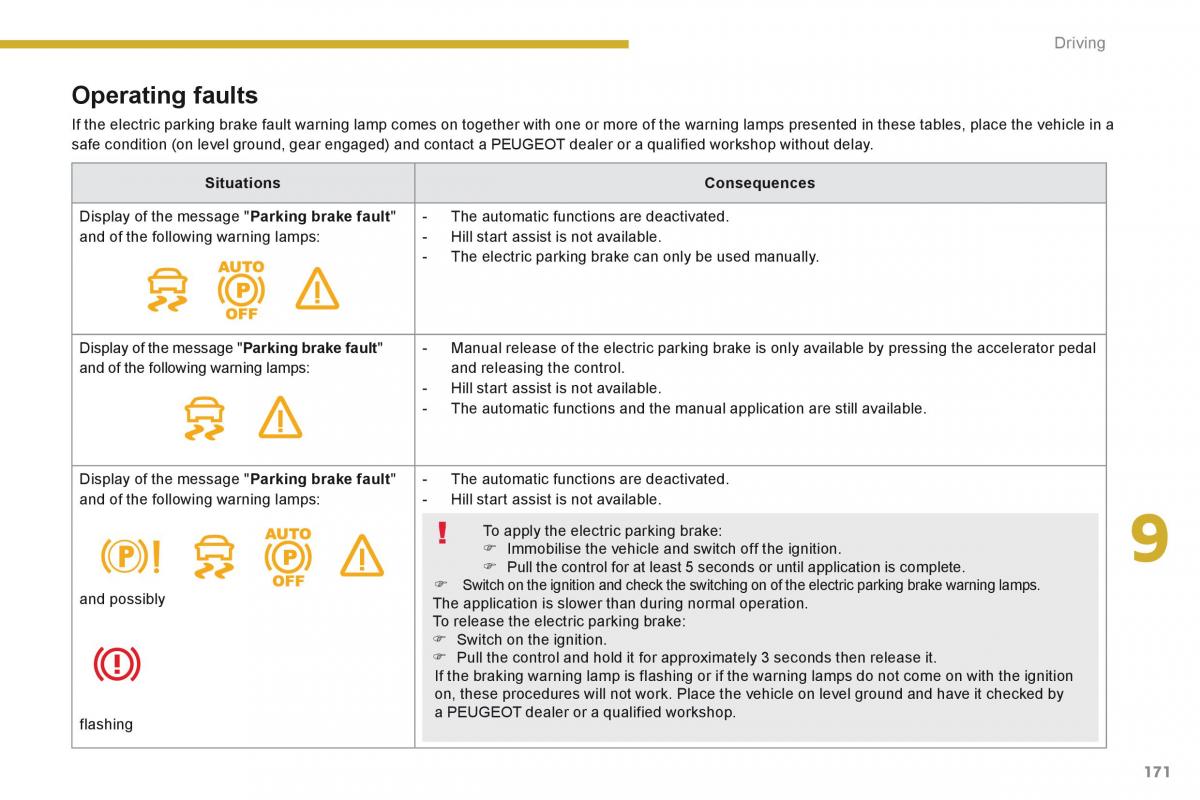

Driving O perating faults If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle in a safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay. Situations Consequences Display of the message " Parking brake fault " - The automatic functions are deactivated. and of the following warning lamps: - Hill start assist is not available. - The electric parking brake can only be used manually. Display of the message " Parking brake fault " - Manual release of the electric parking brake is only available by pressing the accelerator pedal and of the following warning lamps: and releasing the control. - Hill start assist is not available. - The automatic functions and the manual application are still available. Display of the message " Parking brake fault " - The automatic functions are deactivated. and of the following warning lamps: - Hill start assist is not available. To apply the electric parking brake:  Immobilise the vehicle and switch off the ignition.  Pull the control for at least 5 seconds or until application is complete. 9 and possibly  Switch on the ignition and check the switching on of the electric parking brake warning lamps. The application is slower than during normal operation. To release the electric parking brake:  Switch on the ignition.  Pull the control and hold it for approximately 3 seconds then release it. If the braking warning lamp is flashing or if the warning lamps do not come on with the ignition on, these procedures will not work. Place the vehicle on level ground and have it checked by flashing a PEUGEOT dealer or a qualified workshop. 171
