Safety

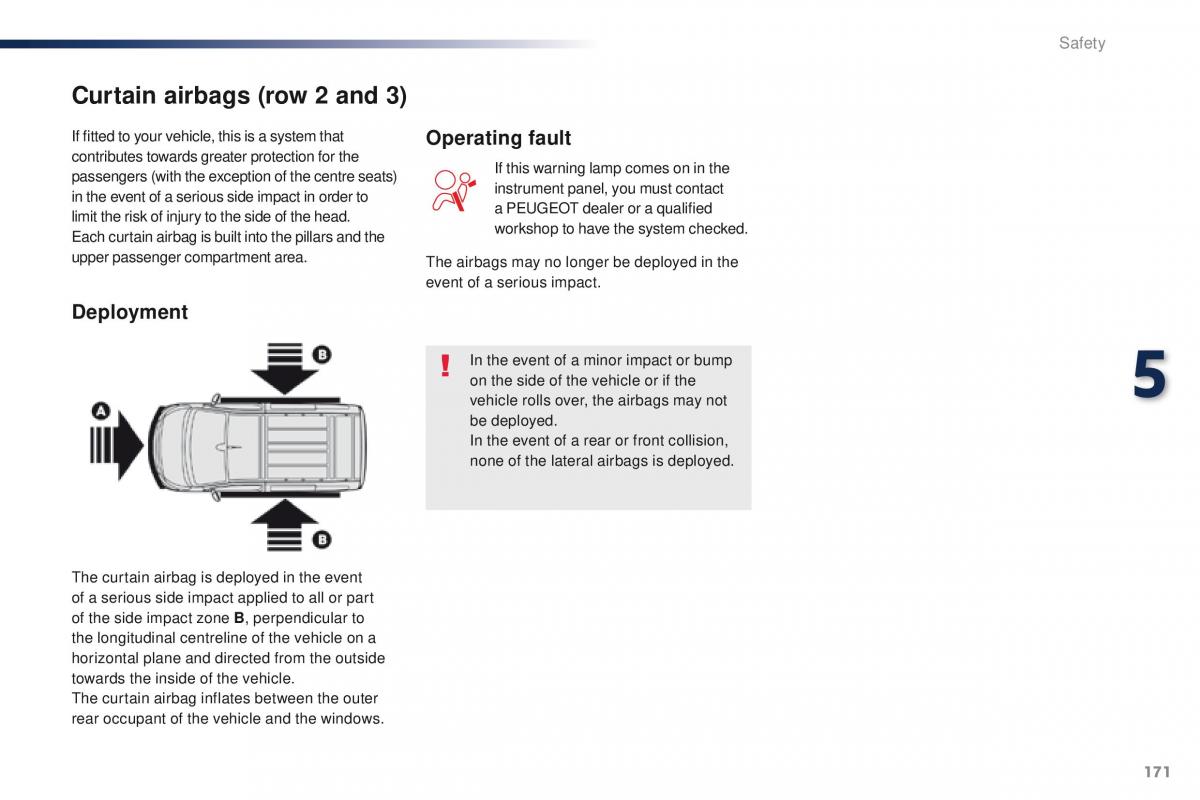

Curtain airbags (row 2 and 3)
If fitted to your vehicle, this is a system that Operating fault
contributes towards greater protection for the If this warning lamp comes on in the
passengers (with the exception of the centre seats) instrument panel, you must contact
in the event of a serious side impact in order to a PeugeoT dealer or a qualified
limit the risk of injury to the side of the head.workshop to have the system checked.
each curtain airbag is built into the pillars and the
upper passenger compartment area.The airbags may no longer be deployed in the
event of a serious impact.
Deployment
In the event of a minor impact or bump
on the side of the vehicle or if the 5
vehicle rolls over, the airbags may not
be deployed.
In the event of a rear or front collision,
none of the lateral airbags is deployed.
The curtain airbag is deployed in the event
of a serious side impact applied to all or part
of the side impact zone B, perpendicular to
the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the outer
rear occupant of the vehicle and the windows.
171
Traveller-VP_en_Chap05_securite_ed01-2016
