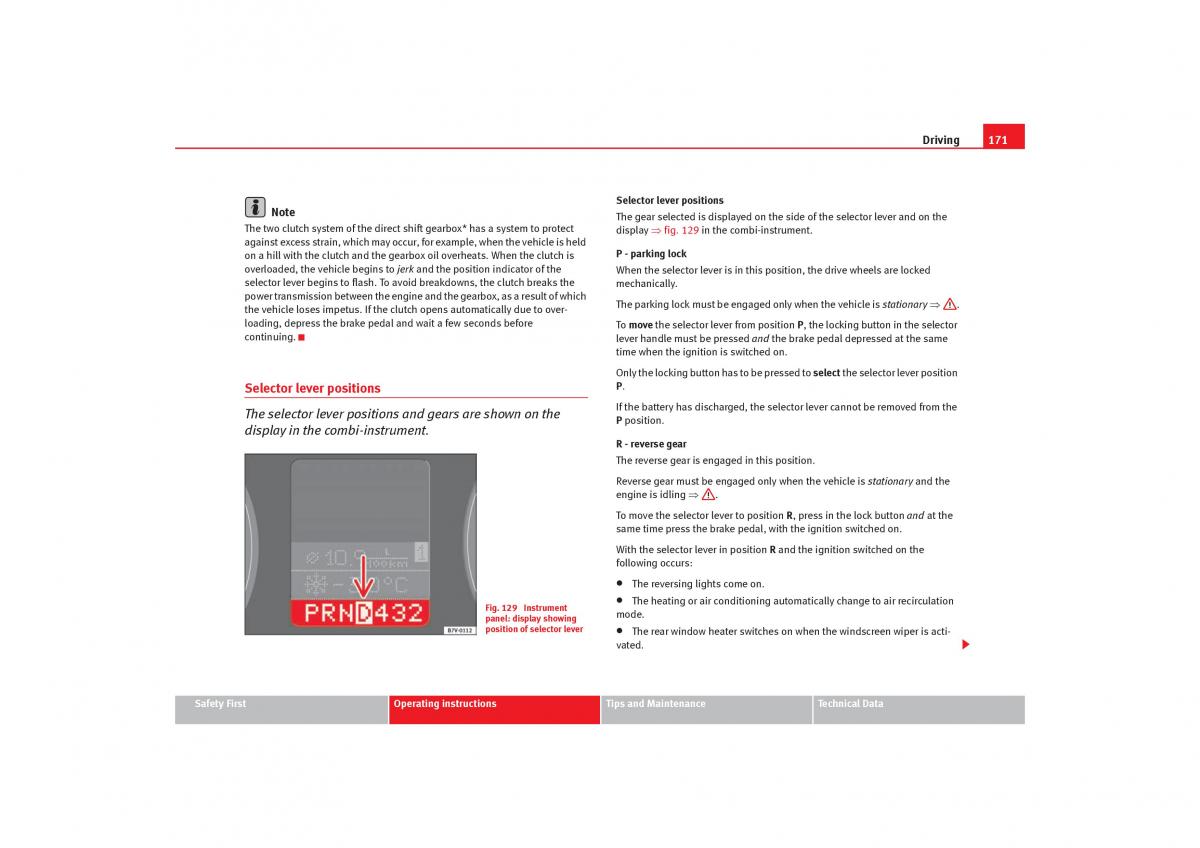

alhambra_aleman.book Seite 171 Montag, 23. M‰rz 2009 1:12 13 Driving 171 Selector lever positions Note The gear selected is displayed on the side of the selector lever and on the The two clutch system of the direct shift gearbox* has a system to protect display ⇒ fig. 129 in the combi-instrument. against excess strain, which may occur, for example, when the vehicle is held on a hill with the clutch and the gearbox oil overheats. When the clutch is P - parking lock overloaded, the vehicle begins to jerk and the position indicator of the When the selector lever is in this position, the drive wheels are locked selector lever begins to flash. To avoid breakdowns, the clutch breaks the mechanically. power transmission between the engine and the gearbox, as a result of which The parking lock must be engaged only when the vehicle is stationary ⇒. the vehicle loses impetus. If the clutch opens automatically due to over- loading, depress the brake pedal and wait a few seconds before To move the selector lever from position P, the locking button in the selector continuing. lever handle must be pressed and the brake pedal depressed at the same time when the ignition is switched on. Only the locking button has to be pressed to select the selector lever position Selector lever positions P. The selector lever positions and gears are shown on the If the battery has discharged, the selector lever cannot be removed from the display in the combi-instrument. P position. R - reverse gear The reverse gear is engaged in this position. Reverse gear must be engaged only when the vehicle is stationary and the engine is idling ⇒. To move the selector lever to position R, press in the lock button and at the same time press the brake pedal, with the ignition switched on. With the selector lever in position R and the ignition switched on the following occurs: • The reversing lights come on. Fig. 129 Instrument • The heating or air conditioning automatically change to air recirculation panel: display showing mode. position of selector lever• The rear window heater switches on when the windscreen wiper is acti- vated. Safety First Operating instructions Tips and Maintenance Technical Data
