owners manual Citroen DS5

owners manual Citroen DS5 - year of production: 2011 - Citroen DS5 owners manual EN

Document: pdf (34.16 MB) 372 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Citroen DS5, year of production 2011:

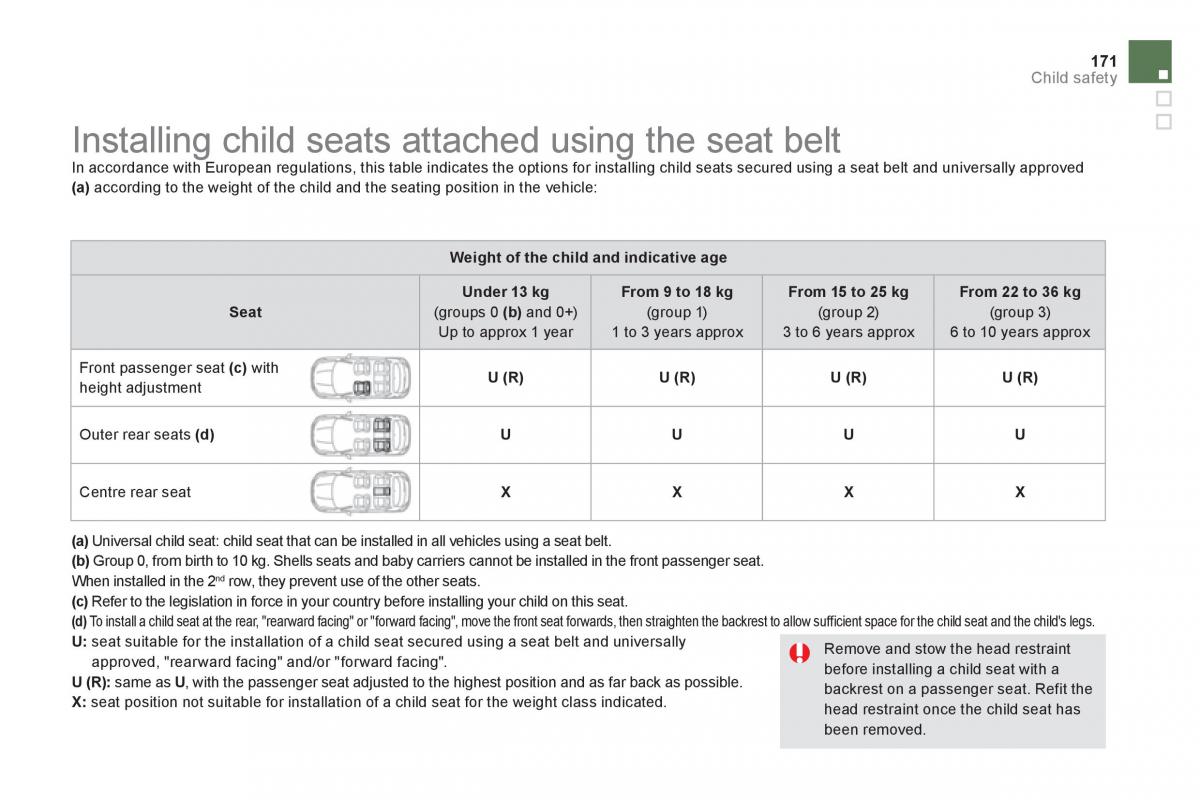

171 Child safety I nstalling child seats attached using the seat belt In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved (a) according to the weight of the child and the seating position in the vehicle: W eight of the child and indicative age U nder 13 kg F rom 9 to 18 kg F rom 15 to 25 kg F rom 22 to 36 kg Seat (groups 0 ( b ) and 0+) (group 1) (group 2) (group 3) Up to approx 1 year 1 to 3 years approx 3 to 6 years approx 6 to 10 years approx Front passenger seat ( c ) with U ( R) U ( R) U ( R) U ( R) height adjustment Outer rear seats (d) U U U U Centre rear seat X X X X (a) Universal child seat: child seat that can be installed in all vehicles using a seat belt. (b ) Group 0, from birth to 10 kg. Shells seats and baby carriers cannot be installed in the front passenger seat. nd When installed in the 2 row, they prevent use of the other seats. (c) Refer to the legislation in force in your country before installing your child on this seat. (d ) To install a child seat at the rear, "rearward facing" or "forward facing", move the front seat forwards, then straighten the backrest to allow sufficient space for the child seat and the child's legs. U: seat suitable for the installation of a child seat secured using a seat belt and universally Re move and stow the head restraint approved, "rearward facing" and/or "forward facing". before installing a child seat with a U ( R): same as U , with the passenger seat adjusted to the highest position and as far back as possible. backrest on a passenger seat. Refit the X: seat position not suitable for installation of a child seat for the weight class indicated. head restraint once the child seat has been removed.

Download PDF

Click here to download a pdf file with an instruction manual for Citroen DS5
year of production from: 2011

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Citroen DS5 owners manual
pages 170 - 176

Citroen DS5 owners manual
page 173 / 372
