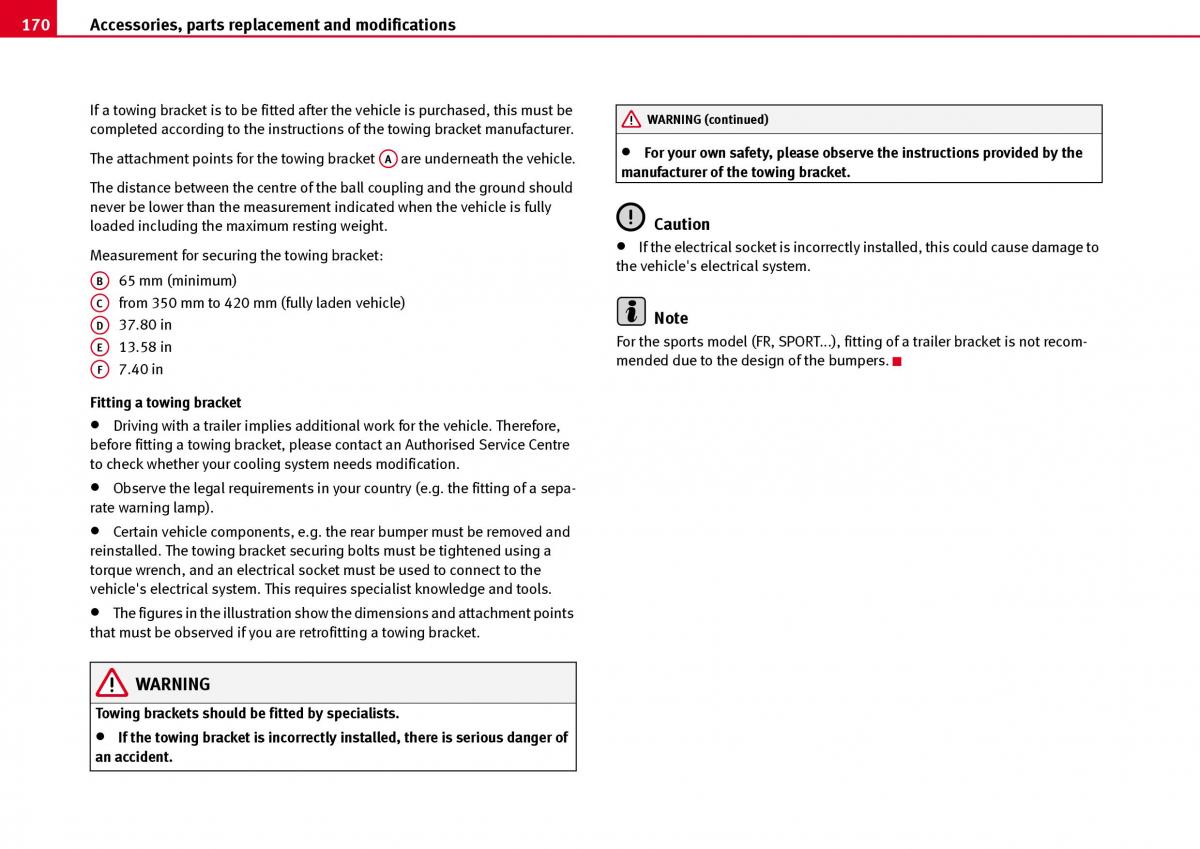

170 Accessories, parts replacement and modifications
If a towing bracket is to be fitted after the vehicle is purchased, this must be WARNING (continued)
completed according to the instructions of the towing bracket manufacturer.
The attachment points for the towing bracket A are underneath the vehicle.• For your own safety, please observe the instructions provided by the
A manufacturer of the towing bracket.
The distance between the centre of the ball coupling and the ground should
never be lower than the measurement indicated when the vehicle is fully
loaded including the maximum resting weight. Caution
Measurement for securing the towing bracket: • If the electrical socket is incorrectly installed, this could cause damage to
the vehicle's electrical system.
B
A65 mm (minimum)
C from 350 mm to 420 mm (fully laden vehicle)
A
D 37.80 in Note
A
E For the sports model (FR, SPORT.), fitting of a trailer bracket is not recom-
A13.58 in mended due to the design of the bumpers.
F 7.40 in
A
Fitting a towing bracket
• Driving with a trailer implies additional work for the vehicle. Therefore,
before fitting a towing bracket, please contact an Authorised Service Centre
to check whether your cooling system needs modification.
• Observe the legal requirements in your country (e.g. the fitting of a sepa-
rate warning lamp).
• Certain vehicle components, e.g. the rear bumper must be removed and
reinstalled. The towing bracket securing bolts must be tightened using a
torque wrench, and an electrical socket must be used to connect to the
vehicle's electrical system. This requires specialist knowledge and tools.
• The figures in the illustration show the dimensions and attachment points
that must be observed if you are retrofitting a towing bracket.
WARNING
Towing brackets should be fitted by specialists.
• If the towing bracket is incorrectly installed, there is serious danger of
an accident.
