text version of content this owner's manual page from owners manual to the vehicle VW EOS, year of production 2011 - 2014:

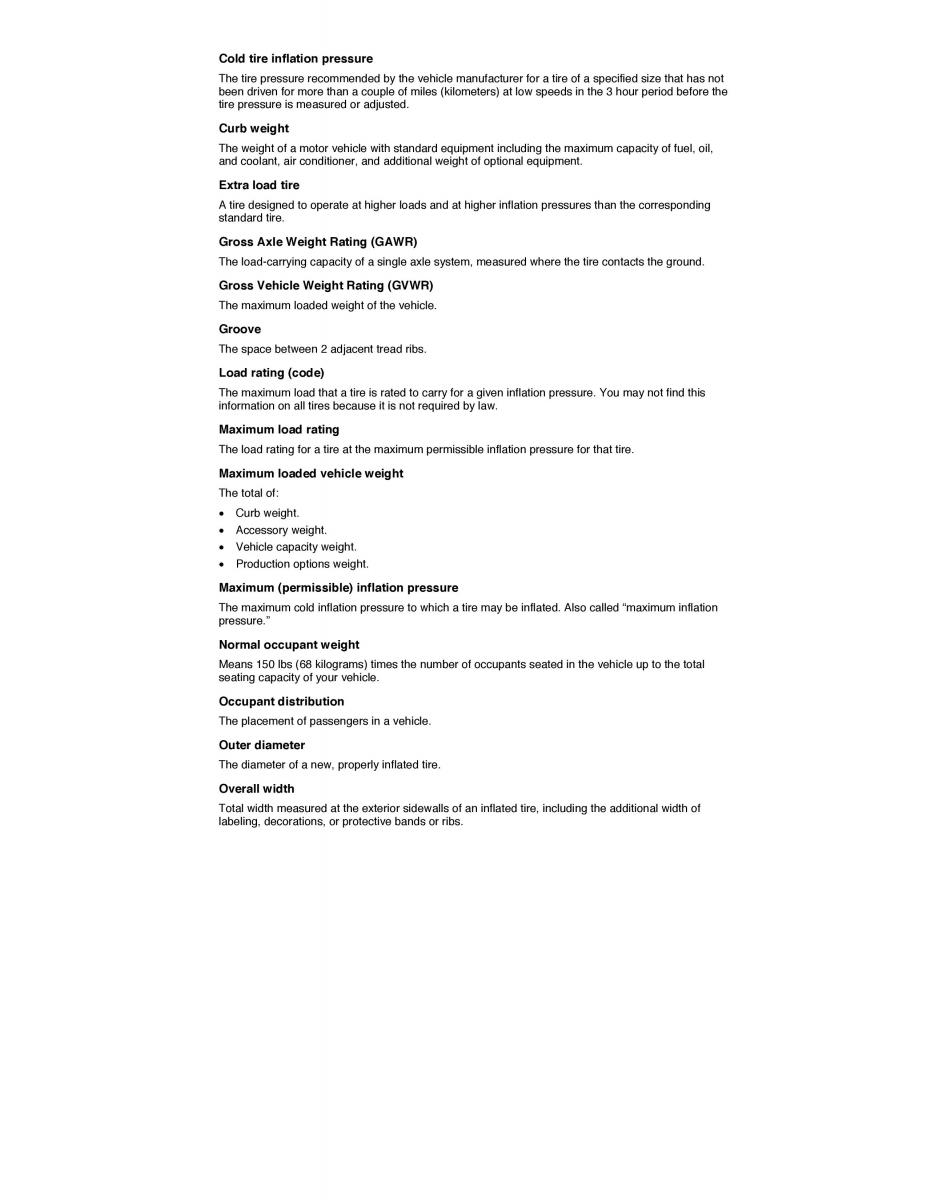

Cold tire inflation pressure The tire pressure recommended by the vehicle manufacturer for a tire of a specified size that has not been driven for more than a couple of miles (kilometers) at low speeds in the 3 hour period before the tire pressure is measured or adjusted. Curb weight The weight of a motor vehicle with standard equipment including the maximum capacity of fuel, oil, and coolant, air conditioner, and additional weight of optional equipment. Extra load tire A tire designed to operate at higher loads and at higher inflation pressures than the corresponding standard tire. Gross Axle Weight Rating (GAWR) The load-carrying capacity of a single axle system, measured where the tire contacts the ground. Gross Vehicle Weight Rating (GVWR) The maximum loaded weight of the vehicle. Groove The space between 2 adjacent tread ribs. Load rating (code) The maximum load that a tire is rated to carry for a given inflation pressure. You may not find this information on all tires because it is not required by law. Maximum load rating The load rating for a tire at the maximum permissible inflation pressure for that tire. Maximum loaded vehicle weight The total of: x Curb weight. x Accessory weight. x Vehicle capacity weight. x Production options weight. Maximum (permissible) inflation pressure The maximum cold inflation pressure to which a tire may be inflated. Also called “maximum inflation pressure.” Normal occupant weight Means 150 lbs (68 kilograms) times the number of occupants seated in the vehicle up to the total seating capacity of your vehicle. Occupant distribution The placement of passengers in a vehicle. Outer diameter The diameter of a new, properly inflated tire. Overall width Total width measured at the exterior sidewalls of an inflated tire, including the additional width of labeling, decorations, or protective bands or ribs.
