owners manual Toyota Auris Hybrid

all ratings: 0 average rating: 5

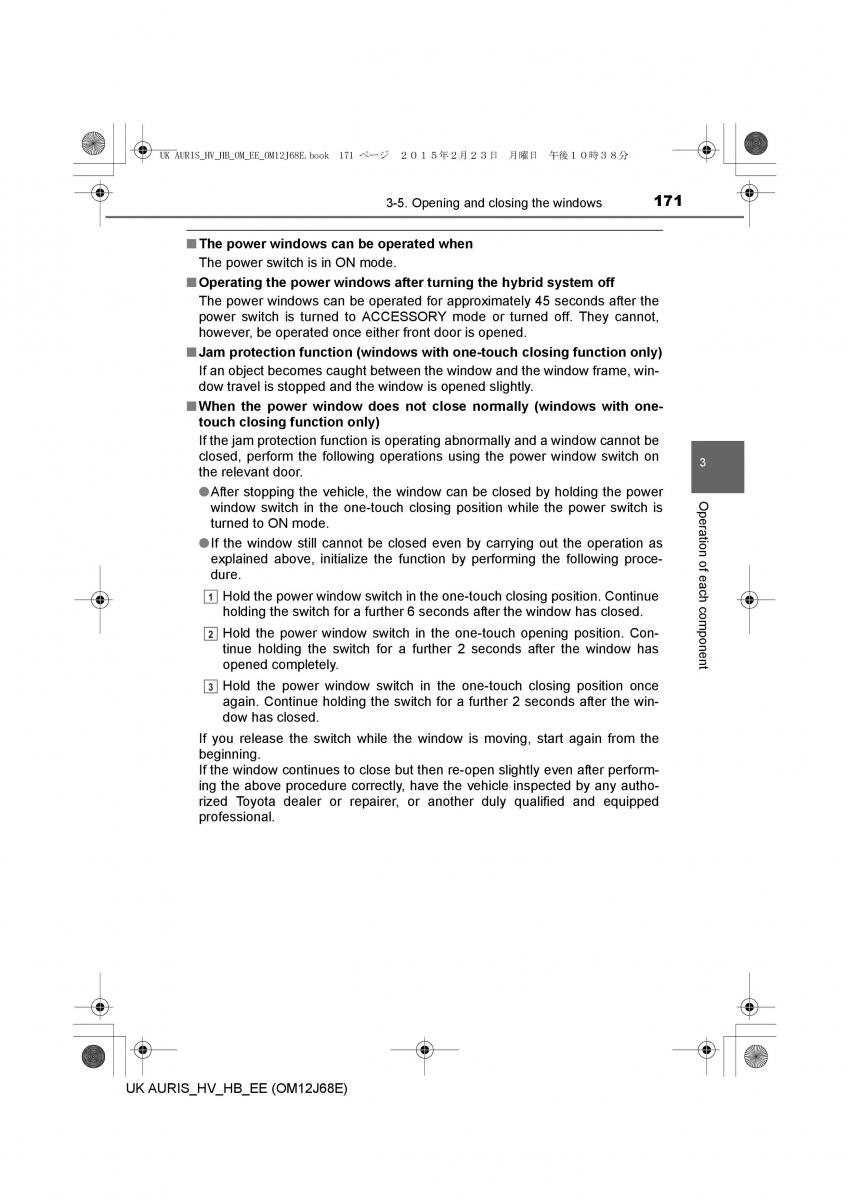

UK AURIS_HV_HB_OM_EE_OM12J68E.book 171 ページ 㧞㧜㧝５年㧞月㧞㧟日　月曜日　午後㧝㧜時㧟８分 3-5. Opening and closing the windows171 ■The power windows can be operated when The power switch is in ON mode. ■Operating the power windows after turning the hybrid system off The power windows can be operated for approximately 45 seconds after the power switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened. ■Jam protection function (windows with one-touch closing function only) If an object becomes caught between the window and the window frame, win- dow travel is stopped and the window is opened slightly. ■When the power window does not close normally (windows with one- touch closing function only) If the jam protection function is operating abnormally and a window cannot be closed, perform the following operations using the power window switch on the relevant door. 3 ●After stopping the vehicle, the window can be closed by holding the powerO p window switch in the one-touch closing position while the power switch is e turned to ON mode. r ati on ●If the window still cannot be closed even by carrying out the operation as explained above, initialize the function by performing the following proce- of e dure. a c 1 Hold the power window switch in the one-touch closing position. Continueh c holding the switch for a further 6 seconds after the window has closed.o m pon 2 Hold the power window switch in the one-touch opening position. Con- ent tinue holding the switch for a further 2 seconds after the window has opened completely. 3 Hold the power window switch in the one-touch closing position once again. Continue holding the switch for a further 2 seconds after the win- dow has closed. If you release the switch while the window is moving, start again from the beginning. If the window continues to close but then re-open slightly even after perform- ing the above procedure correctly, have the vehicle inspected by any autho- rized Toyota dealer or repairer, or another duly qualified and equipped professional. UK AURIS_HV_HB_EE (OM12J68E)
