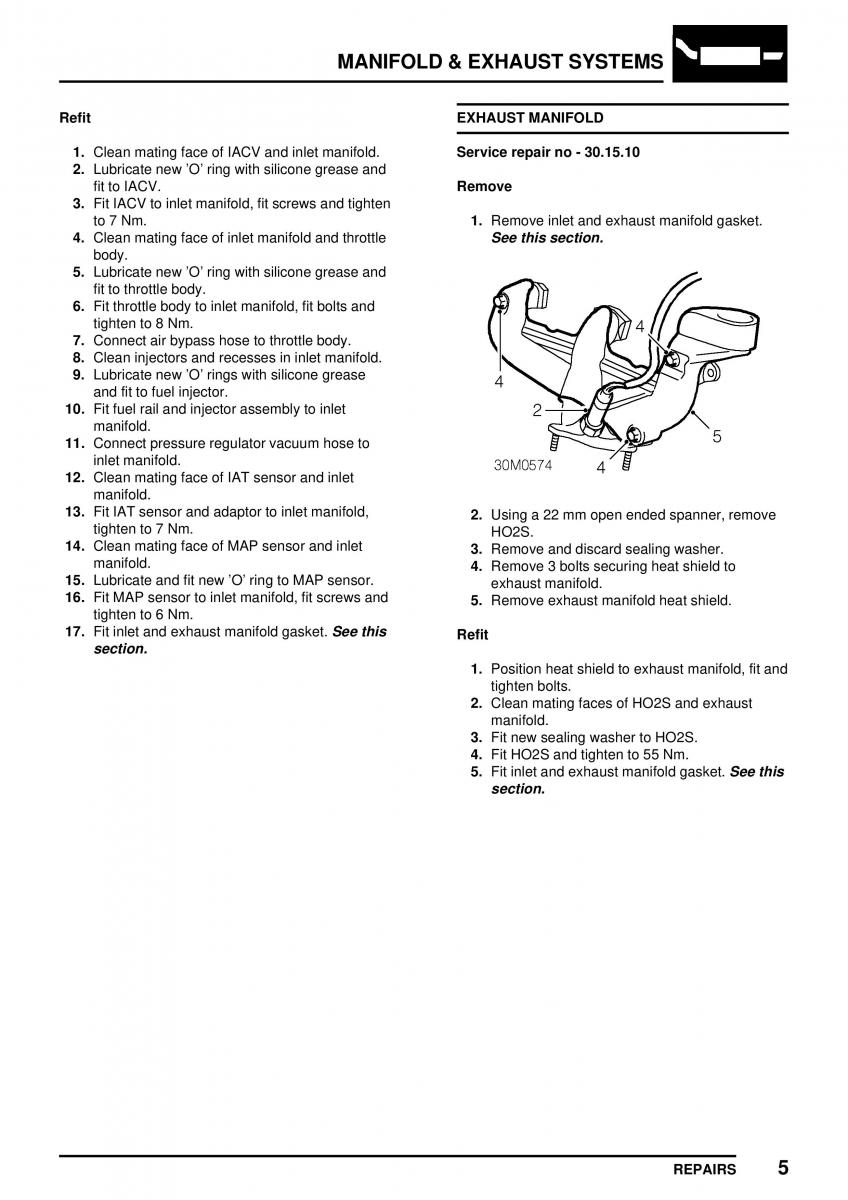

MANIFOLD&EXHAUSTSYSTEMS
Refit EXHAUSTMANIFOLD
1. Clean mating face of IACV and inlet manifold.Service repair no - 30.15.10
2. Lubricate new ’O’ ring with silicone grease and
fit to IACV. Remove
3. Fit IACV to inlet manifold, fit screws and tighten
to 7 Nm. 1. Removeinlet and exhaust manifold gasket.
4. Clean mating face of inlet manifold and throttleSeethissection.
body.
5. Lubricate new ’O’ ring with silicone grease and
fit to throttle body.
6. Fit throttle body to inlet manifold, fit bolts and
tighten to 8 Nm.
7. Connect air bypass hose to throttle body.
8. Clean injectors and recesses in inlet manifold.
9. Lubricate new ’O’ rings with silicone grease
andfit to fuel injector.
10. Fit fuel rail and injector assembly to inlet
manifold.
11. Connect pressure regulator vacuum hose to
inlet manifold.
12. Clean mating face of IAT sensor and inlet
manifold.
13. Fit IAT sensor and adaptor to inlet manifold,2. Using a 22 mm open ended spanner, remove
tighten to 7 Nm. HO2S.
14. Clean mating face of MAP sensor and inlet3. Removeanddiscardsealingwasher.
manifold. 4. Remove3boltssecuringheatshield to
15. Lubricate and fit new ’O’ ring to MAP sensor.exhaust manifold.
16. Fit MAP sensor to inlet manifold, fit screws and5. Removeexhaustmanifoldheatshield.
tighten to 6 Nm.
17. Fit inlet and exhaust manifold gasket. See thisRefit
section.
1. Position heat shield to exhaust manifold, fit and
tighten bolts.
2. Clean mating faces of HO2S and exhaust
manifold.
3. Fit new sealing washer to HO2S.
4. Fit HO2S and tighten to 55 Nm.
5. Fit inlet and exhaust manifold gasket. See this
section.
REPAIRS 5
