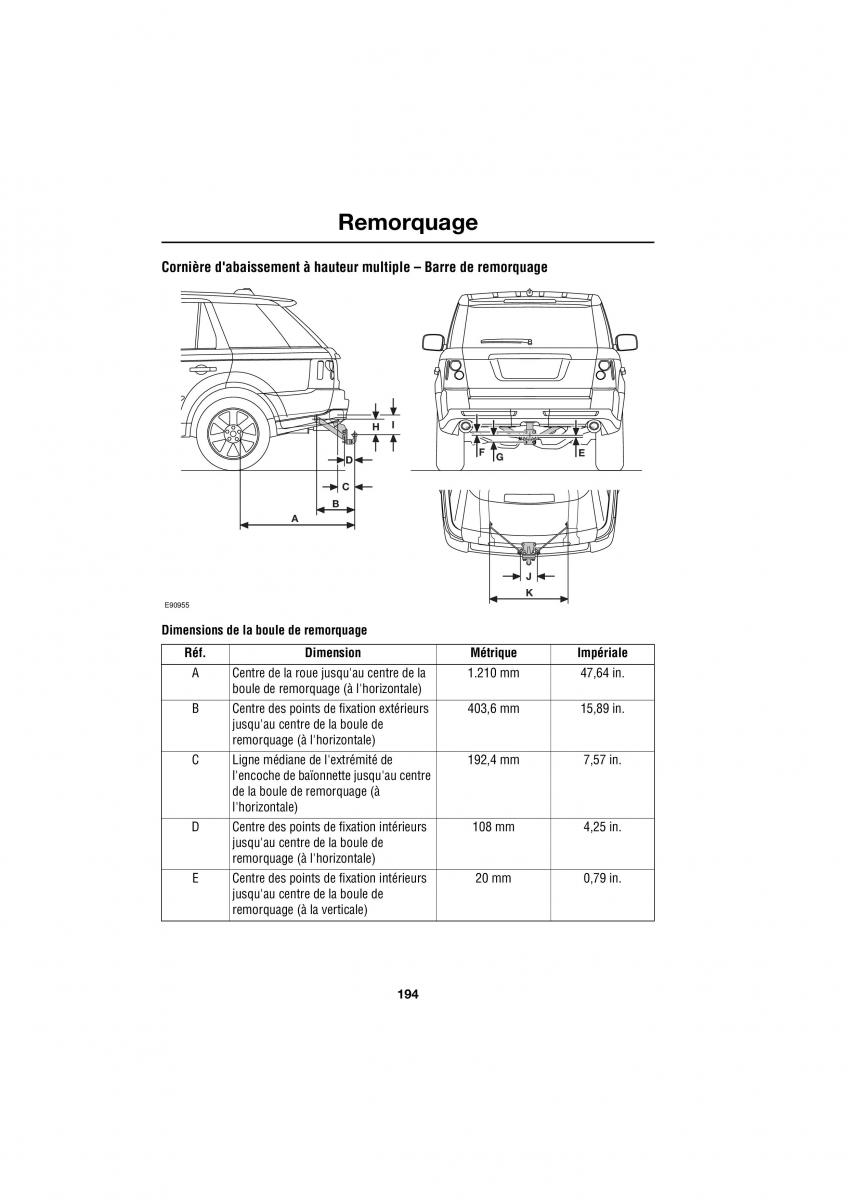

Remorquage
Cornière d'abaissement à hauteur multiple – Barre de remorquage
H I
F F G E E
D
C
B
A
J
K
E90955
Dimensions de la boule de remorquage
Réf. Dimension Métrique Impériale
A Centre de la roue jusqu'au centre de la 1.210 mm 47,64 in.
boule de remorquage (à l'horizontale)
B Centre des points de fixation extérieurs 403,6 mm 15,89 in.
jusqu'au centre de la boule de
remorquage (à l'horizontale)
C Ligne médiane de l'extrémité de 192,4 mm 7,57 in.
l'encoche de baïonnette jusqu'au centre
de la boule de remorquage (à
l'horizontale)
D Centre des points de fixation intérieurs 108 mm 4,25 in.
jusqu'au centre de la boule de
remorquage (à l'horizontale)
E Centre des points de fixation intérieurs 20 mm 0,79 in.
jusqu'au centre de la boule de
remorquage (à la verticale)
194
