text version of content this owner's manual page from owners manual to the vehicle Mercedes SLK, year of production 2004 - 2011:

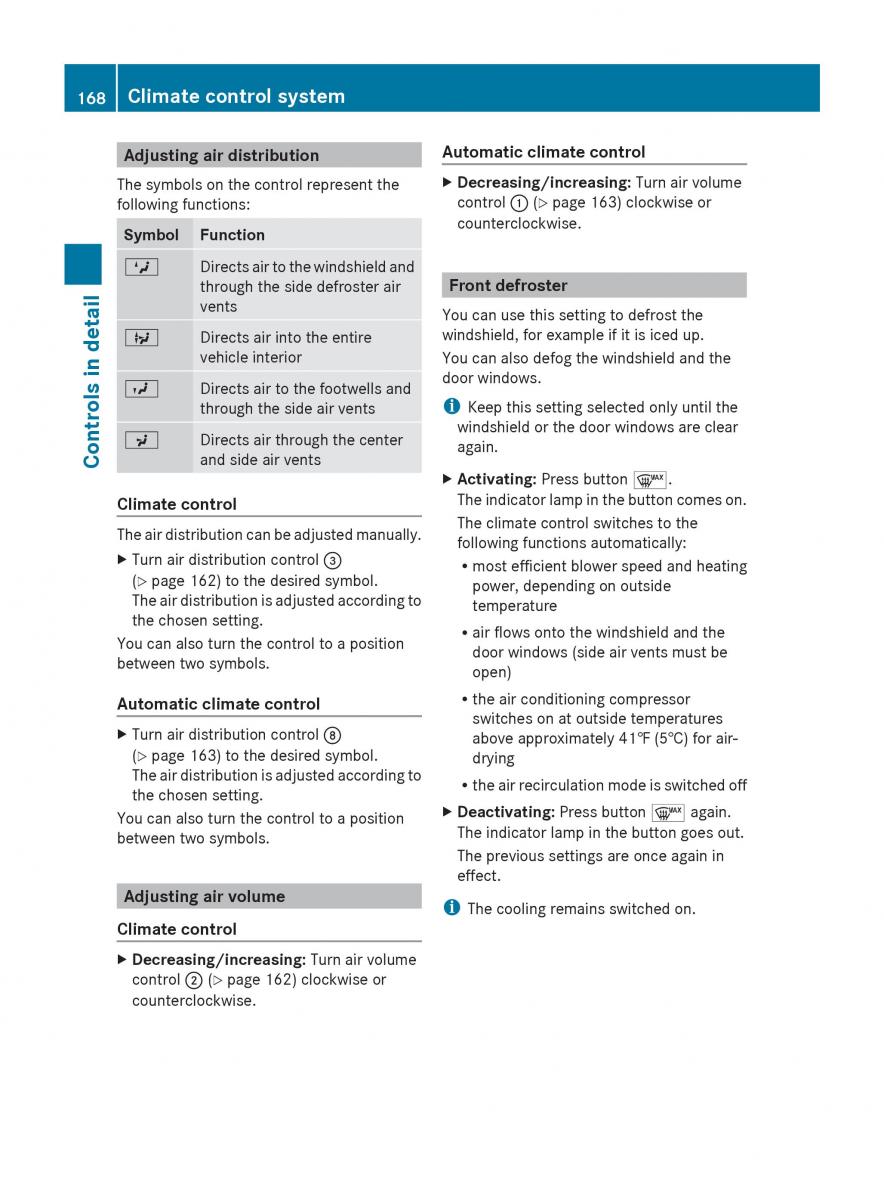

171_AKB; 3; 60, en-US 2009-05-11T16:00:23+02:00 - Seite 168 d2ureepe, Version: 2.11.8.1 168 Climate control system Automatic climate control Adjusting air distribution XDecreasing/increasing: Turn air volume The symbols on the control represent the following functions: control : (Y page 163) clockwise or counterclockwise. Symbol Function M Directs air to the windshield and through the side defroster airFront defroster vents You can use this setting to defrost the windshield, for example if it is iced up. Q Directs air into the entire vehicle interior You can also defog the windshield and the door windows. O Directs air to the footwells and iKeep this setting selected only until the through the side air vents windshield or the door windows are clear P Directs air through the center again. and side air vents Controls in detail XActivating: Press button ¬. The indicator lamp in the button comes on. Climate control The climate control switches to the The air distribution can be adjusted manually. following functions automatically: XTurn air distribution control = R most efficient blower speed and heating (Y page 162) to the desired symbol. power, depending on outside The air distribution is adjusted according to temperature the chosen setting. R air flows onto the windshield and the You can also turn the control to a position door windows (side air vents must be between two symbols. open) R the air conditioning compressor Automatic climate control switches on at outside temperatures XTurn air distribution control D above approximately 41‡ (5†) for air- (Y page 163) to the desired symbol. drying The air distribution is adjusted according to R the air recirculation mode is switched off the chosen setting. XDeactivating: Press button ¬ again. You can also turn the control to a position The indicator lamp in the button goes out. between two symbols. The previous settings are once again in effect. Adjusting air volume iThe cooling remains switched on. Climate control XDecreasing/increasing: Turn air volume control ; (Y page 162) clockwise or counterclockwise.
