owners manual Ford Ranger

all ratings: 0 average rating: 5

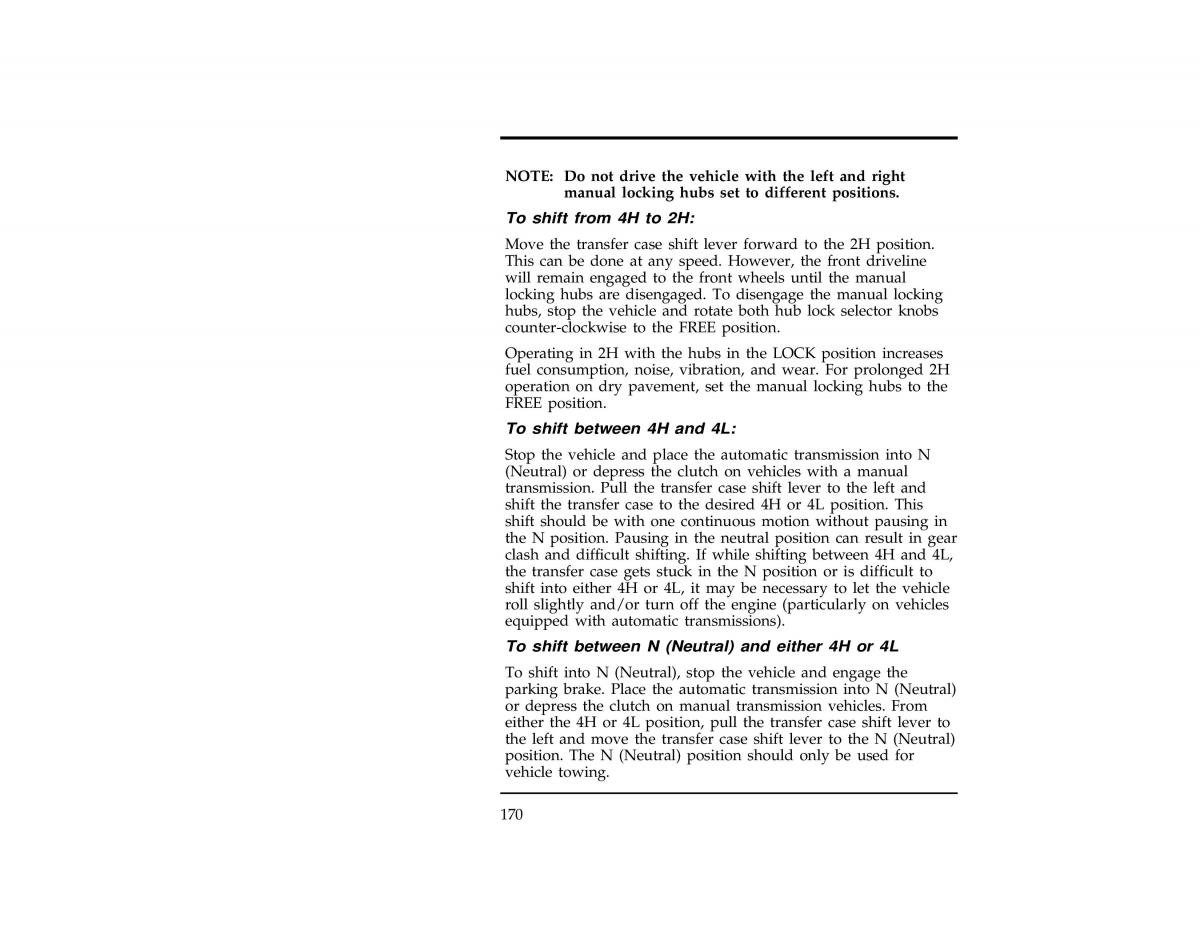

File:10undrr.ex Update:Wed May 1 13:52:06 1996 [DR17180(R )08/94] NOTE: Do not drive the vehicle with the left and right manual locking hubs set to different positions. *[DR17210(R )06/94] To shift from 4H to 2H: *[DR17240(R )06/94] Move the transfer case shift lever forward to the 2H position. This can be done at any speed. However, the front driveline will remain engaged to the front wheels until the manual locking hubs are disengaged. To disengage the manual locking hubs, stop the vehicle and rotate both hub lock selector knobs counter-clockwise to the FREE position. *[DR17270(R )06/94] Operating in 2H with the hubs in the LOCK position increases fuel consumption, noise, vibration, and wear. For prolonged 2H operation on dry pavement, set the manual locking hubs to the FREE position. *[DR17301(R )06/94] To shift between 4H and 4L: [DR17360(R )01/95] Stop the vehicle and place the automatic transmission into N (Neutral) or depress the clutch on vehicles with a manual transmission. Pull the transfer case shift lever to the left and shift the transfer case to the desired 4H or 4L position. This shift should be with one continuous motion without pausing in the N position. Pausing in the neutral position can result in gear clash and difficult shifting. If while shifting between 4H and 4L, the transfer case gets stuck in the N position or is difficult to shift into either 4H or 4L, it may be necessary to let the vehicle roll slightly and/or turn off the engine (particularly on vehicles equipped with automatic transmissions). [DR17390(R )01/95] To shift between N (Neutral) and either 4H or 4L [DR17450(R )01/95] To shift into N (Neutral), stop the vehicle and engage the parking brake. Place the automatic transmission into N (Neutral) or depress the clutch on manual transmission vehicles. From either the 4H or 4L position, pull the transfer case shift lever to the left and move the transfer case shift lever to the N (Neutral) position. The N (Neutral) position should only be used for vehicle towing. 170
