owners manual Mazda MX-5

owners manual Mazda MX-5 - year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 - Mazda MX 5 Miata NB II 2 owners manual EN

Document: pdf (7.11 MB) 257 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Mazda MX-5, year of production 1998 - 2005:

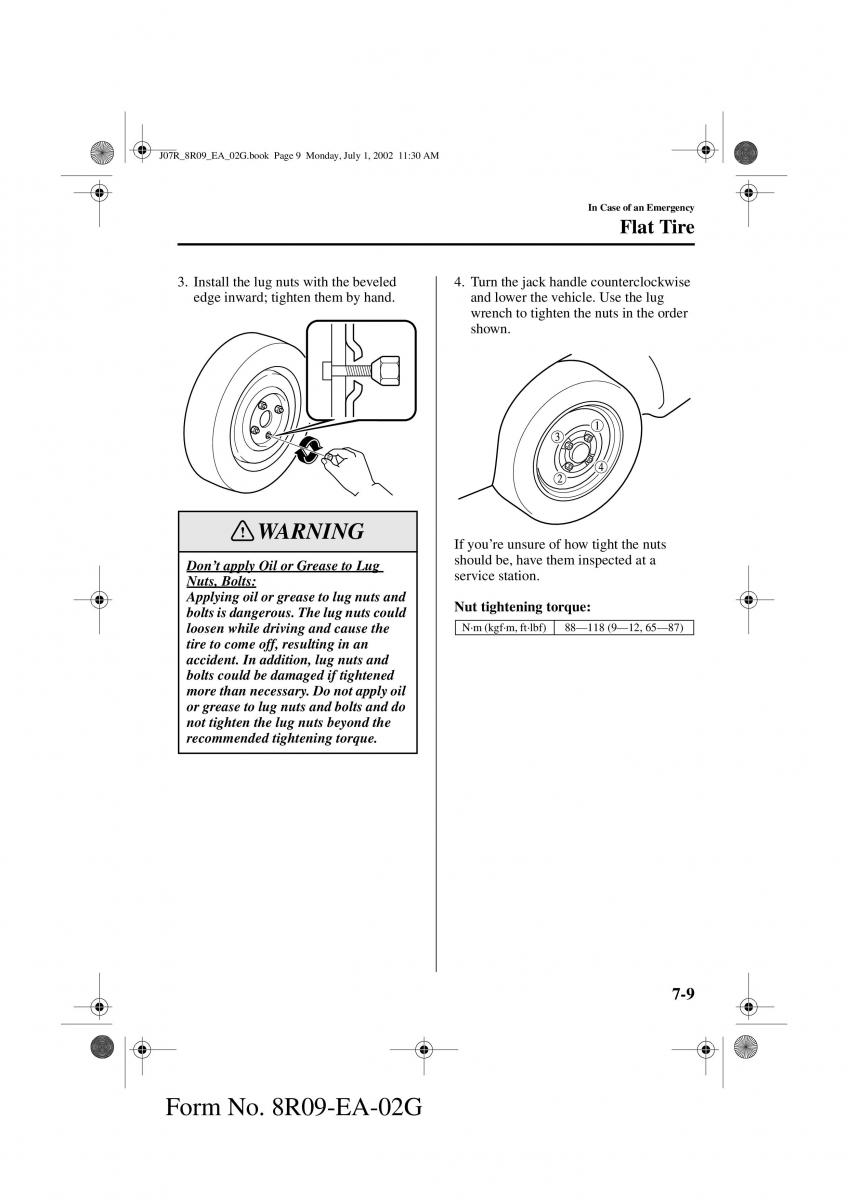

J07R_8R09_EA_02G.book Page 9 Monday, July 1, 2002 11:30 AM In Case of an Emergency Flat Tire 3. Install the lug nuts with the beveled 4. Turn the jack handle counterclockwise edge inward; tighten them by hand. and lower the vehicle. Use the lug wrench to tighten the nuts in the order shown. WARNING If you’re unsure of how tight the nuts Don’t apply Oil or Grease to Lug should be, have them inspected at a Nuts, Bolts: service station. Applying oil or grease to lug nuts and Nut tightening torque: bolts is dangerous. The lug nuts could loosen while driving and cause the N·m (kgf ·m, ft·lbf) 88—118 (9—12, 65—87) tire to come off, resulting in an accident. In addition, lug nuts and bolts could be damaged if tightened more than necessary. Do not apply oil or grease to lug nuts and bolts and do not tighten the lug nuts beyond the recommended tightening torque. 7-9 Form No. 8R09-EA-02G
