text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

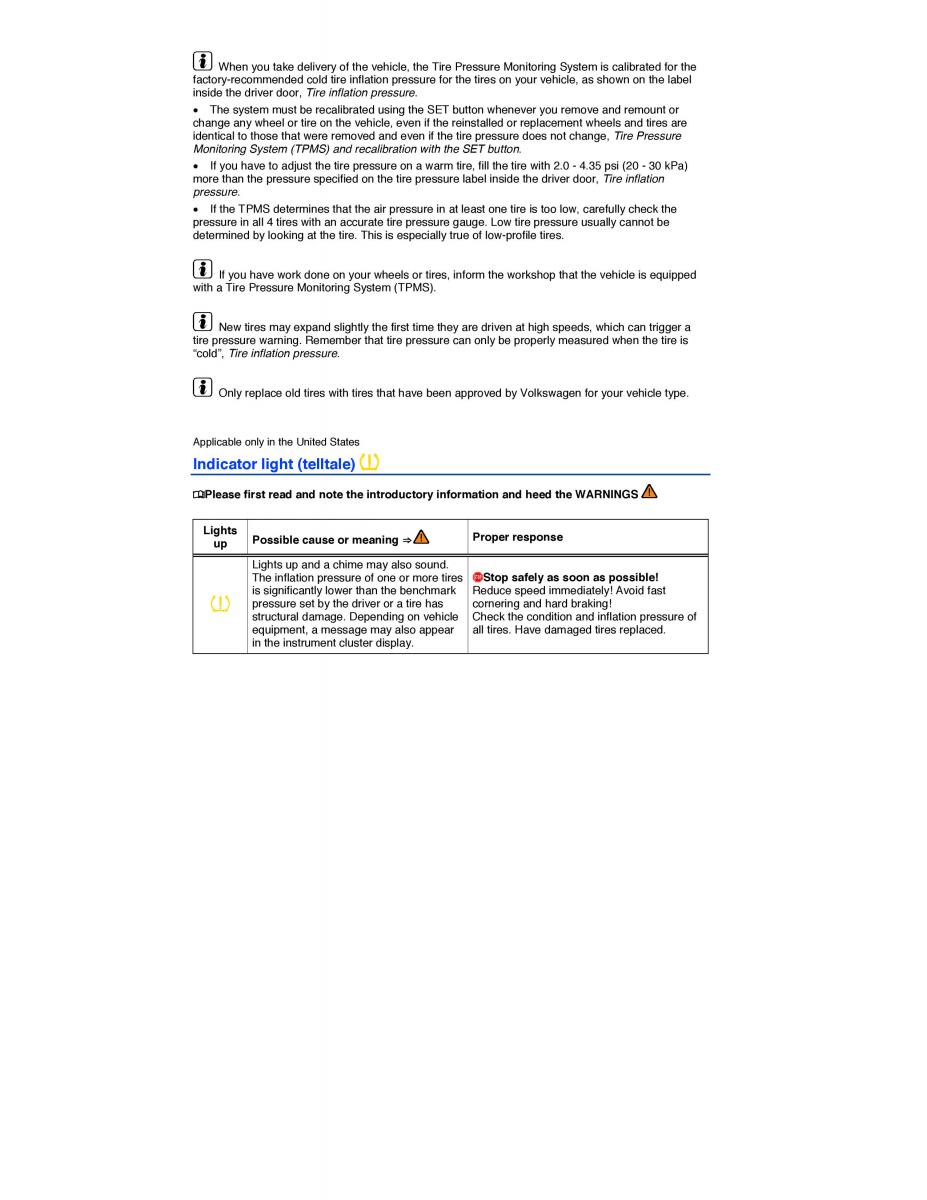

When you take delivery of the vehicle, the Tire Pressure Monitoring System is calibrated for the factory-recommended cold tire inflation pressure for the tires on your vehicle, as shown on the label inside the driver door, Tire inflation pressure. x The system must be recalibrated using the SET button whenever you remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change, Tire Pressure Monitoring System (TPMS) and recalibration with the SET button. x If you have to adjust the tire pressure on a warm tire, fill the tire with 2.0 - 4.35 psi (20 - 30 kPa) more than the pressure specified on the tire pressure label inside the driver door, Tire inflation pressure. x If the TPMS determines that the air pressure in at least one tire is too low, carefully check the pressure in all 4 tires with an accurate tire pressure gauge. Low tire pressure usually cannot be determined by looking at the tire. This is especially true of low-profile tires. If you have work done on your wheels or tires, inform the workshop that the vehicle is equipped with a Tire Pressure Monitoring System (TPMS). New tires may expand slightly the first time they are driven at high speeds, which can trigger a tire pressure warning. Remember that tire pressure can only be properly measured when the tire is “cold”, Tire inflation pressure. Only replace old tires with tires that have been approved by Volkswagen for your vehicle type. Applicable only in the United States Indicator light (telltale) ¤Please first read and note the introductory information and heed the WARNINGS Lights Possible cause or meaning ⇒ Proper response up Lights up and a chime may also sound. Stop safely as soon as possible! The inflation pressure of one or more tires is significantly lower than the benchmark Reduce speed immediately! Avoid fast pressure set by the driver or a tire has cornering and hard braking! structural damage. Depending on vehicle Check the condition and inflation pressure of equipment, a message may also appear all tires. Have damaged tires replaced. in the instrument cluster display.
