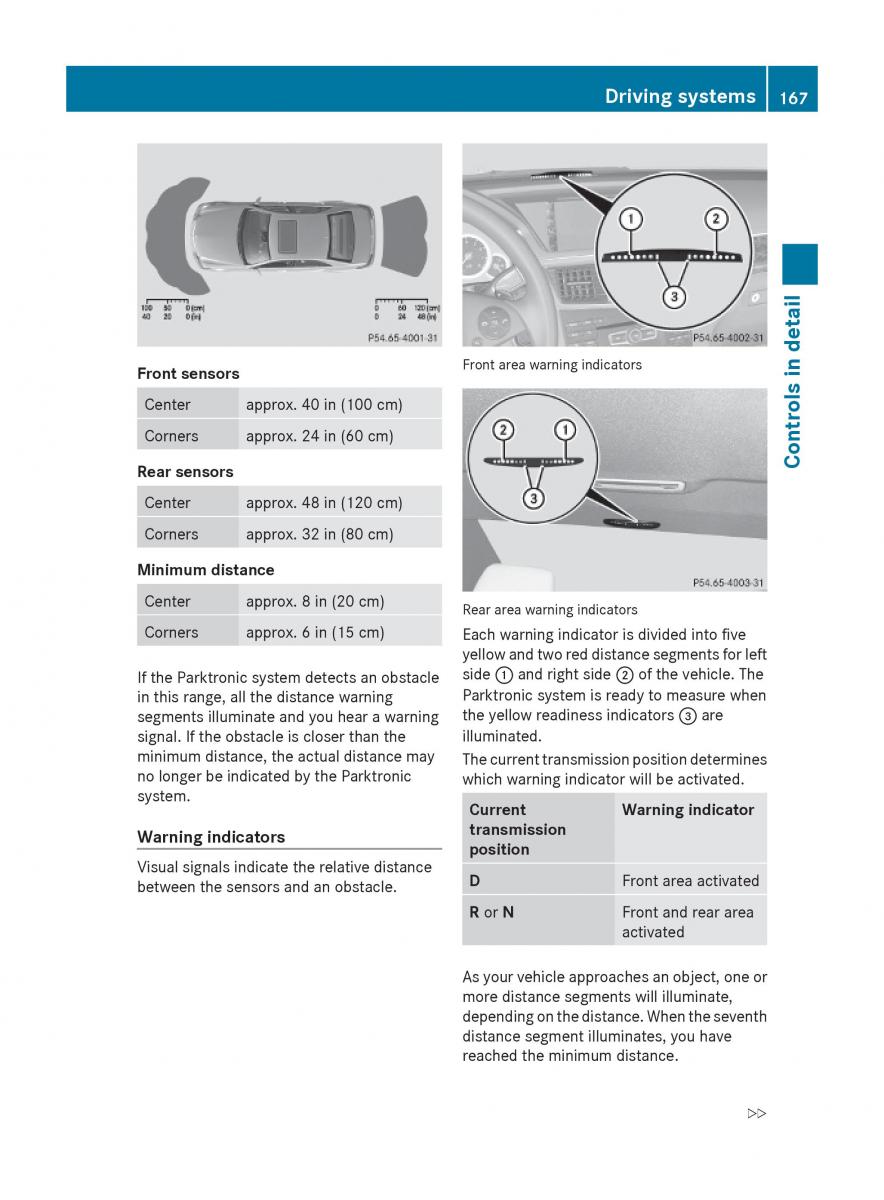

212_AKB; 2; 41, en-US 2009-07-17T09:14:21+02:00 - Seite 167
d2ureepe, Version: 2.11.8.1
Driving systems 167
Front area warning indicators
Front sensors
Center approx. 40 in (100 cm)
Corners approx. 24 in (60 cm)
Controls in detail
Rear sensors
Center approx. 48 in (120 cm)
Corners approx. 32 in (80 cm)
Minimum distance
Center approx. 8 in (20 cm)
Rear area warning indicators
Corners approx. 6 in (15 cm)
Each warning indicator is divided into five
yellow and two red distance segments for left
side : and right side ; of the vehicle. The
If the Parktronic system detects an obstacle
Parktronic system is ready to measure when
in this range, all the distance warning
the yellow readiness indicators = are
segments illuminate and you hear a warning
signal. If the obstacle is closer than theilluminated.
minimum distance, the actual distance may
The current transmission position determines
no longer be indicated by the Parktronic
which warning indicator will be activated.
system.
Current Warning indicator
transmission
Warning indicators
position
Visual signals indicate the relative distance
D Front area activated
between the sensors and an obstacle.
R or N Front and rear area
activated
As your vehicle approaches an object, one or
more distance segments will illuminate,
depending on the distance. When the seventh
distance segment illuminates, you have
reached the minimum distance.
