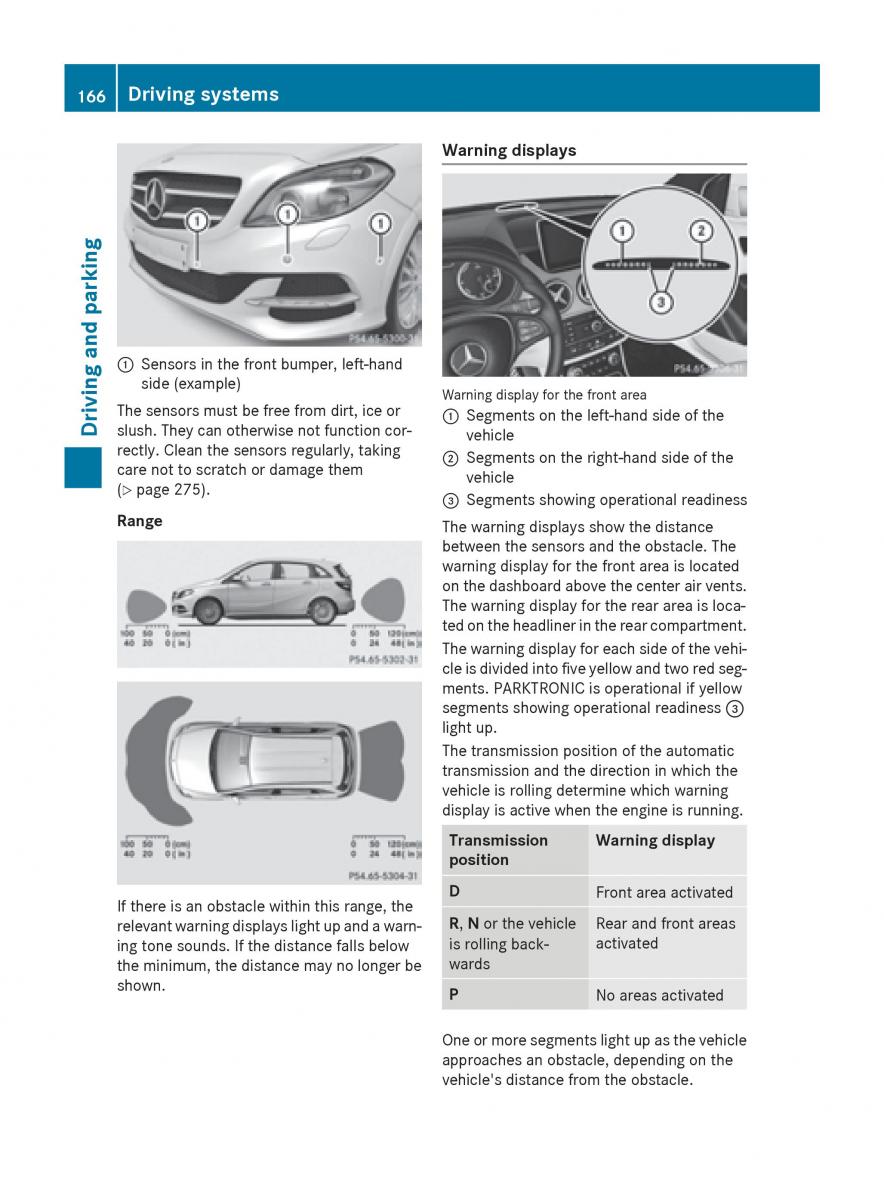

166 Driving systems
Warningdisplays
g
parkin
and
:Sensorsinthefrontbumper,left-hand
ng side (example)
Warning display for the front area
vi
The sensors must be free from dirt, ice or
:Segmentsontheleft-handsideofthe
Drislush. They can otherwise not function cor-
vehicle
rectly. Clean the sensors regularly, taking
;Segmentsontheright-handsideofthe
care not to scratch or damage them
vehicle
(Y page 275).
=Segmentsshowingoperationalreadiness
Range
The warning displays show the distance
between the sensors and the obstacle. The
warning display for the front area is located
onthedashboardabovethecenterairvents.
The warning display for the rear area is loca-
tedontheheadlinerintherearcompartment.
Thewarningdisplayforeachsideofthevehi-
cleisdividedintofiveyellowandtworedseg-
ments. PARKTRONIC is operational if yellow
segments showing operational readiness =
light up.
The transmission position of the automatic
transmission and the direction in which the
vehicle is rolling determine which warning
display is active when the engine is running.
TransmissionWarningdisplay
position
D Front area activated
If there is an obstacle within this range, the
R, N or the vehicleRear and front areas
relevantwarningdisplayslightupandawarn-
is rolling back-activated
ing tone sounds. If the distance falls below
the minimum, the distance may no longer bewards
shown.
P Noareasactivated
Oneormoresegmentslightupasthevehicle
approaches an obstacle, depending on the
vehicle's distance from the obstacle.
