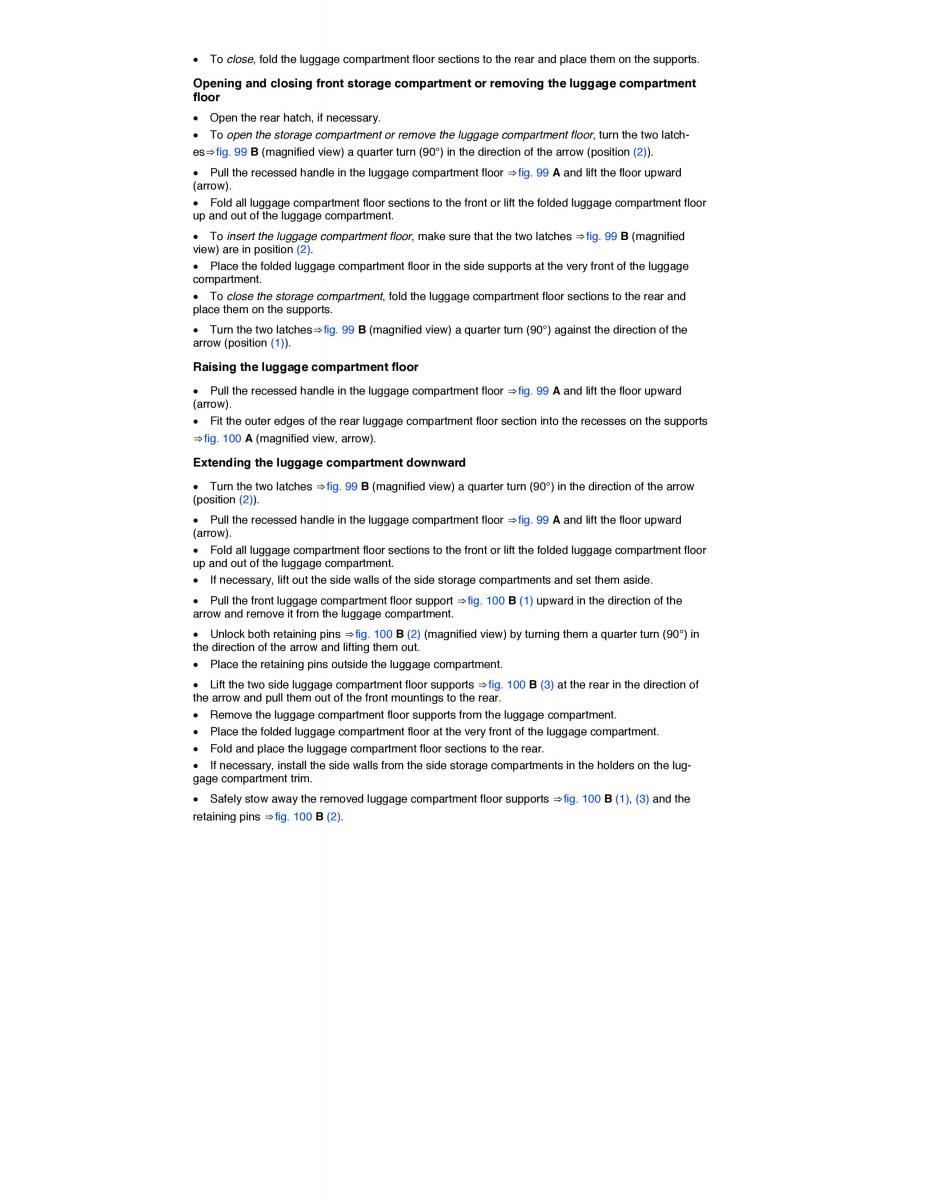

x Tocl ose, fold the luggage compartment floor sections to the rear and place them on the supports. Opening and closing front storage compartment or removing the luggage compartment floor x Open the rear hatch, if necessary. x Toop en the storage compartment or remove the luggage compartment floor, turn the two latch- es⇒ fig. 99 B (magnified view) a quarter turn (90°) in the direction of the arrow (position (2)). x Pull the recessed handle in the luggage compartment floo⇒ r fig. 99 A and lift the floor upward (arrow). x Fold all luggage compartment floor sections to the front or lift the folded luggage compartment floor up and out of the luggage compartment. x Toin sert the luggage compartment floor, make sure that the two latches ⇒ fig. 99 B (magnified view) are in position (2). x Place the folded luggage compartment floor in the side supports at the very front of the luggage compartment. x Tocl ose the storage compartment, fold the luggage compartment floor sections to the rear and place them on the supports. x Turn the two latche⇒ sfig. 99 B (magnified view) a quarter turn (90°) against the direction of the arrow (position (1)). Raising the luggage compartment floor x Pull the recessed handle in the luggage compartment floo⇒ r fig. 99 A and lift the floor upward (arrow). x Fit the outer edges of the rear luggage compartment floor section into the recesses on the suporpts ⇒ fig. 100 A (magnified view, arrow). Extending the luggage compartment downward x Turn the two latches⇒ fig. 99 B (magnified view) a quarter turn (90°) in the direction of the arrow (position (2)). x Pull the recessed handle in the luggage compartment floo⇒ r fig. 99 A and lift the floor upward (arrow). x Fold all luggage compartment floor sections to the front or lift the folded luggage compartment floor up and out of the luggage compartment. x If necessary, lift out the side walls of the side storage compartments and set them aside. x Pull the front luggage compartment floor suppor⇒ t fig. 100 B (1) upward in the direction of the arrow and remove it from the luggage compartment. x Unlock both retaining pins⇒ fig. 100 B (2) (magnified view) by turning them a quarter turn (90°) in the direction of the arrow and lifting them out. x Place the retaining pins outside the luggage compartment. x Lift the two side luggage compartment floor support⇒ s fig. 100 B (3) at the rear in the direction of the arrow and pull them out of the front mountings to the rear. x Remove the luggage compartment floor supports from the luggage compartment. x Place the folded luggage compartment floor at the very front of the luggage compartment. x Fold and place the luggage compartment floor sections to the rear. x If necessary, install the side walls from the side storage compartments in the holders on the lug- gage compartment trim. x Safely stow away the removed luggage compartment floor support⇒ s fig. 100 B (1), (3) and the retaining pins ⇒ fig. 100 B (2).
