text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2017:

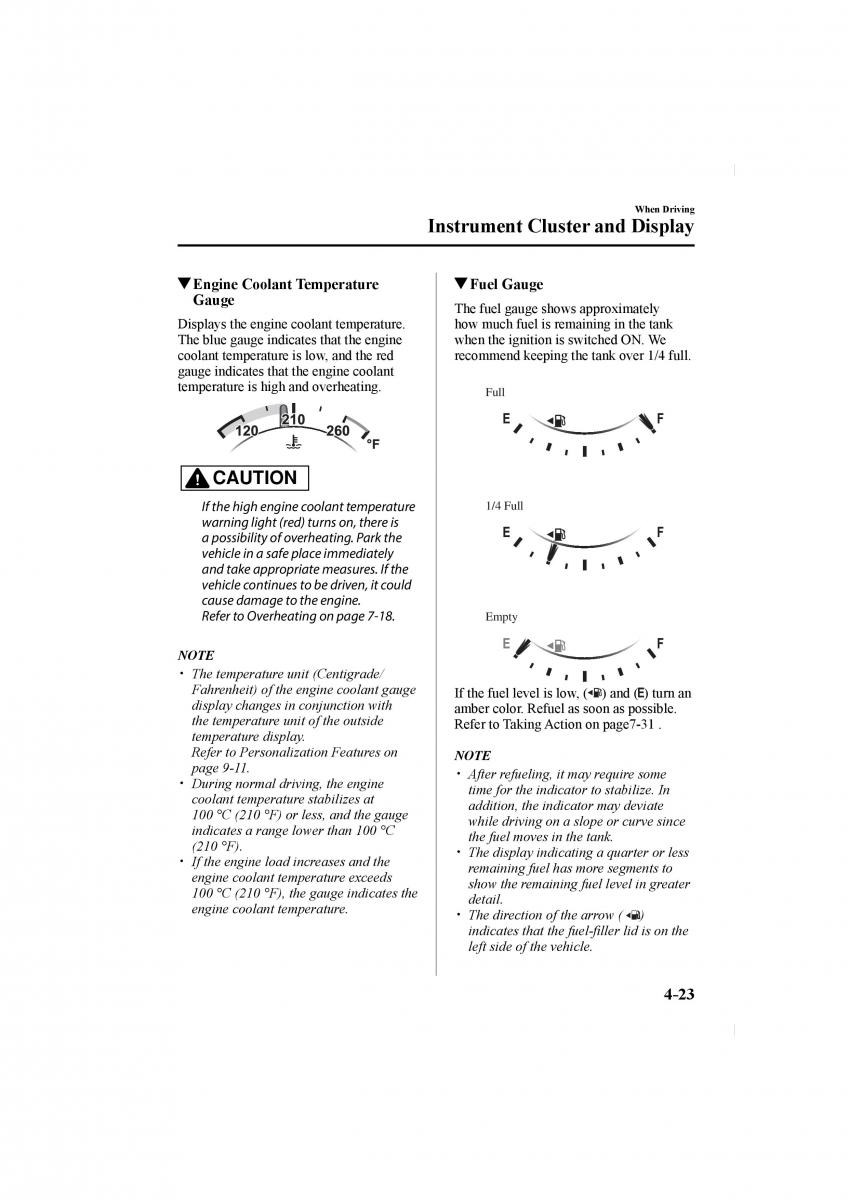

When Driving Instrument Cluster and Display Engine Coolant Temperature Fuel Gauge Gauge The fuel gauge shows approximately Displays the engine coolant temperature. how much fuel is remaining in the tank The blue gauge indicates that the engine when the ignition is switched ON. We coolant temperature is low, and the red recommend keeping the tank over 1/4 full. gauge indicates that the engine coolant temperature is high and overheating. Full CAUTION I f the high engine coolant temperature 1/4 Full warning light (red) turns on, there is a possibility of overheating. Park the vehicle in a safe place immediately and take appropriate measures. If the vehicle continues to be driven, it could cause damage to the engine. Refer to O verheating on page 7-18 . Empty NOTE  The temperature unit (Centigrade/ Fahrenheit) of the engine coolant gauge If the fuel level is low , ( ) and ( ) turn an display changes in conjunction with amber color. Refuel as soon as possible. the temperature unit of the outside to Refer Taking Action on page 7-31 . temperature display.  Refer to Personalization Features on NOTE page 9-11 .   After refueling, it may require some During normal driving, the engine time for the indicator to stabilize. In coolant temperature stabilizes at addition, the indicator may deviate 100 °C (210 °F) or less, and the gauge while driving on a slope or curve since indicates a range lower than 100 °C the fuel moves in the tank. (210 °F).   The display indicating a quarter or less If the engine load increases and the remaining fuel has more segments to engine coolant temperature exceeds show the remaining fuel level in greater 100 °C (210 °F), the gauge indicates the detail. engine coolant temperature.  The direction of the arrow ( ) indicates that the fuel-ﬁ ller lid is on the left side of the vehicle. 4–23 CX-5_8FN1-EA-16L_Edition1.indb 23 2016/12/12 10:05:44
