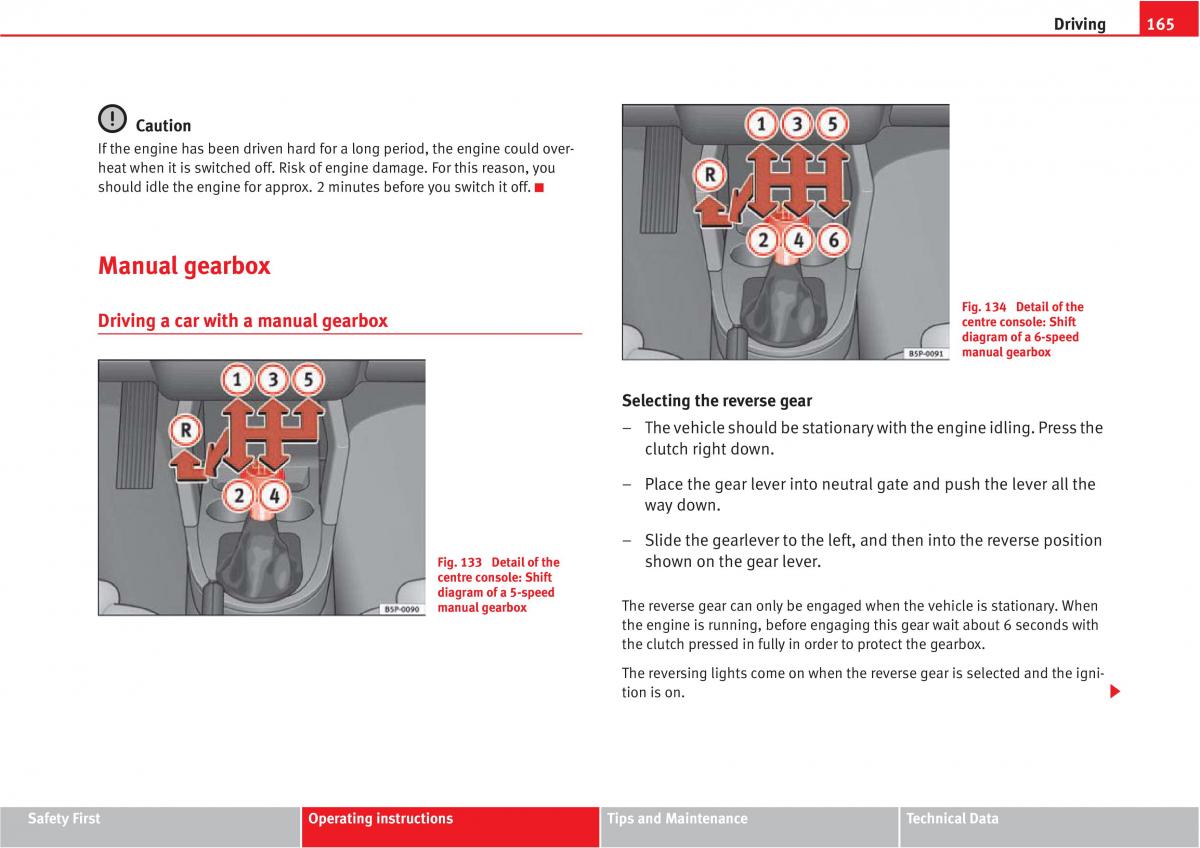

Driving165
Caution
If the engine has been driven hard for a long period, the engine could over-
heat when it is switched off. Risk of engine damage. For this reason, you
should idle the engine for approx. 2 minutes before you switch it off.
Manual gearbox
Fig. 134 Detail of the
Driving a car with a manual gearbox centre console: Shift
diagram of a 6-speed
manual gearbox
Selecting the reverse gear
– The vehicle should be stationary with the engine idling. Press the
clutch right down.
– Place the gear lever into neutral gate and push the lever all the
way down.
– Slide the gearlever to the left, and then into the reverse position
Fig. 133 Detail of the shown on the gear lever.
centre console: Shift
diagram of a 5-speed
manual gearbox The reverse gear can only be engaged when the vehicle is stationary. When
the engine is running, before engaging this gear wait about 6 seconds with
the clutch pressed in fully in order to protect the gearbox.
The reversing lights come on when the reverse gear is selected and the igni-
tion is on.
Safety First Operating instructions Tips and Maintenance Technical Data
