owners manual Toyota Auris Hybrid

owners manual Toyota Auris Hybrid - year of production: 2007, 2008, 2009, 2010, 2011, 2012 - Toyota Auris Hybrid I 1 owners manual EN

Document: pdf (27.62 MB) 524 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Toyota Auris Hybrid, year of production 2007 - 2012:

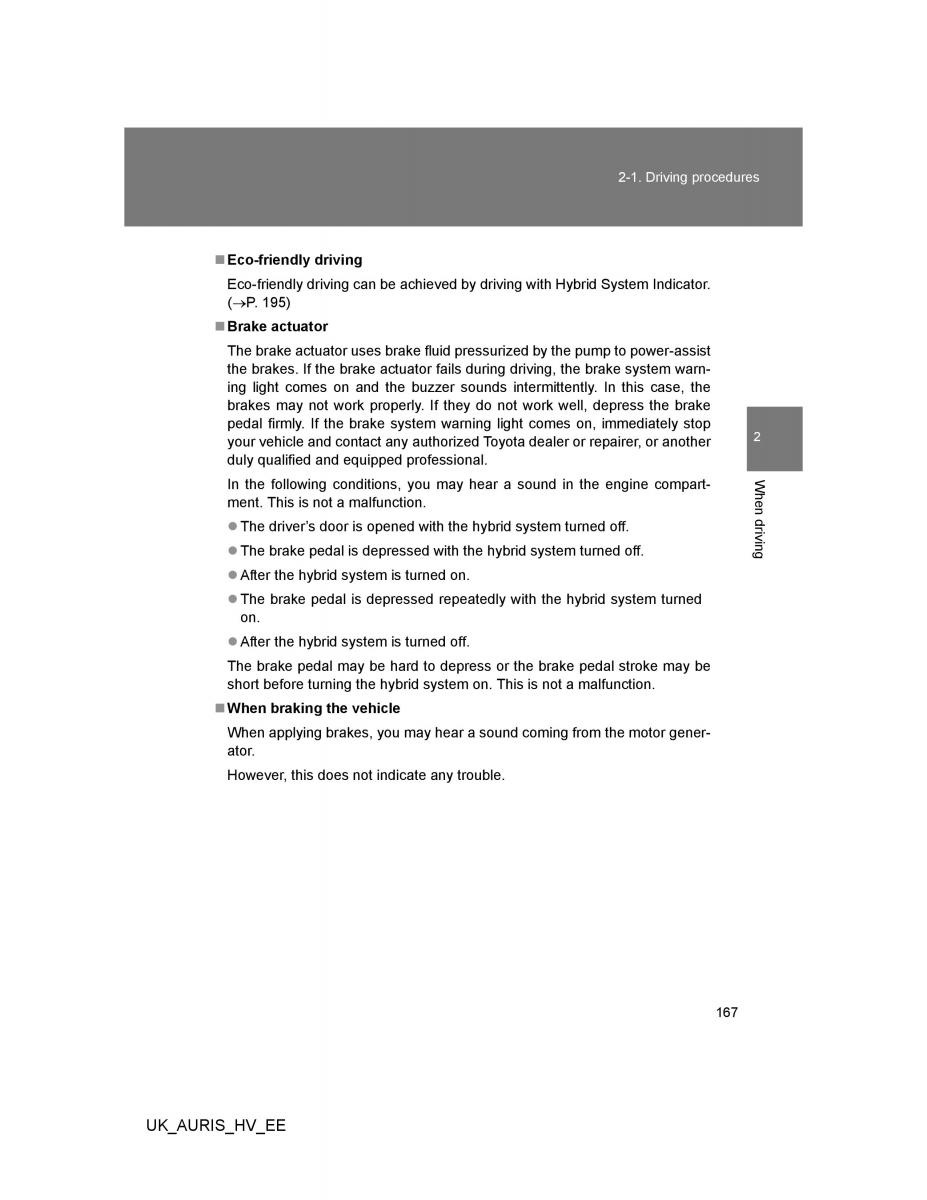

2-1. Driving procedures Eco-friendly driving Eco-friendly driving can be achieved by driving with Hybrid System Indicator. (P. 195) Brake actuator The brake actuator uses brake fluid pressurized by the pump to power-assist the brakes. If the brake actuator fails during driving, the brake system warn- ing light comes on and the buzzer sounds intermittently. In this case, the brakes may not work properly. If they do not work well, depress the brake pedal firmly. If the brake system warning light comes on, immediately stop your vehicle and contact any authorized Toyota dealer or repairer, or another2 duly qualified and equipped professional. W In the following conditions, you may hear a sound in the engine compart- ment. This is not a malfunction. hen drivi The driver’s door is opened with the hybrid system turned off. n The brake pedal is depressed with the hybrid system turned off.g After the hybrid system is turned on. The brake pedal is depressed repeatedly with the hybrid system turned on. After the hybrid system is turned off. The brake pedal may be hard to depress or the brake pedal stroke may be short before turning the hybrid system on. This is not a malfunction. When braking the vehicle When applying brakes, you may hear a sound coming from the motor gener- ator. However, this does not indicate any trouble. 167 UK_AURIS_HV_EE
