text version of content this owner's manual page from owners manual to the vehicle Mazda 5, year of production 2005 - 2010:

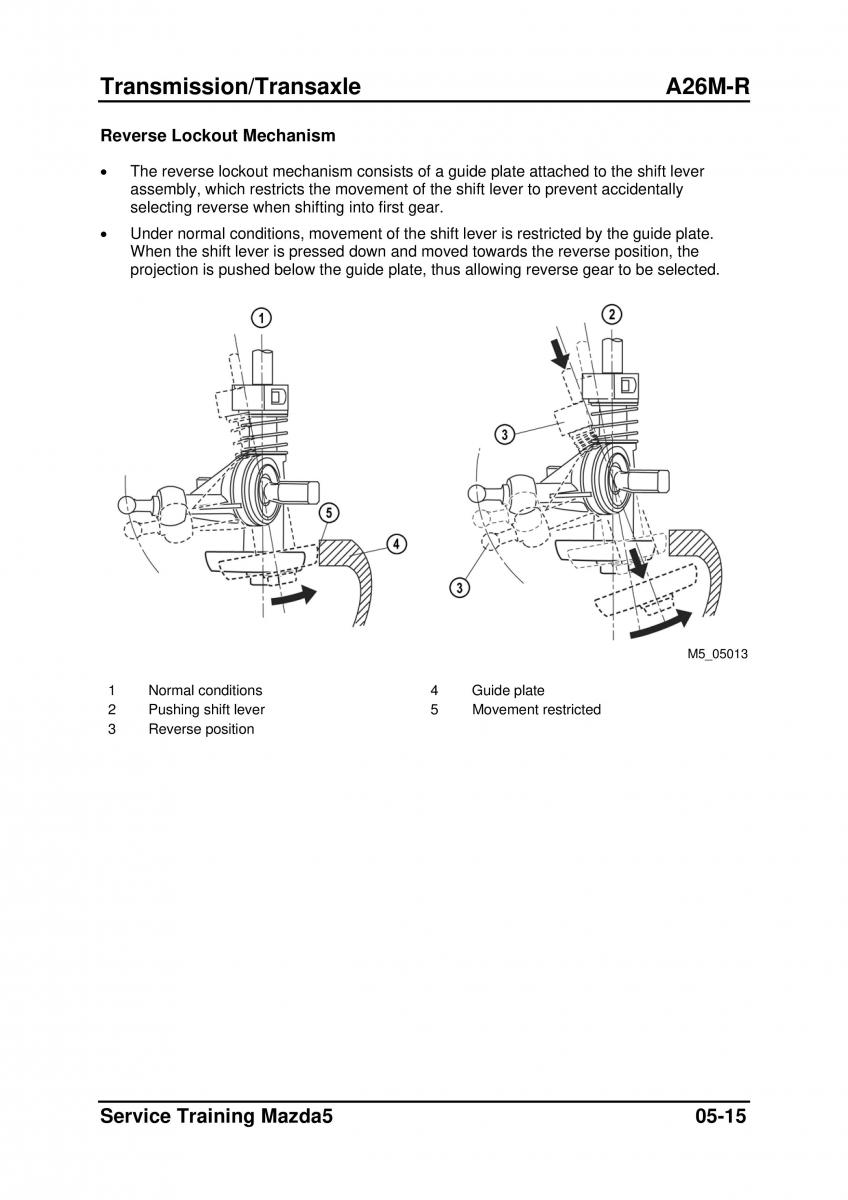

Transmission/Transaxle A26M-R Reverse Lockout Mechanism • The reverse lockout mechanism consists of a guide plate attached to the shift lever assembly, which restricts the movement of the shift lever to prevent accidentally selecting reverse when shifting into first gear. • Under normal conditions, movement of the shift lever is restricted by the guide plate. When the shift lever is pressed down and moved towards the reverse position, the projection is pushed below the guide plate, thus allowing reverse gear to be selected. M5_05013 1 Normal conditions 4 Guide plate 2 Pushing shift lever 5 Movement restricted 3 Reverse position Service Training Mazda5 05-15
