text version of content this owner's manual page from owners manual to the vehicle Lexus CT200h, year of production 2010:

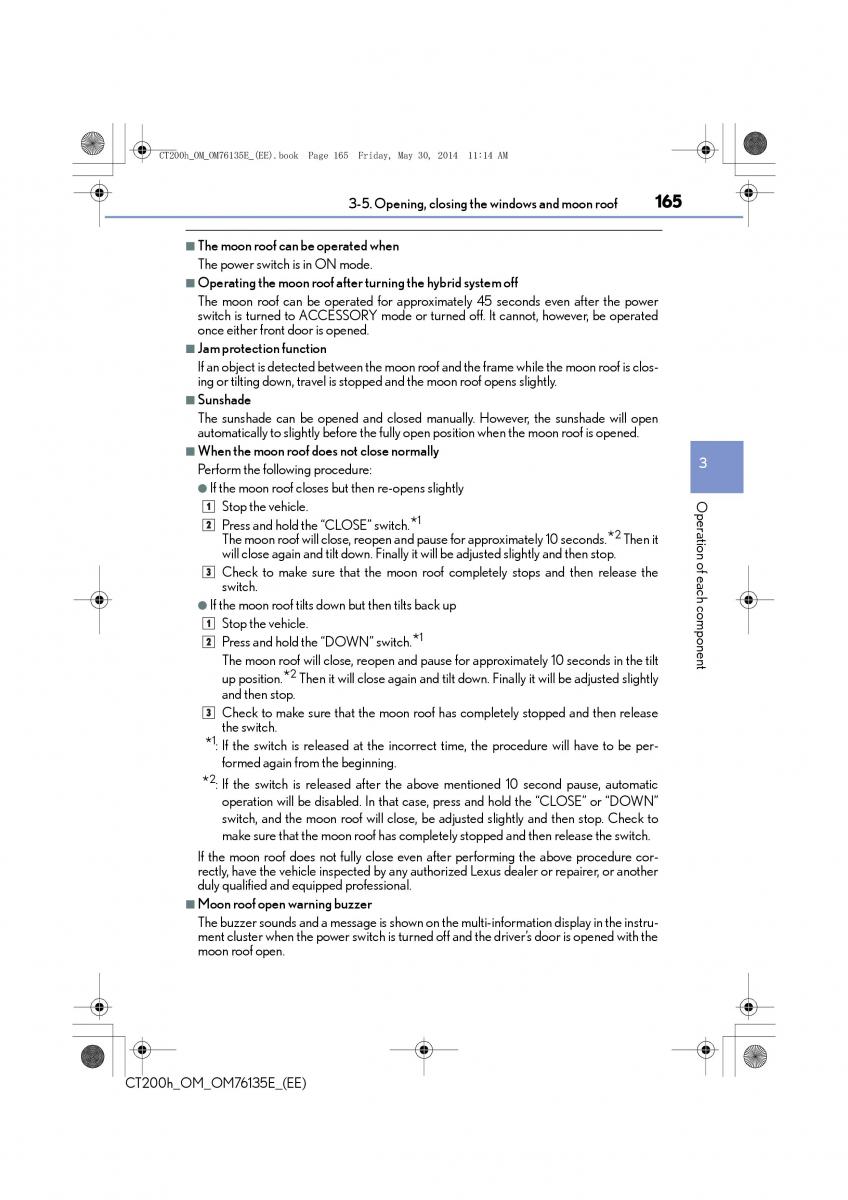

CT200h_OM_OM76135E_(EE).book Page 165 Friday, May 30, 2014 11:14 AM 3-5. Opening, closing the windows and moon roof165 ■The moon roof can be operated when The power switch is in ON mode. ■Operating the moon roof after turning the hybrid system off The moon roof can be operated for approximately 45 seconds even after the power switch is turned to ACCESSORY mode or turned off. It cannot, however, be operated once either front door is opened. ■Jam protection function If an object is detected between the moon roof and the frame while the moon roof is clos- ing or tilting down, travel is stopped and the moon roof opens slightly. ■Sunshade The sunshade can be opened and closed manually. However, the sunshade will open automatically to slightly before the fully open position when the moon roof is opened. ■When the moon roof does not close normally Perform the following procedure: 3 ●If the moon roof closes but then re-opens slightly 1 Stop the vehicle. O p 2 1 er * Press and hold the “CLOSE” switch. 2 at The moon roof will close, reopen and pause for approximately 10 seconds.* Then itio will close again and tilt down. Finally it will be adjusted slightly and then stop.n o f 3 Check to make sure that the moon r coofompletely stops and then release the ea switch. c h ●If the moon roof tilts down but then tilts back up co 1 Stop the vehicle. m p 1 o 2 Press and hold the “DOWN” switch.* n The moon roof will close, reopen and paue for appsroximately 10 seconds in the tilten 2 t up position.* Then it will close again and tilt down. Finally it will be adjusted slightly and then stop. 3 Check to make sure that the moon roof has completely stopped and then release the switch. 1 *: If the switch is released at the incorrect time, the procedure will have to be per- formed again from the beginning. 2 * : If the switch is released after the above mentioned 10 second pause, automatic operation will be disabled. In that case, press and hold the “CLOSE” or “DOWN” switch, and the moon roof will close, be adjusted slightly and then stop. Check to make sure that the moon roof has completely stopped and then release the switch. If the moon roof does not fully close even after performing the above procedure cor- rectly, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional. ■Moon roof open warning buzzer The buzzer sounds and a message is shown on the multi-information display in the instru- ment cluster when the power switch is turned off and the driver’s door is opened with the moon roof open. CT200h_OM_OM76135E_(EE)
