text version of content this owner's manual page from owners manual to the vehicle Nissan Note, year of production 2012:

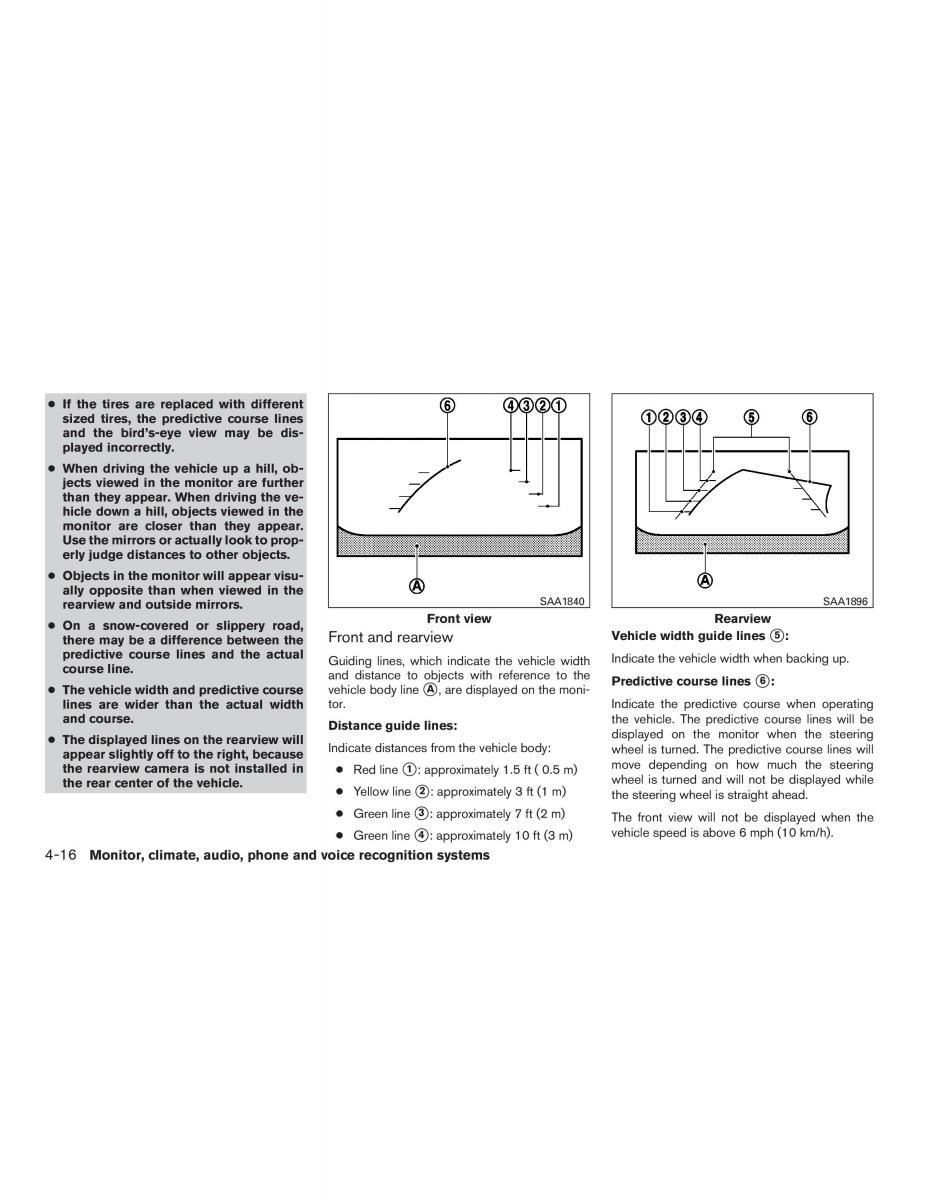

● If the tires are replaced with different
sized tires, the predictive course lines
and the bird’s-eye view may be dis-
played incorrectly.
● When driving the vehicle up a hill, ob-
jects viewed in the monitor are further
than they appear. When driving the ve-
hicle down a hill, objects viewed in the
monitor are closer than they appear.
Usethemirrorsoractuallylooktoprop-
erly judge distances to other objects.
● Objects in the monitor will appear visu-
ally opposite than when viewed in the
rearview and outside mirrors. SAA1840 SAA1896
● On a snow-covered or slippery road,Front view Rearview
Front and rearview Vehicle width guide lines 5 :
there may be a difference between the
predictive course lines and the actualGuiding lines, which indicate the vehicle widthIndicate the vehicle width when backing up.
course line. and distance to objects with reference to the
Predictive course lines 6 :
● Thevehiclewidthandpredictivecoursevehicle body line A , are displayed on the moni-
lines are wider than the actual widthtor. Indicate the predictive course when operating
andcourse. Distance guide lines: the vehicle. The predictive course lines will be
● Thedisplayedlinesontherearviewwill displayed on the monitor when the steering
appearslightly off to the right, becauseIndicate distances from the vehicle body:wheel is turned. The predictive course lines will
the rearview camera is not installed in● Redline 1 : approximately 1.5 ft ( 0.5 m)move depending on how much the steering
wheel is turned and will not be displayed while
the rear center of the vehicle.● Yellow line 2 : approximately 3 ft (1 m)
the steering wheel is straight ahead.
● Greenline 3 : approximately 7 ft (2 m)
The front view will not be displayed when the
● Greenline 4 : approximately 10 ft (3 m)vehicle speed is above 6 mph (10 km/h).
4-16 Monitor, climate, audio, phone and voice recognition systems
