Child safety

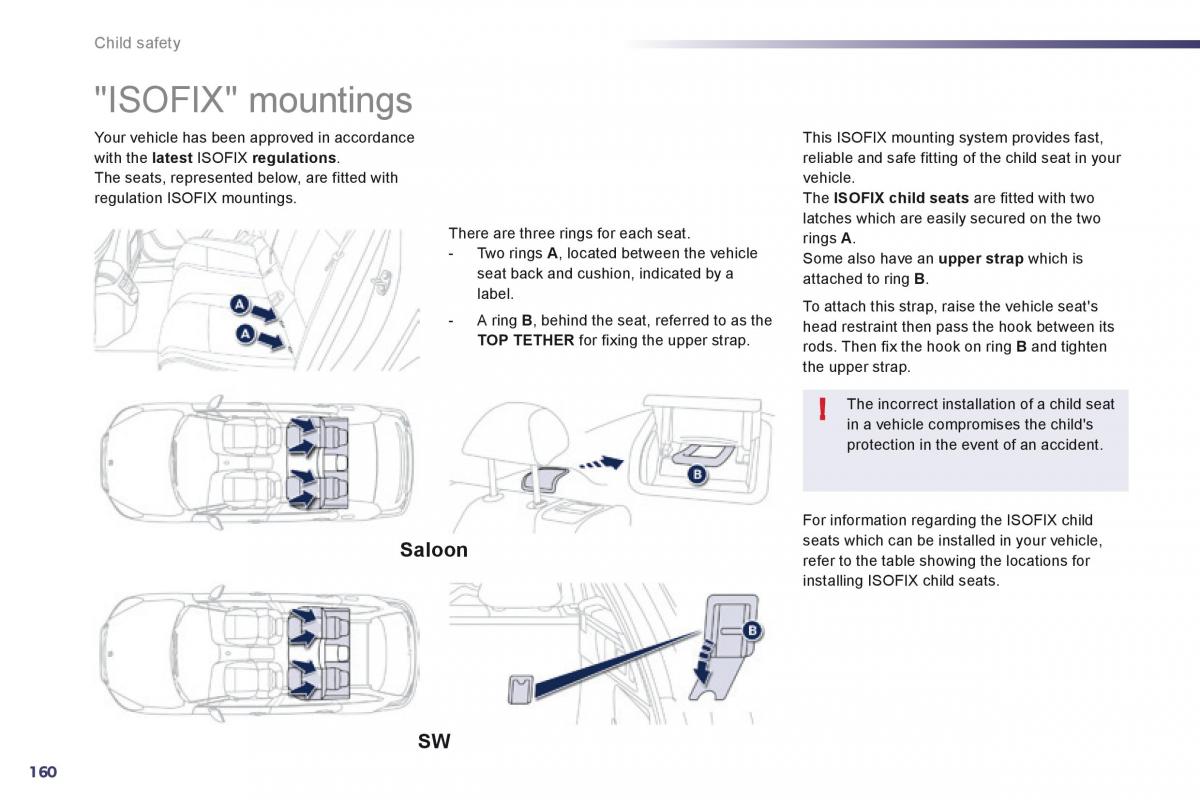

" ISOFIX" mountings
Y our vehicle has been approved in accordance T his ISOFIX mounting system provides fast,
with the latest ISOFIX regulations . reliable and safe fitting of the child seat in your
The seats, represented below, are fitted with vehicle.
regulation ISOFIX mountings. The I SOFIX child seats are fitted with two
T here are three rings for each seat. latches which are easily secured on the two
- Two rings A , located between the vehicle rings A .
seat back and cushion, indicated by a Some also have an upper strap which is
label. attached to ring B .
- A ring B , behind the seat, referred to as the T o attach this strap, raise the vehicle seat's
TOP TETHER for fixing the upper strap. head restraint then pass the hook between its
rods. Then fix the hook on ring B and tighten
the upper strap.
! The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX child
S aloon seats which can be installed in your vehicle,
refer to the table showing the locations for
installing ISOFIX child seats.
SW
160
