text version of content this owner's manual page from owners manual to the vehicle Hyundai Tucson, year of production 2004 - 2010:

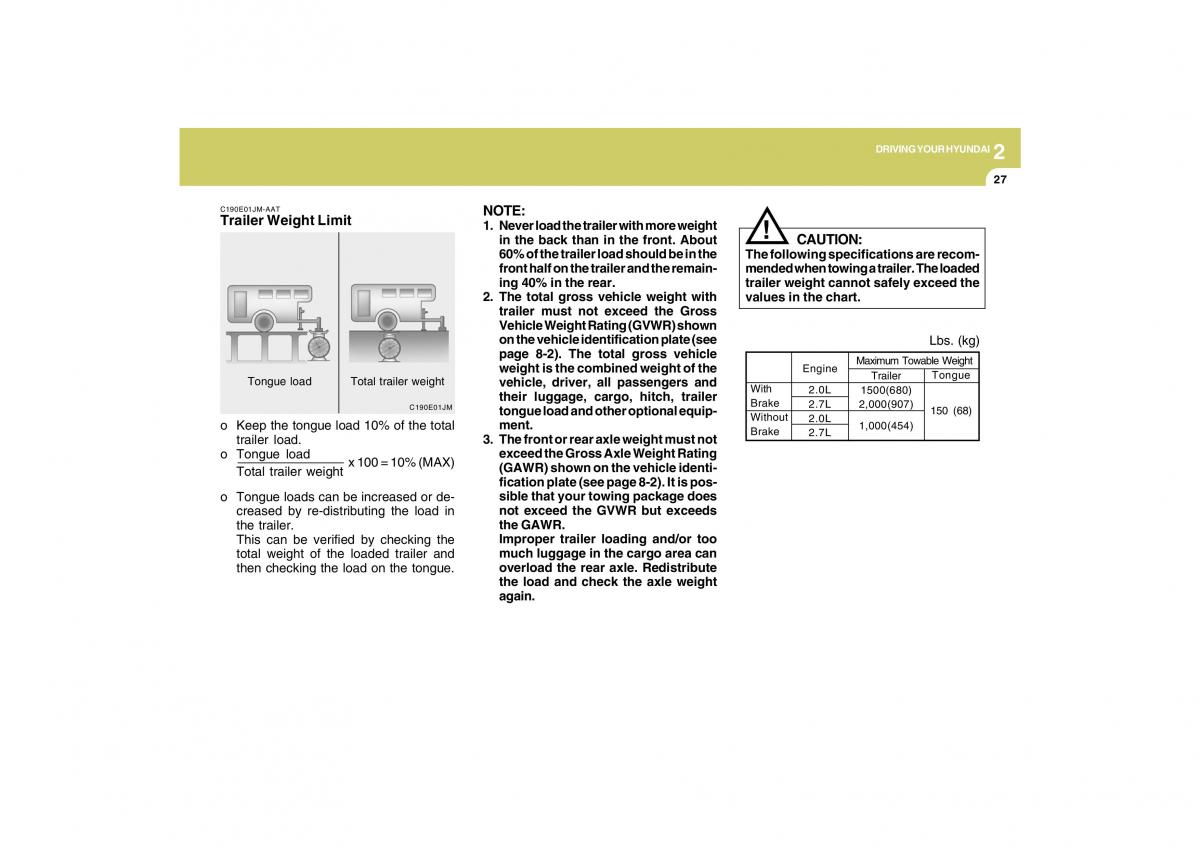

DRIVING YOUR HYUNDAI 2 27 C190E01JM-AAT NOTE: Trailer Weight Limit 1. Never load the trailer with more weight ! in the back than in the front. About CAUTION: 60% of the trailer load should be in the The following specifications are recom- front half on the trailer and the remain- mended when towing a trailer. The loaded ing 40% in the rear. trailer weight cannot safely exceed the 2. The total gross vehicle weight with values in the chart. trailer must not exceed the Gross Vehicle Weight Rating (GVWR) shown on the vehicle identification plate (see Lbs. (kg) page 8-2). The total gross vehicle weight is the combined weight of the Engine Maximum Towable Weight Tongue load Total trailer weight vehicle, driver, all passengers and Trailer Tongue With 2.0L 1500(680) their luggage, cargo, hitch, trailer C190E01JM tongue load and other optional equip- Brake 2.7L 2,000(907)150 (68) ment. Without 2.0L 1,000(454) o Keep the tongue load 10% of the total Brake 2.7L trailer load. 3. The front or rear axle weight must not o Tongue load x 100 = 10% (MAX) exceed the Gross Axle Weight Rating Total trailer weight (GAWR) shown on the vehicle identi- fication plate (see page 8-2). It is pos- o Tongue loads can be increased or de- sible that your towing package does not exceed the GVWR but exceeds creased by re-distributing the load in the trailer. the GAWR. Improper trailer loading and/or too This can be verified by checking the much luggage in the cargo area can total weight of the loaded trailer and overload the rear axle. Redistribute then checking the load on the tongue. the load and check the axle weight again.
