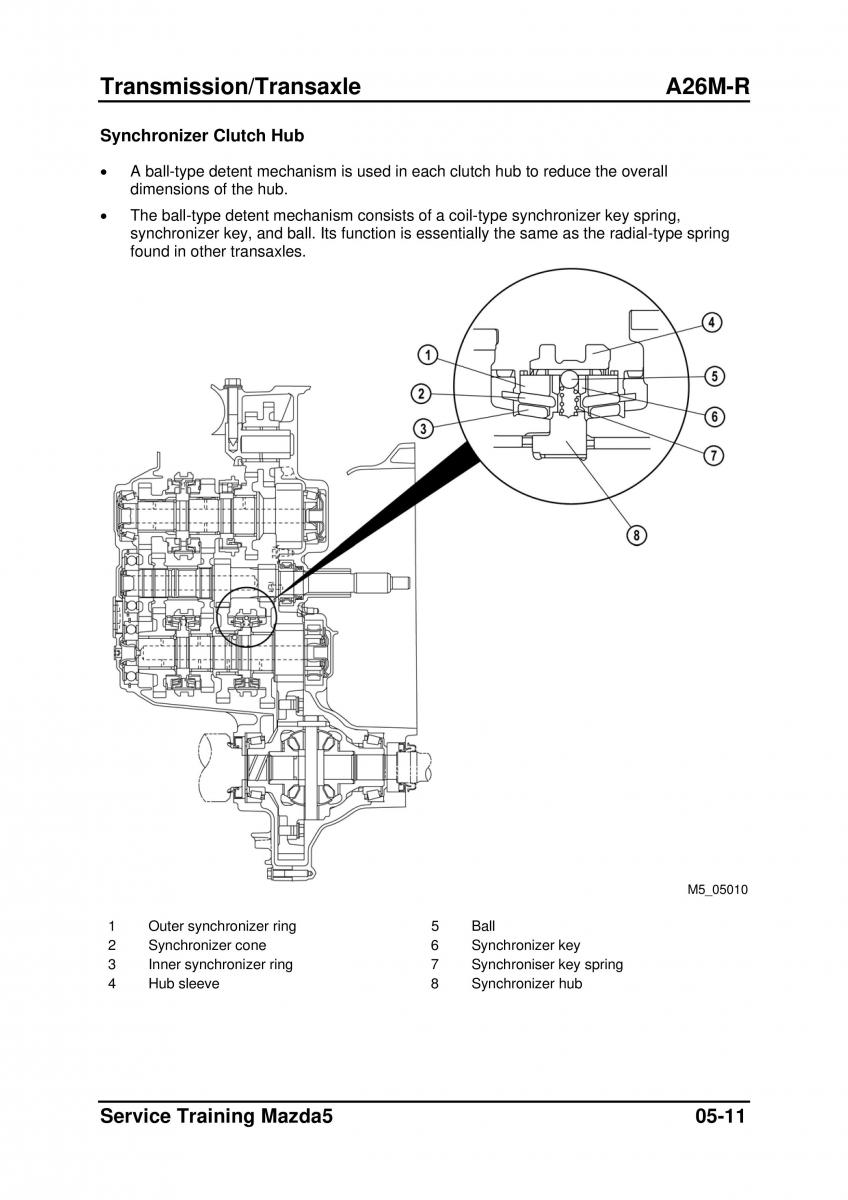

Transmission/Transaxle A26M-R Synchronizer Clutch Hub • A ball-type detent mechanism is used in each clutch hub to reduce the overall dimensions of the hub. • The ball-type detent mechanism consists of a coil-type synchronizer key spring, synchronizer key, and ball. Its function is essentially the same as the radial-type spring found in other transaxles. M5_05010 1 Outer synchronizer ring 5 Ball 2 Synchronizer cone 6 Synchronizer key 3 Inner synchronizer ring 7 Synchroniser key spring 4 Hub sleeve 8 Synchronizer hub Service Training Mazda5 05-11
