from owners manual to the vehicle Mercedes CLK, year of production 1997 - 2003:

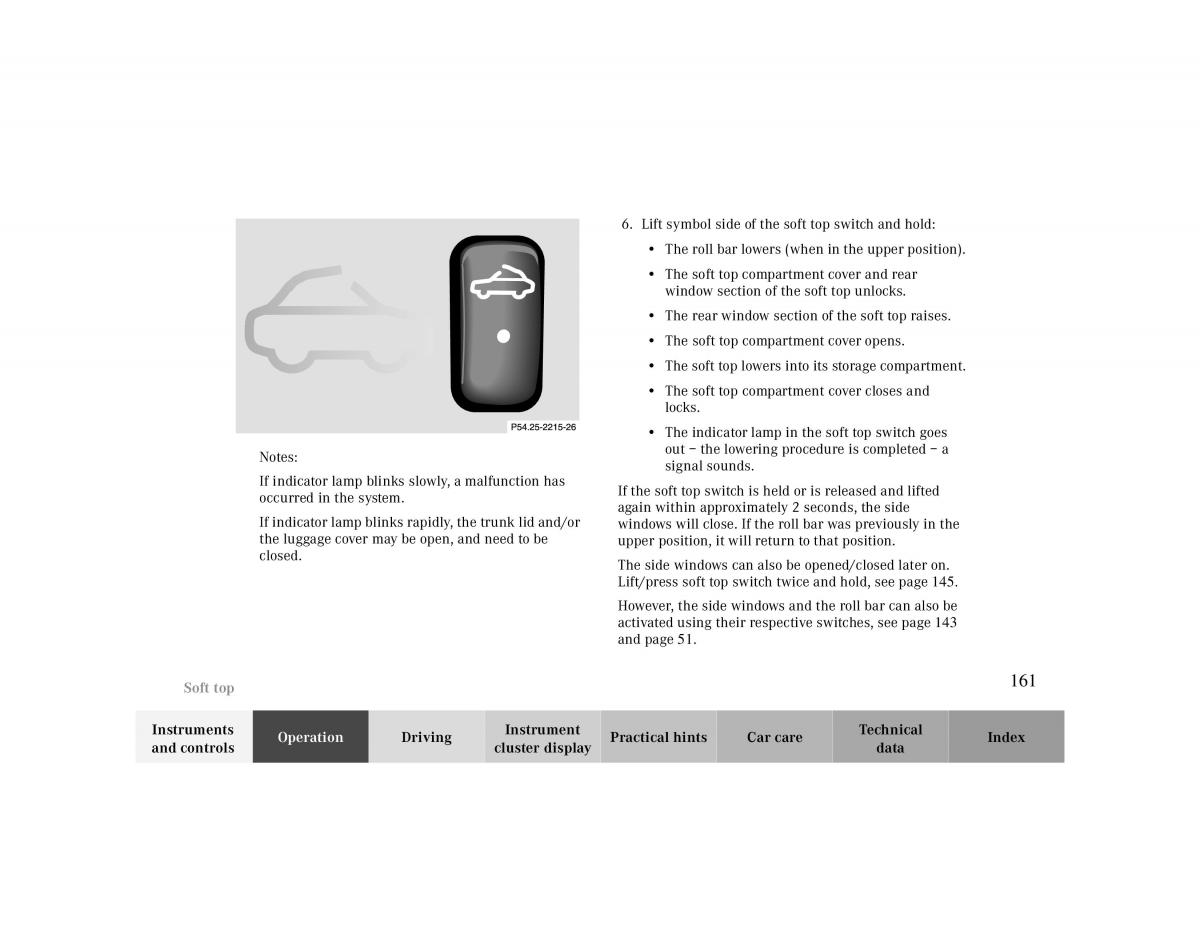

6. Lift symbol side of the soft top switch and hold:
The roll bar lowers (when in the upper position).
The soft top compartment cover and rear
window section of the soft top unlocks.
The rear window section of the soft top raises.
The soft top compartment cover opens.
The soft top lowers into its storage compartment.
The soft top compartment cover closes and
locks.
The indicator lamp in the soft top switch goes
Notes: out – the lowering procedure is completed – a
signal sounds.
If indicator lamp blinks slowly, a malfunction has If the soft top switch is held or is released and lifted
occurred in the system. again within approximately 2 seconds, the side
If indicator lamp blinks rapidly, the trunk lid and/or windows will close. If the roll bar was previously in the
the luggage cover may be open, and need to be upper position, it will return to that position.
closed. The side windows can also be opened/closed later on.
Lift/press soft top switch twice and hold, see page145.
However, the side windows and the roll bar can also be
activated using their respective switches, see page143
and page 51.
Soft top 161
Instruments OperationDrivingInstrument Practical hintsCar careTechnicalIndex
and controls cluster display data
