text version of content this owner's manual page from owners manual to the vehicle Renault Trafic, year of production 2001 - 2014:

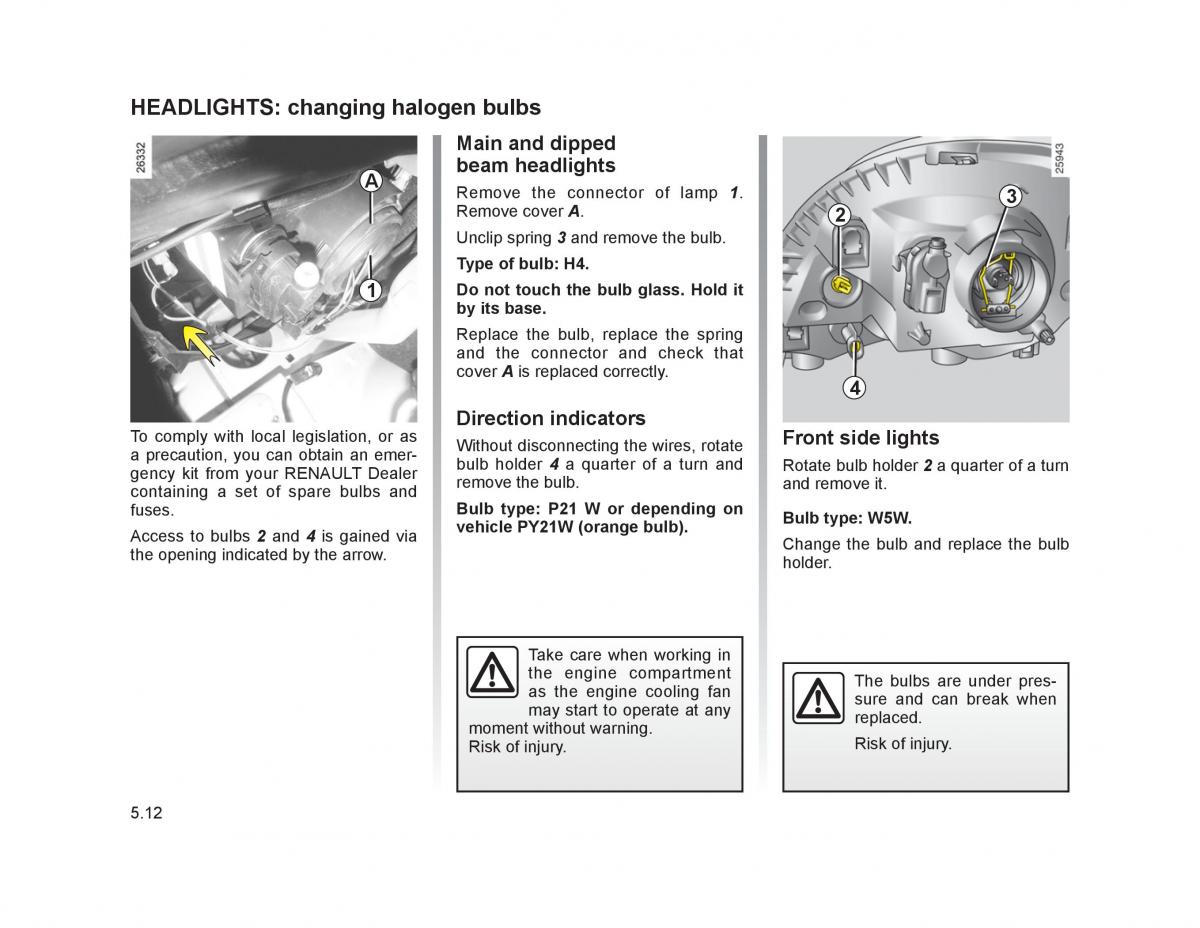

HEADLIGHTS: changing halogen bulbs Main and dipped A beam headlights Remove the connector of lamp 1. Remove cover A. 2 3 Unclip spring 3 and remove the bulb. Type of bulb: H4. 1 Do not touch the bulb glass. Hold it by its base. Replace the bulb, replace the spring and the connector and check that cover A is replaced correctly. 4 Direction indicators To comply with local legislation, or as Front side lights Without disconnecting the wires, rotate a precaution, you can obtain an emer- bulb holder 4 a quarter of a turn and gency kit from your RENAULT Dealer Rotate bulb holder 2 a quarter of a turn remove the bulb. and remove it. containing a set of spare bulbs and fuses. Bulb type: P21 W or depending on vehicle PY21W (orange bulb).Bulb type: W5W. Access to bulbs 2 and 4 is gained via Change the bulb and replace the bulb the opening indicated by the arrow. holder. T ake care when working in the engine compartment The bulbs are under pres- as the engine cooling fan may start to operate at any sure and can break when moment without warning. replaced. Risk of injury. Risk of injury. 5.12 _UD0_
