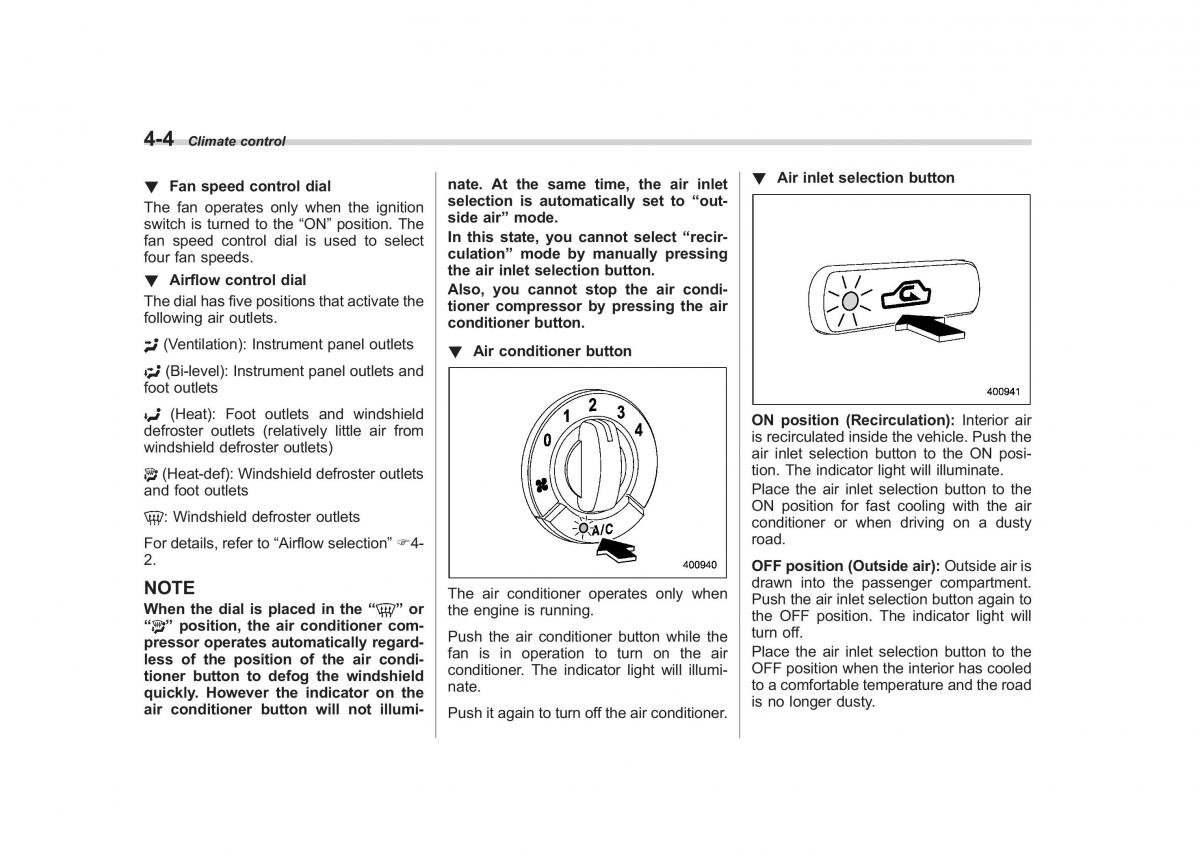

4-4 Climate control
! Fanspeedcontrol dial nate. At the same time, the air inlet! Air inlet selection button
The fan operates only when the ignitionselection is automatically set to “out-
switch is turned to the “ON” position. Theside air” mode.
fan speed control dial is used to selectIn this state, you cannot select “recir-
four fan speeds. culation” mode by manually pressing
! Airflow control dial the air inlet selection button.
Also, you cannot stop the air condi-
Thedialhasfivepositionsthat activate thetioner compressor by pressing the air
following air outlets. conditioner button.
(Ventilation): Instrument panel outlets! Air conditioner button
(Bi-level): Instrument panel outlets and
foot outlets
(Heat): Foot outlets and windshield ON position (Recirculation): Interior air
defroster outlets (relatively little air from is recirculated inside the vehicle. Push the
windshield defroster outlets) air inlet selection button to the ON posi-
(Heat-def): Windshield defroster outlets tion. The indicator light will illuminate.
and foot outlets Place the air inlet selection button to the
ON position for fast cooling with the air
: Windshield defroster outlets conditioner or when driving on a dusty
For details, refer to “Airflow selection” F4- road.
2. OFFposition(Outsideair): Outside air is
NOTE drawn into the passenger compartment.
The air conditioner operates only whenPush the air inlet selection button again to
When the dial is placed in the “” orthe engine is running.the OFF position. The indicator light will
“ ” position, the air conditioner com-Push the air conditioner button while theturn off.
pressor operates automatically regard-fan is in operation to turn on the airPlace the air inlet selection button to the
less of the position of the air condi-conditioner. The indicator light will illumi-OFFposition when the interior has cooled
tioner button to defog the windshieldnate. to a comfortable temperature and the road
quickly. However the indicator on the is no longer dusty.
air conditioner button will not illumi-Pushit again to turn off the air conditioner.
