text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2012 - 2017:

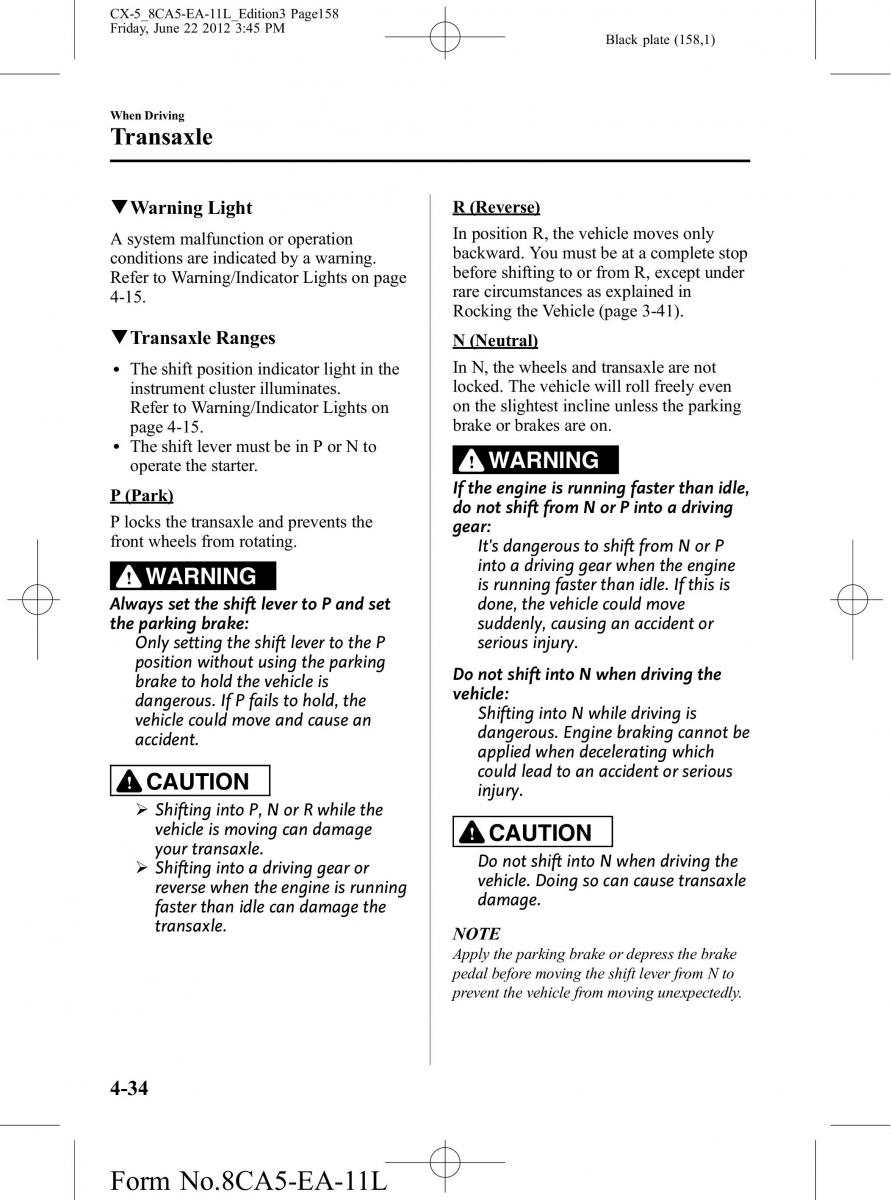

CX-5_8CA5-EA-11L_Edition3 Page158 Friday, June 22 2012 3:45 PM Black plate (158,1) WhenDriving Transaxle qWarningLight R(Reverse) Asystemmalfunction or operation In position R, the vehicle moves only conditions are indicated by a warning. backward. You must be at a complete stop Refer to Warning/Indicator Lights on page before shifting to or from R, except under 4-15. rare circumstances as explained in Rocking the Vehicle (page 3-41). qTransaxleRanges N(Neutral) l The shift position indicator light in the In N, the wheels and transaxle are not instrument cluster illuminates. locked. The vehicle will roll freely even Refer to Warning/Indicator Lights on on the slightest incline unless the parking page 4-15. brake or brakes are on. l The shift lever must be in P or N to WARNING operate the starter. P(Park) If the engine is running faster than idle, Plocks the transaxle and prevents the donotshift from N or P into a driving front wheels from rotating. gear: It's dangerous to shift from N or P WARNING into a driving gear when the engine is running faster than idle. If this is Always set the shift lever to P and set done, the vehicle could move the parking brake: suddenly, causing an accident or Only setting the shift lever to the P serious injury. position without using the parking Donotshiftinto N when driving the brake to hold the vehicle is vehicle: dangerous. If P fails to hold, the Shifting into N while driving is vehicle could move and cause an dangerous. Engine braking cannot be accident. applied when decelerating which CAUTION could lead to an accident or serious injury. ØShifting into P, N or R while the vehicle is moving can damage CAUTION your transaxle. Donotshift into N when driving the ØShifting into a driving gear or vehicle. Doing so can cause transaxle reverse when the engine is running damage. faster than idle can damage the transaxle. NOTE Apply the parking brake or depress the brake pedal before moving the shift lever from N to prevent the vehicle from moving unexpectedly. 4-34 Form No.8CA5-EA-11L
