owners manual Toyota Avensis

owners manual Toyota Avensis - year of production: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 - Toyota Avensis III 3 owners manual EN

Document: pdf (36.1 MB) 772 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle Toyota Avensis, year of production 2008 - 2015:

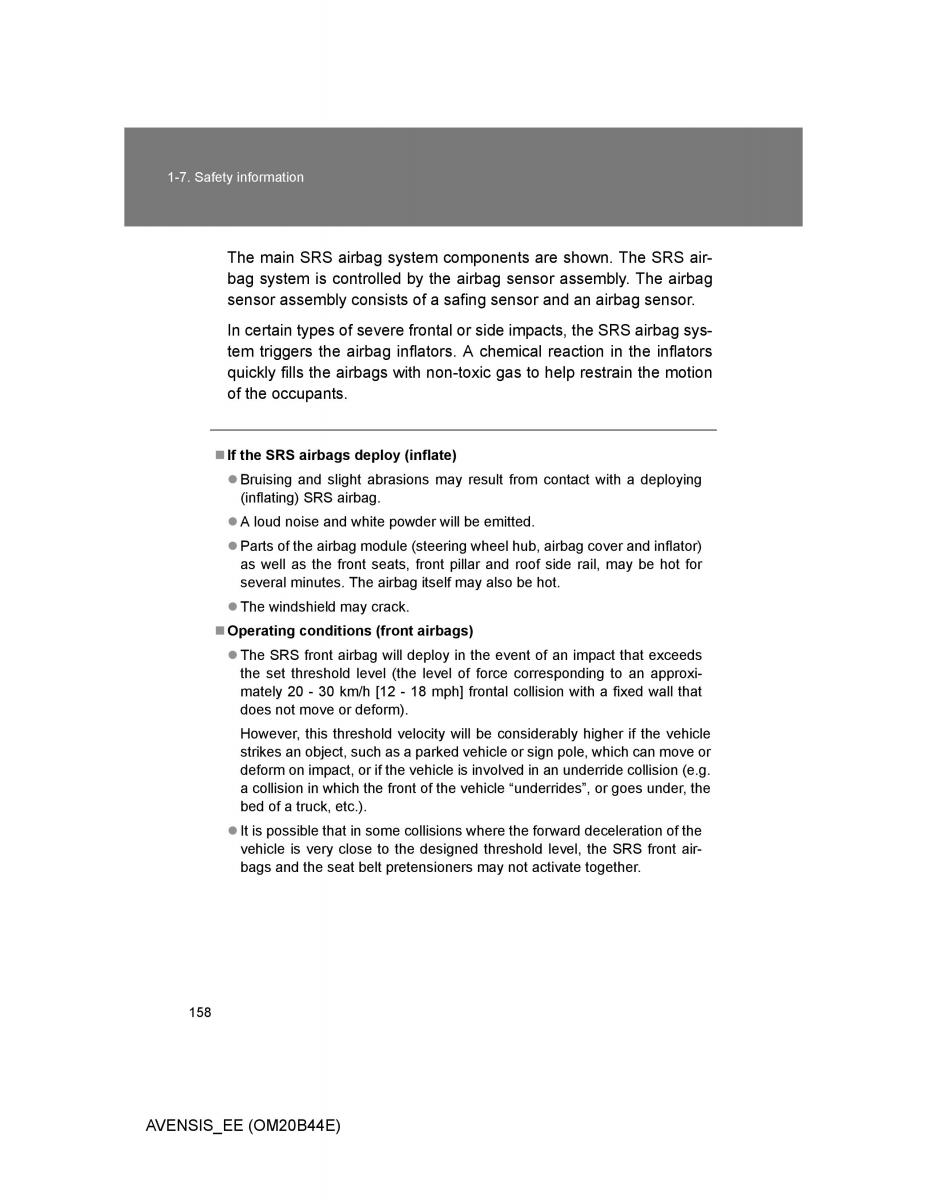

1-7. Safety information The main SRS airbag system components are shown. The SRS air- bag system is controlled by the airbag sensor assembly. The airbag sensor assembly consists of a safing sensor and an airbag sensor. In certain types of severe frontal or side impacts, the SRS airbag sys- tem triggers the airbag inflators. A chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain the motion of the occupants. If the SRS airbags deploy (inflate) Bruising and slight abrasions may result from contact with a deploying (inflating) SRS airbag. A loud noise and white powder will be emitted. Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the front seats, front pillar and roof side rail, may be hot for several minutes. The airbag itself may also be hot. The windshield may crack. Operating conditions (front airbags) The SRS front airbag will deploy in the event of an impact that exceeds the set threshold level (the level of force corresponding to an approxi- mately 20 - 30 km/h [12 - 18 mph] frontal collision with a fixed wall that does not move or deform). However, this threshold velocity will be considerably higher if the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact, or if the vehicle is involved in an underride collision (e.g. a collision in which the front of the vehicle “underrides”, or goes under, the bed of a truck, etc.). It is possible that in some collisions where the forward deceleration of the vehicle is very close to the designed threshold level, the SRS front air- bags and the seat belt pretensioners may not activate together. 158 AVENSIS_EE (OM20B44E)
