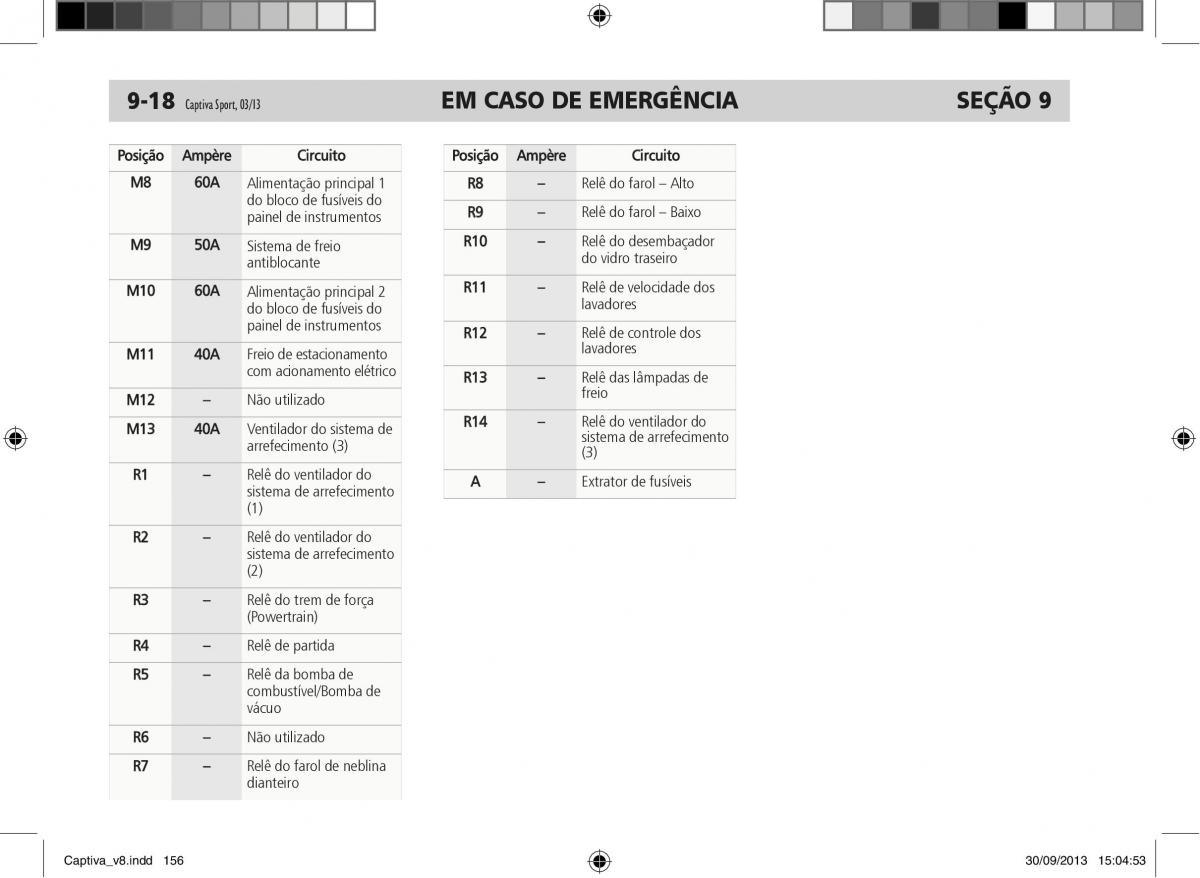

9-18 Captiva Sport, 03/13 EM CASO DE EMERGÊNCIA SEÇÃO 9
PosiçãoAmpère Circuito PosiçãoAmpère Circuito
M8 60A Alimentação principal 1 R8 – Relê do farol – Alto
do bloco de fusíveis do R9 – Relê do farol – Baixo
painel de instrumentos
M9 50A Sistema de freio R10 – Relê do desembaçador
antiblocante do vidro traseiro
M10 60A Alimentação principal 2 R11 – Relê de velocidade dos
do bloco de fusíveis do lavadores
painel de instrumentos R12 – Relê de controle dos
M11 40A Freio de estacionamento lavadores
com acionamento elétricoR13 – Relê das lâmpadas de
M12 – Não utilizado freio
M13 40A Ventilador do sistema de R14 – Relê do ventilador do
arrefecimento (3) sistema de arrefecimento
(3)
R1 – Relê do ventilador do A – Extrator de fusíveis
sistema de arrefecimento
(1)
R2 – Relê do ventilador do
sistema de arrefecimento
(2)
R3 – Relê do trem de força
(Powertrain)
R4 – Relê de partida
R5 – Relê da bomba de
combustível/Bomba de
vácuo
R6 – Não utilizado
R7 – Relê do farol de neblina
dianteiro
Captiva_v8.indd 156 30/09/2013 15:04:53
