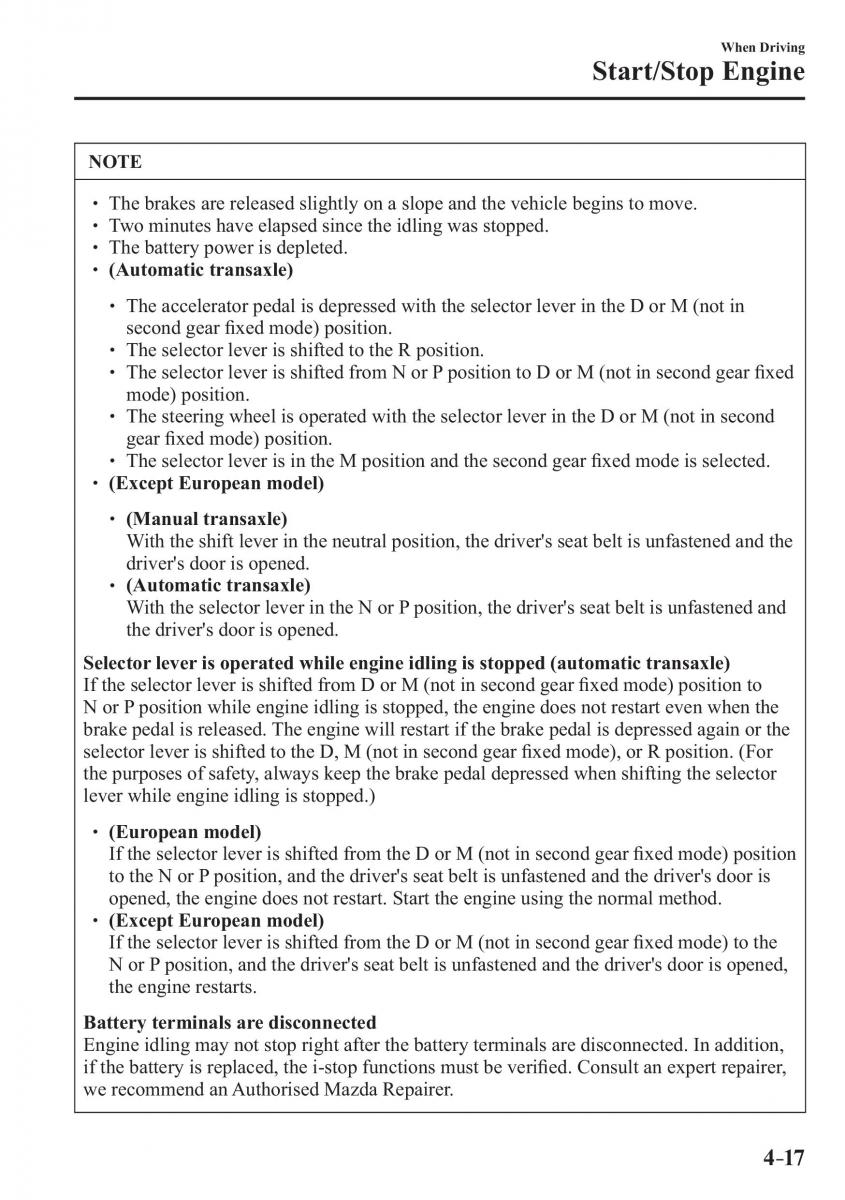

When Driving
Start/Stop Engine
NOTE
The brakes are released slightly on a slope and the vehicle begins to move.
Two minutes have elapsed since the idling was stopped.
The battery power is depleted.
(Automatic transaxle)
The accelerator pedal is depressed with the selector lever in the D or M (not in
second gear fi xed mode) position.
The selector lever is shifted to the R position.
The selector lever is shifted from N or P position to D or M (not in second gear fi xed
mode) position.
The steering wheel is operated with the selector lever in the D or M (not in second
gear fi xed mode) position.
The selector lever is in the M position and the second gear fi xed mode is selected.
(Except European model)
(Manual transaxle)
With the shift lever in the neutral position, the driver's seat belt is unfastened and the
driver's door is opened.
(Automatic transaxle)
With the selector lever in the N or P position, the driver's seat belt is unfastened and
the driver's door is opened.
Selector lever is operated while engine idling is stopped (automatic transaxle)
If the selector lever is shifted from D or M (not in second gear fi xed mode) position to
N or P position while engine idling is stopped, the engine does not restart even when the
brake pedal is released. The engine will restart if the brake pedal is depressed again or the
selector lever is shifted to the D, M (not in second gear fi xed mode), or R position. (For
the purposes of safety, always keep the brake pedal depressed when shifting the selector
lever while engine idling is stopped.)
(European model)
If the selector lever is shifted from the D or M (not in second gear fi xed mode) position
to the N or P position, and the driver's seat belt is unfastened and the driver's door is
opened, the engine does not restart. Start the engine using the normal method.
(Except European model)
If the selector lever is shifted from the D or M (not in second gear fi xed mode) to the
N or P position, and the driver's seat belt is unfastened and the driver's door is opened,
the engine restarts.
Battery terminals are disconnected
Engine idling may not stop right after the battery terminals are disconnected. In addition,
if the battery is replaced, the i-stop functions must be verifi ed. Consult an expert repairer,
we recommend an Authorised Mazda Repairer.
4–17
