VW Jetta VI 6 Hybrid owners manual page 156

text version of content this owner's manual page from owners manual to the vehicle VW Jetta Hybrid, year of production 2012:

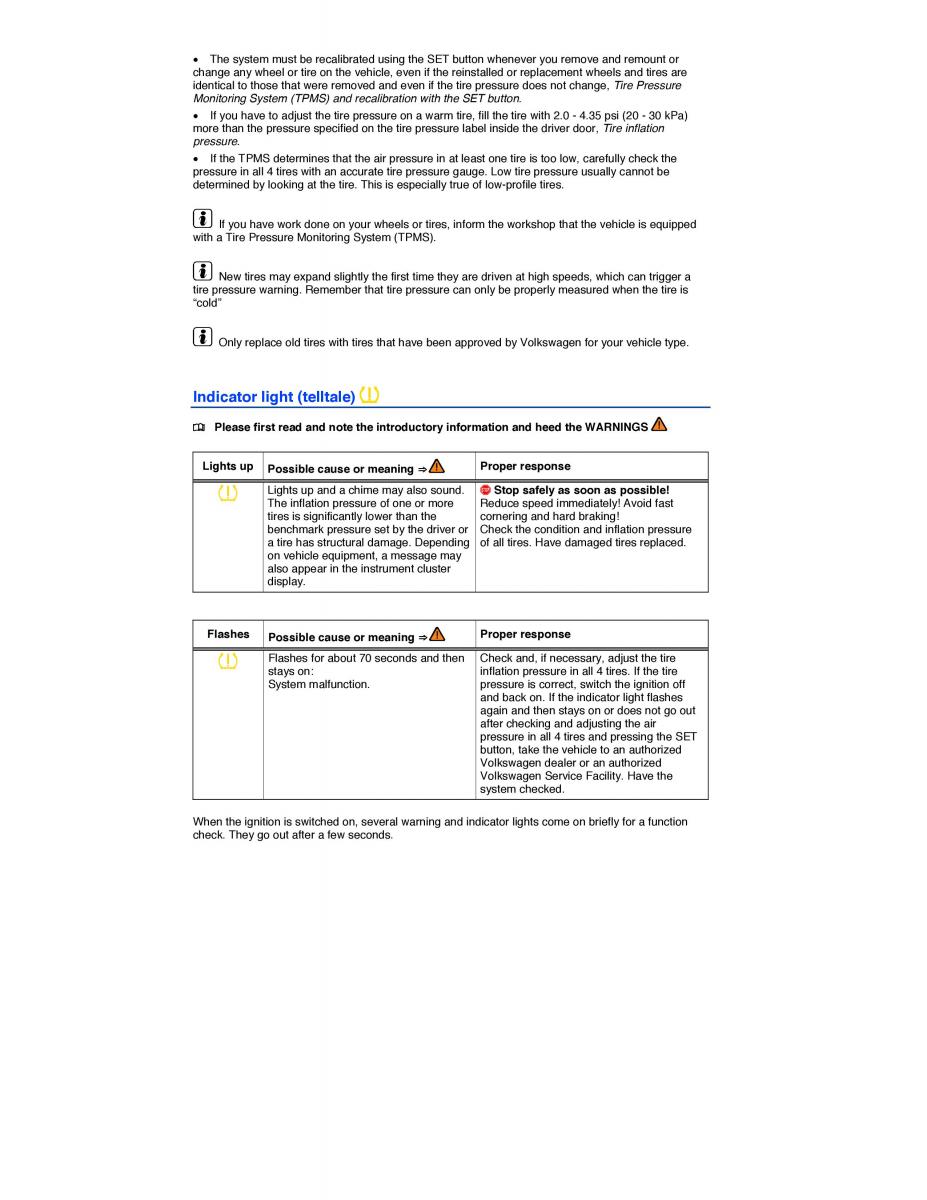

x The system must be recalibrated using the SET button whenever you remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change, Tire Pressure Monitoring System (TPMS) and recalibration with the SET button. x If you have to adjust the tire pressure on a warm tire, fill the tire with 2.0 - 4.35 psi (20 - 30 kPa) more than the pressure specified on the tire pressure label inside the driver door, Tire inflation pressure. x If the TPMS determines that the air pressure in at least one tire is too low, carefully check the pressure in all 4 tires with an accurate tire pressure gauge. Low tire pressure usually cannot be determined by looking at the tire. This is especially true of low-profile tires. If you have work done on your wheels or tires, inform the workshop that the vehicle is equipped with a Tire Pressure Monitoring System (TPMS). New tires may expand slightly the first time they are driven at high speeds, which can trigger a tire pressure warning. Remember that tire pressure can only be properly measured when the tire is “cold” Only replace old tires with tires that have been approved by Volkswagen for your vehicle type. Indicator light (telltale) ¤ Please first read and note the introductory information and heed the WARNINGS Lights up Possible cause or meaning ⇒ Proper response Lights up and a chime may also sound. Stop safely as soon as possible! The inflation pressure of one or more Reduce speed immediately! Avoid fast tires is significantly lower than the cornering and hard braking! benchmark pressure set by the driver or Check the condition and inflation pressure a tire has structural damage. Depending of all tires. Have damaged tires replaced. on vehicle equipment, a message may also appear in the instrument cluster display. Flashes Possible cause or meaning ⇒ Proper response Flashes for about 70 seconds and then Check and, if necessary, adjust the tire stays on: inflation pressure in all 4 tires. If the tire System malfunction. pressure is correct, switch the ignition off and back on. If the indicator light flashes again and then stays on or does not go out after checking and adjusting the air pressure in all 4 tires and pressing the SET button, take the vehicle to an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. Have the system checked. When the ignition is switched on, several warning and indicator lights come on briefly for a function check. They go out after a few seconds.

owners manual VW Jetta Hybrid

owners manual VW Jetta Hybrid - year of production: 2012 - VW Jetta VI 6 Hybrid owners manual EN
