text version of content this owner's manual page from owners manual to the vehicle VW Jetta, year of production 2010:

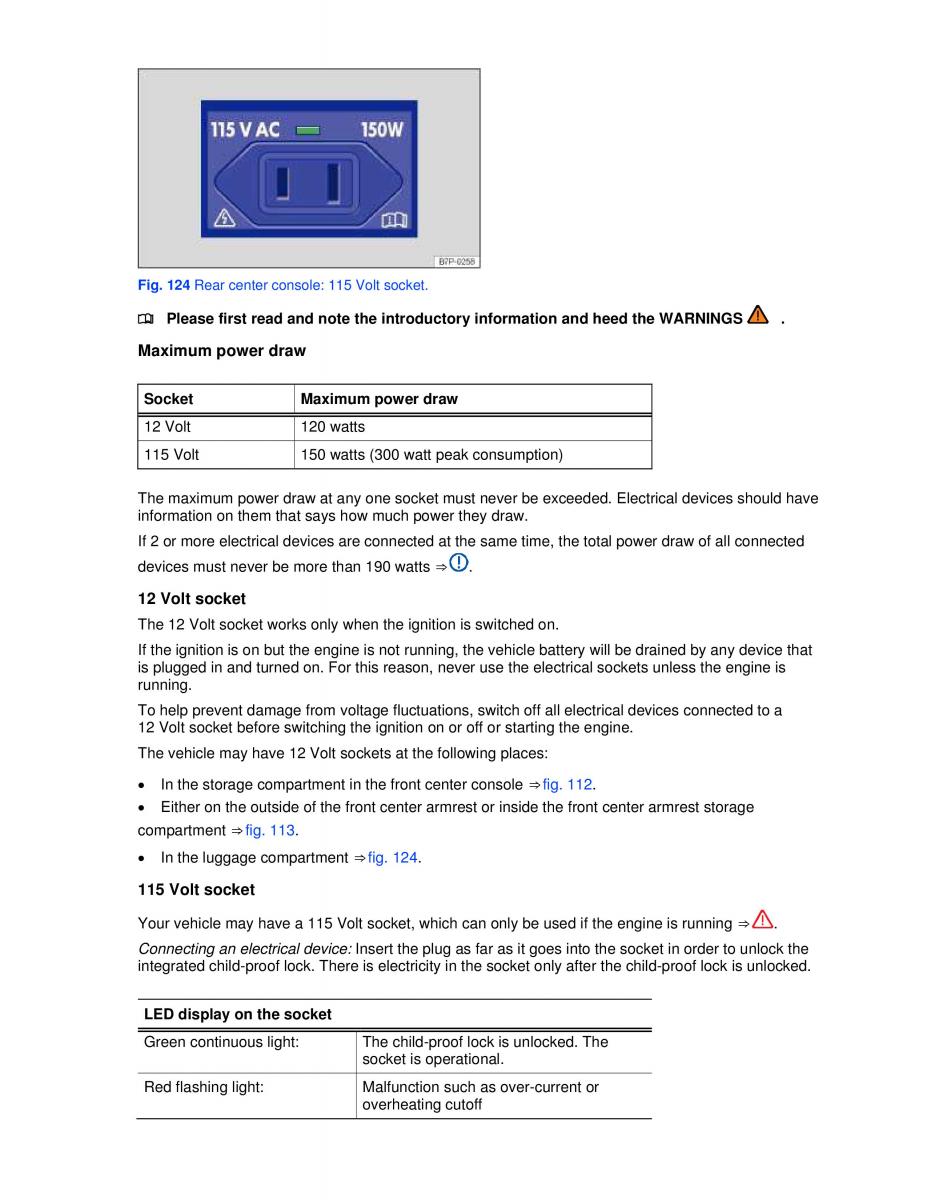

Fig. 124 Rear center console: 115 Volt socket. ¤ Please first read and note the introductory information and heed the WARNINGS . Maximum power draw Socket Maximum power draw 12 Volt 120 watts 115 Volt 150 watts (300 watt peak consumption) The maximum power draw at any one socket must never be exceeded. Electrical devices should have information on them that says how much power they draw. If 2 or more electrical devices are connected at the same time, the total power draw of all connected devices must never be more than 190 watts ⇒ . 12 Volt socket The 12 Volt socket works only when the ignition is switched on. If the ignition is on but the engine is not running, the vehicle battery will be drained by any device that is plugged in and turned on. For this reason, never use the electrical sockets unless the engine is running. To help prevent damage from voltage fluctuations, switch off all electrical devices connected to a 12 Volt socket before switching the ignition on or off or starting the engine. The vehicle may have 12 Volt sockets at the following places: x In the storage compartment in the front center console⇒ fig. 112. x Either on the outside of the front center armrest or inside the front center armrest storae g compartment ⇒ fig. 113. x In the luggage compartmen⇒ t fig. 124. 115 Volt socket Your vehicle may have a 115 Volt socket, which can only be used if the engine is running ⇒ . Connecting an electrical device: Insert the plug as far as it goes into the socket in order to unlock the integrated child-proof lock. There is electricity in the socket only after the child-proof lock is unlocked. LED display on the socket Green continuous light: The child-proof lock is unlocked. The socket is operational. Red flashing light: Malfunction such as over-current or overheating cutoff
