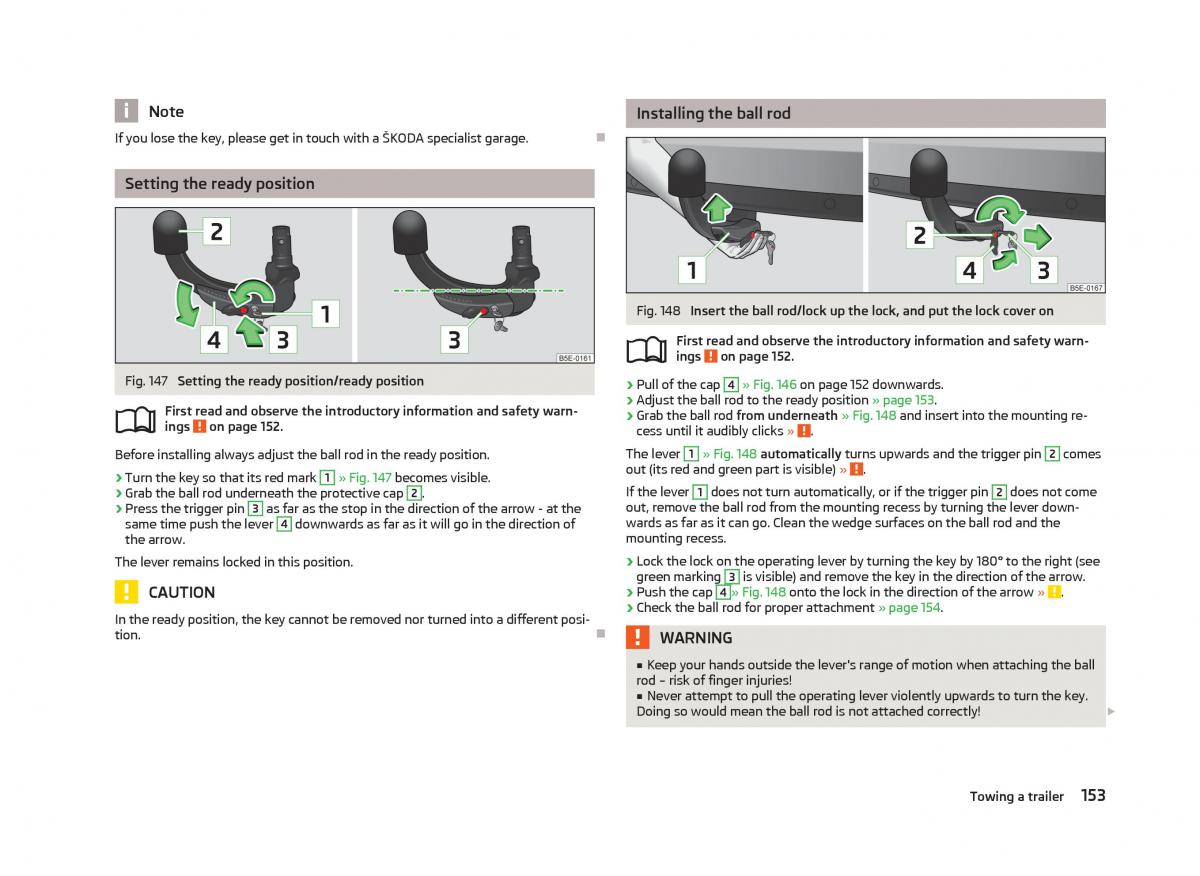

Note Installing the ball rod  If you lose the key, please get in touch with a ŠKODA specialist garage. Setting the ready position Fig. Ėęĝ Insert the ball rod/lock up the lock, and put the lock cover on First read and observe the introductory information and safety warn- ings on page ĖĚė.  Fig. ĖęĜ Setting the ready position/ready position ›Pull of the cap ę » Fig. Ėęě on page ĖĚė downwards. ›Adjust the ball rod to the ready position » page ĖĚĘ. First read and observe the introductory information and safety warn- ›Grab the ball rod from underneath » Fig. Ėęĝ and insert into the mounting re- ings on page ĖĚė.  cess until it audibly clicks » . Before installing always adjust the ball rod in the ready position. 0he lever Ė » Fig. Ėęĝ automatically turns upwards and the trigger pin ė comes out (its red and green part is visible) » . ›0urn the key so that its red mark Ė » Fig. ĖęĜ becomes visible. Grab the ball rod underneath the protective cap ė . If the lever Ė does not turn automatically, or if the trigger pin ė does not come › Press the trigger pin Ę as far as the stop in the direction of the arrow - at theout, remove the ball rod from the mounting recess by turning the lever down- › same time push the lever ę downwards as far as it will go in the direction ofwards as far as it can go. Clean the wedge surfaces on the ball rod and the the arrow. mounting recess. 0he lever remains locked in this position. ›Lock the lock on the operating lever by turning the key by Ėĝĕ° to the right (see green marking Ę is visible) and remove the key in the direction of the arrow. ›Push the cap ę » Fig. Ėęĝ onto the lock in the direction of the arrow » . CA10ION ›Check the ball rod for proper attachment » page ĖĚę. In the ready position, the key cannot be removed nor turned into a different posi-  tion. 3ARNING ■ Keep your hands outside the lever's range of motion when attaching the ball rod – risk of finger injuries! ■ Never attempt to pull the operating lever violently upwards to turn the key. Doing so would mean the ball rod is not attached correctly!  0owing a trailerĖĚĘ
