text version of content this owner's manual page from owners manual to the vehicle Hyundai Tucson, year of production 2004 - 2010:

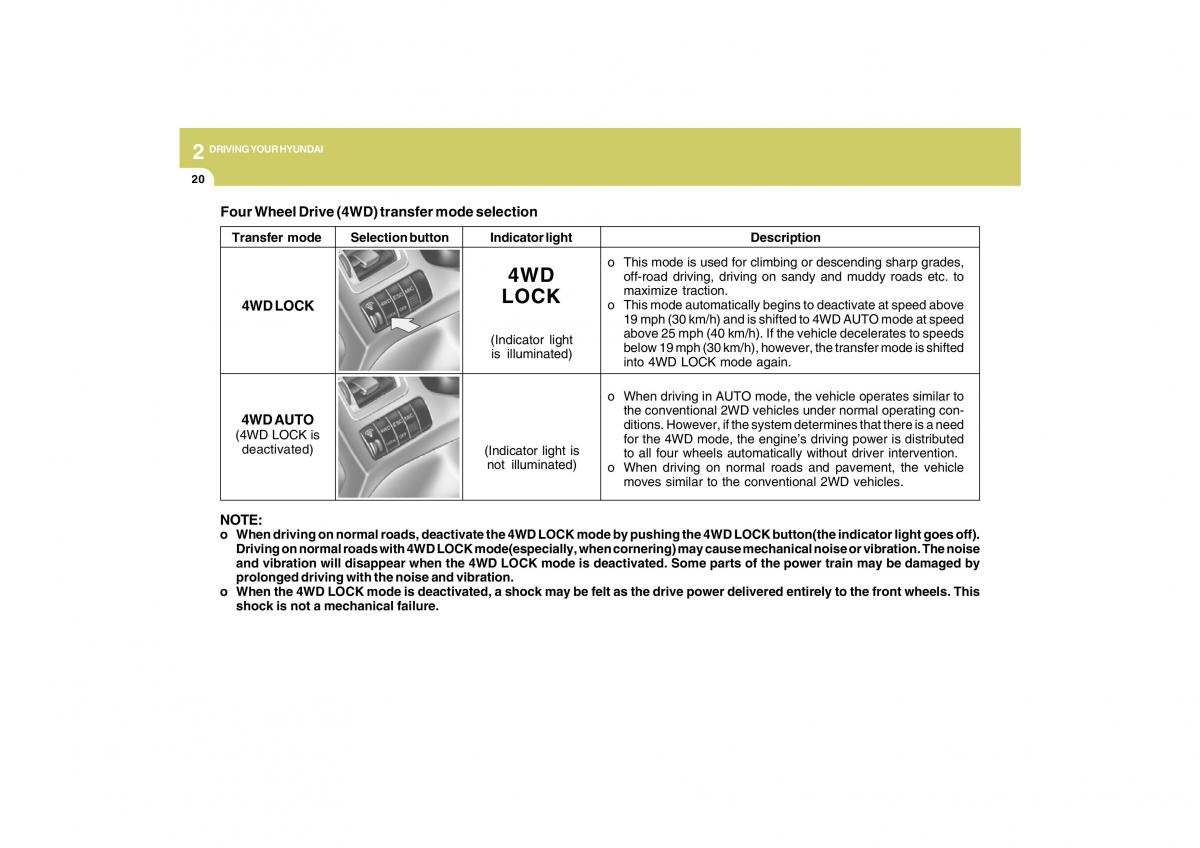

DRIVING YOUR HYUNDAI 2 20 Four Wheel Drive (4WD) transfer mode selection Transfer mode Selection button Indicator light Description o This mode is used for climbing or descending sharp grades, 4WD off-road driving, driving on sandy and muddy roads etc. to LOCK maximize traction. 4WD LOCK o This mode automatically begins to deactivate at speed above 19 mph (30 km/h) and is shifted to 4WD AUTO mode at speed (Indicator light above 25 mph (40 km/h). If the vehicle decelerates to speeds is illuminated) below 19 mph (30 km/h), however, the transfer mode is shifted into 4WD LOCK mode again. o When driving in AUTO mode, the vehicle operates similar to 4WD AUTO the conventional 2WD vehicles under normal operating con- (4WD LOCK is ditions. However, if the system determines that there is a need deactivated) for the 4WD mode, the engine’s driving power is distributed (Indicator light isto all four wheels automatically without driver intervention. not illuminated) o When driving on normal roads and pavement, the vehicle moves similar to the conventional 2WD vehicles. NOTE: o When driving on normal roads, deactivate the 4WD LOCK mode by pushing the 4WD LOCK button(the indicator light goes off). Driving on normal roads with 4WD LOCK mode(especially, when cornering) may cause mechanical noise or vibration. The noise and vibration will disappear when the 4WD LOCK mode is deactivated. Some parts of the power train may be damaged by prolonged driving with the noise and vibration. o When the 4WD LOCK mode is deactivated, a shock may be felt as the drive power delivered entirely to the front wheels. This shock is not a mechanical failure.
