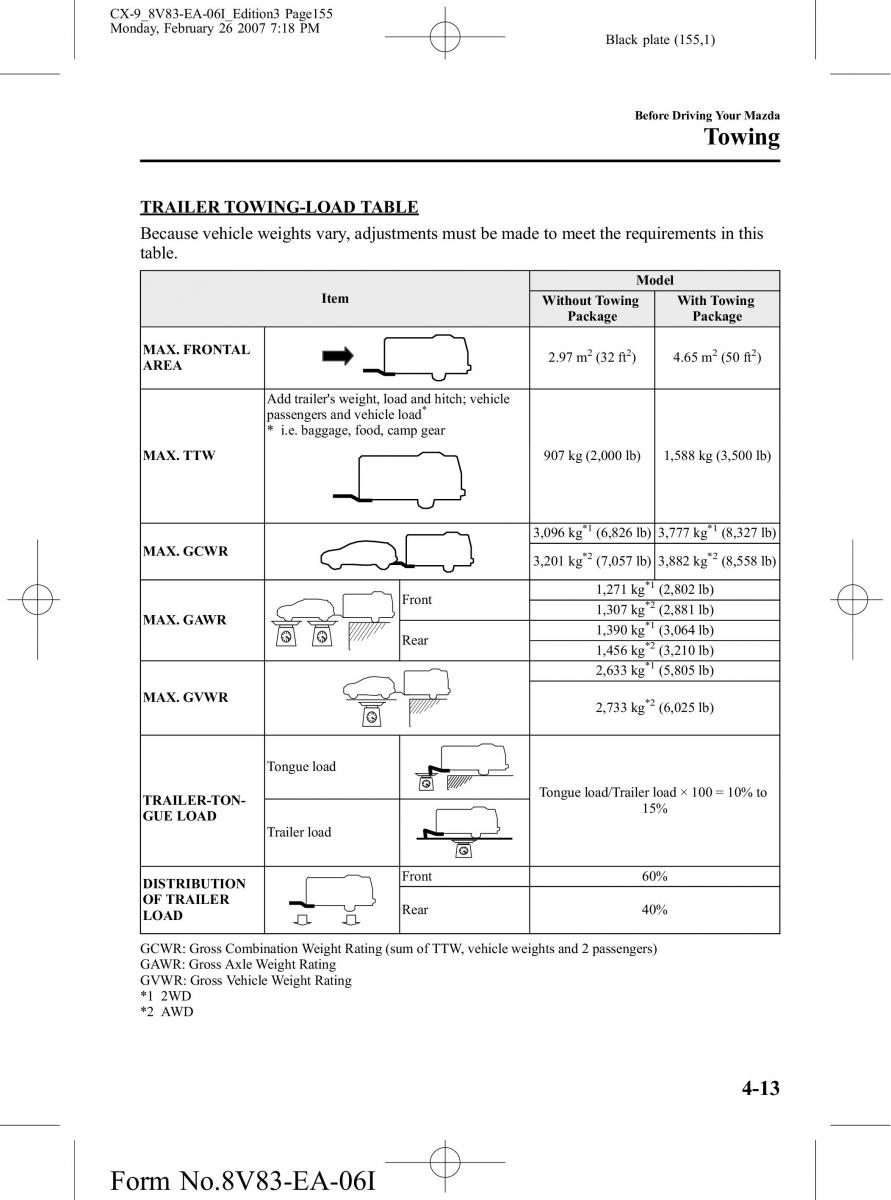

CX-9_8V83-EA-06I_Edition3 Page155
Monday, February 26 2007 7:18 PM
Black plate (155,1)
Before Driving Your Mazda
Towing
TRAILERTOWING-LOADTABLE
Because vehicle weights vary, adjustments must be made to meet the requirements in this
table.
Model
Item Without Towing WithTowing
Package Package
MAX.FRONTAL 2 2 2 2
AREA 2.97 m (32 ft ) 4.65 m (50 ft )
Addtrailer's weight, load and hitch; vehicle
passengers and vehicle load*
* i.e. baggage, food, camp gear
MAX.TTW 907kg(2,000lb) 1,588 kg (3,500 lb)
*1 *1
3,096 kg (6,826 lb) 3,777 kg(8,327 lb)
MAX.GCWR *2 *2
3,201 kg (7,057 lb) 3,882 kg(8,558 lb)
*1
Front 1,271 kg (2,802 lb)
*2
MAX.GAWR 1,307 kg (2,881 lb)
*1
Rear 1,390 kg (3,064 lb)
*2
1,456 kg (3,210 lb)
*1
2,633 kg (5,805 lb)
MAX.GVWR *2
2,733 kg (6,025 lb)
Tongueload
TRAILER-TON- Tongueload/Trailer load × 100 = 10% to
GUELOAD 15%
Trailer load
DISTRIBUTION Front 60%
OFTRAILER Rear 40%
LOAD
GCWR:GrossCombinationWeightRating(sumofTTW,vehicleweightsand2passengers)
GAWR:GrossAxleWeightRating
GVWR:GrossVehicleWeightRating
*1 2WD
*2 AWD
4-13
Form No.8V83-EA-06I
