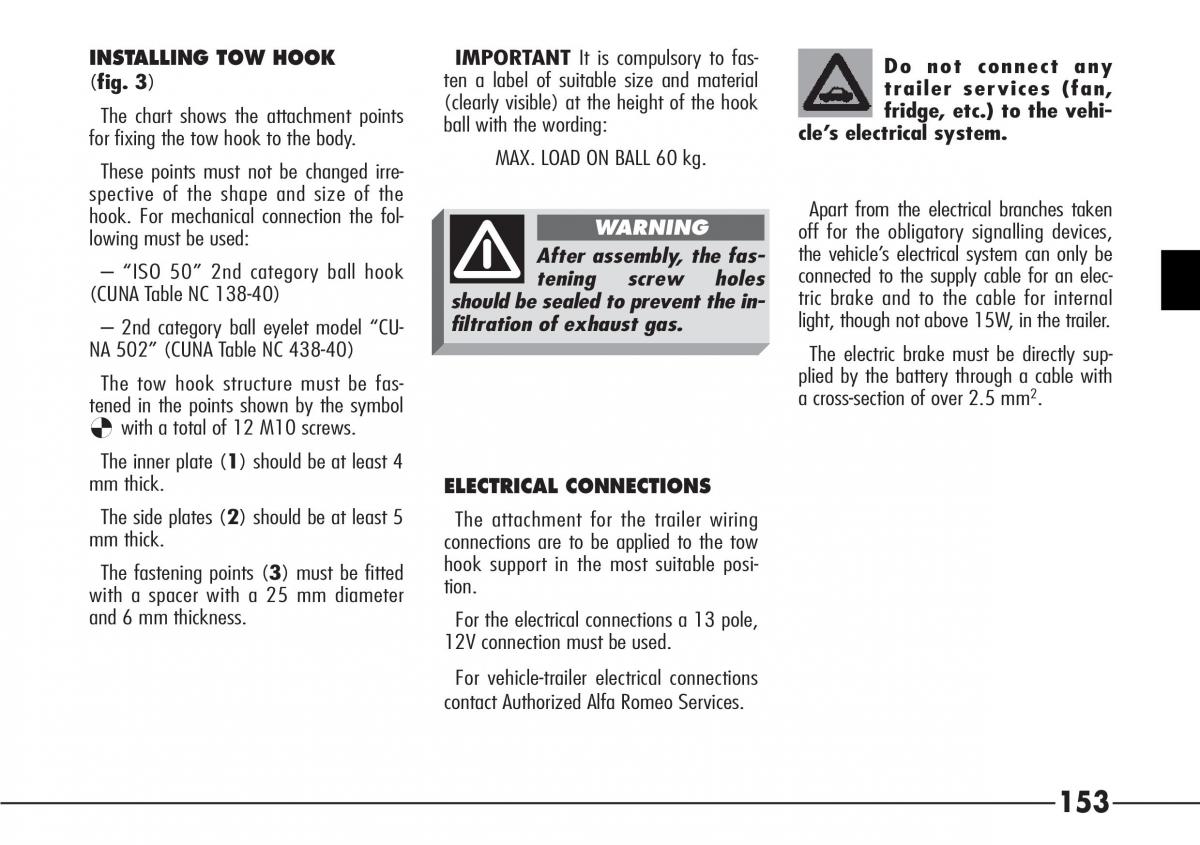

INSTALLING TOW HOOK IMPORTANT It is compulsory to fas- Do not connect any
(fig. 3) ten a label of suitable size and material
(clearly visible) at the height of the hook trailer services (fan,
The chart shows the attachment points fridge, etc.) to the vehi-
for fixing the tow hook to the body.ball with the wording: cle’s electrical system.
MAX. LOAD ON BALL 60 kg.
These points must not be changed irre-
spective of the shape and size of the
hook. For mechanical connection the fol- Apart from the electrical branches taken
lowing must be used: WARNING off for the obligatory signalling devices,
After assembly, the fas- the vehicle’s electrical system can only be
– “ISO 50” 2nd category ball hook connected to the supply cable for an elec-
(CUNA Table NC 138-40) tening screw holes
should be sealed to prevent the in-tric brake and to the cable for internal
filtration of exhaust gas. light, though not above 15W, in the trailer.
– 2nd category ball eyelet model “CU-
NA 502” (CUNA Table NC 438-40) The electric brake must be directly sup-
The tow hook structure must be fas- plied by the battery through a cable with
2
tened in the points shown by the symbol a cross-section of over 2.5 mm .
Øwith a total of 12 M10 screws.
The inner plate (1) should be at least 4
mm thick. ELECTRICAL CONNECTIONS
The side plates (2) should be at least 5The attachment for the trailer wiring
mm thick. connections are to be applied to the tow
hook support in the most suitable posi-
The fastening points (3) must be fitted
tion.
with a spacer with a 25 mm diameter
and 6 mm thickness. For the electrical connections a 13 pole,
12V connection must be used.
For vehicle-trailer electrical connections
contact Authorized Alfa Romeo Services.
153
