text version of content this owner's manual page from owners manual to the vehicle Opel Zafira, year of production 2005 - 2014:

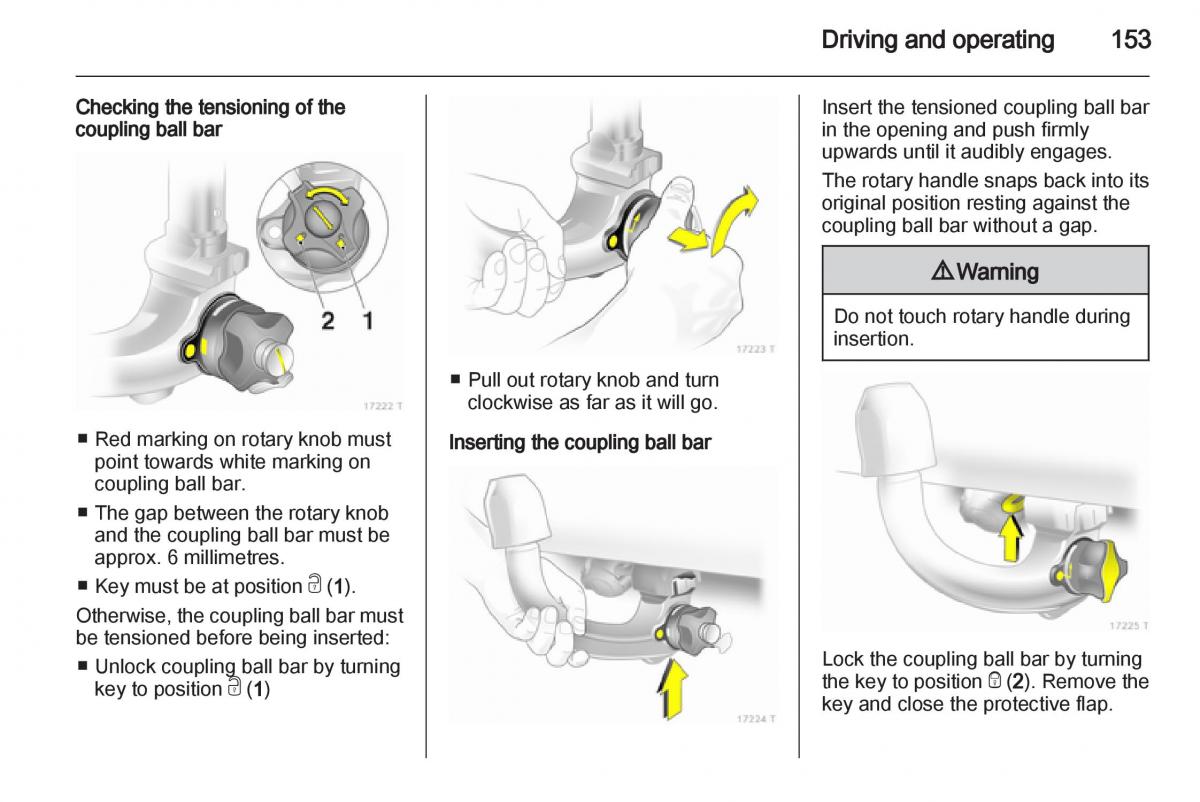

Driving and operating153 Checking the tensioning of the Insert the tensioned coupling ball bar coupling ball bar in the opening and push firmly upwards until it audibly engages. The rotary handle snaps back into its original position resting against the coupling ball bar without a gap. 9Warning Do not touch rotary handle during insertion. ■ Pull out rotary knob and turn clockwise as far as it will go. ■ Red marking on rotary knob must Inserting the coupling ball bar point towards white marking on coupling ball bar. ■ The gap between the rotary knob and the coupling ball bar must be approx. 6 millimetres. ■ Key must be at position c (1). Otherwise, the coupling ball bar must be tensioned before being inserted: Lock the coupling ball bar by turning ■ Unlock coupling ball bar by turning the key to position e (2). Remove the key to position c (1) key and close the protective flap.
