from owners manual to the vehicle Volvo V70 XC70, year of production 2007:

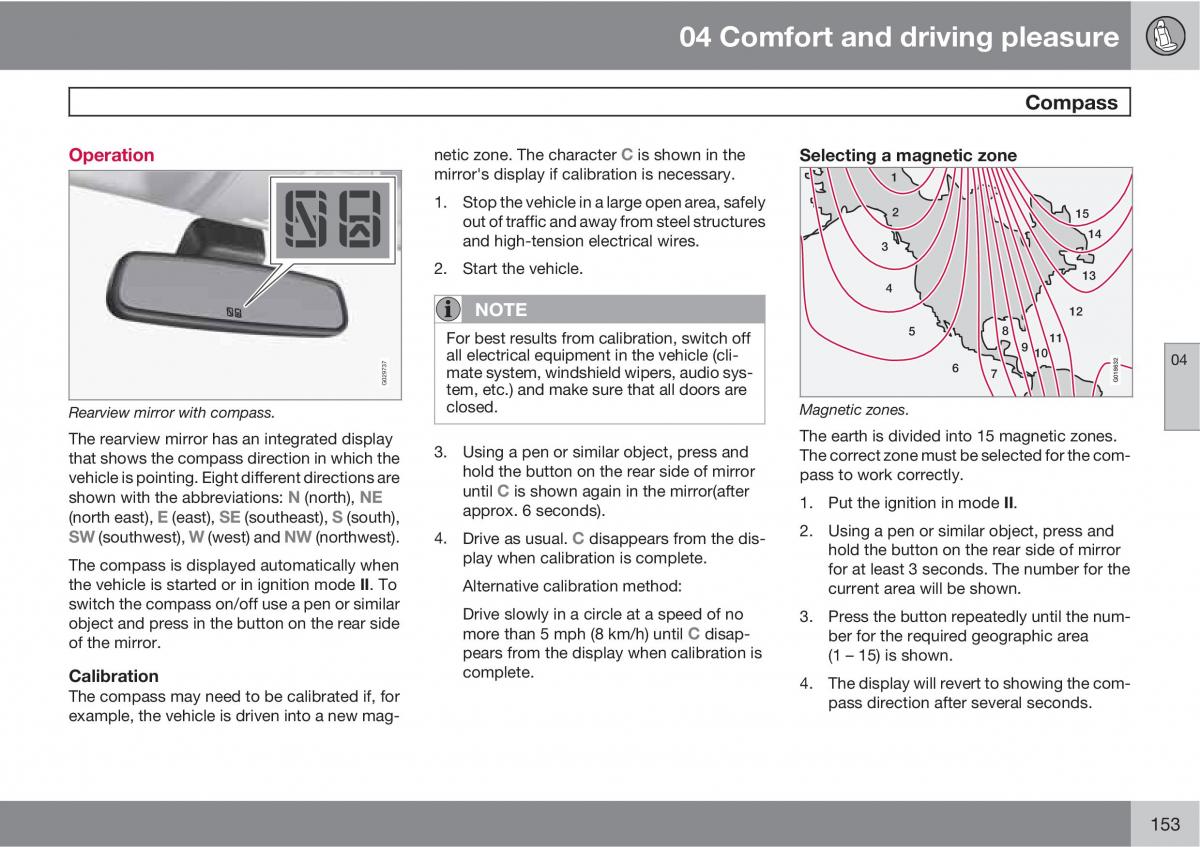

04 Comfort and driving pleasure
Compass
netic zone. The character
Operation C is shown in the Selecting a magnetic zone
mirror's display if calibration is necessary. 1
1. Stop the vehicle in a large open area, safely 2 15
out of traffic and away from steel structures
and high-tension electrical wires. 14
3
2. Start the vehicle. 13
4
NOTE 12
For best results from calibration, switch off 5 8 11
all electrical equipment in the vehicle (cli- 9 10
mate system, windshield wipers, audio sys- 6 04
7 G018632
G029737 tem, etc.) and make sure that all doors are
Rearview mirror with compass. closed. Magnetic zones.
The rearview mirror has an integrated display The earth is divided into 15 magnetic zones.
that shows the compass direction in which the 3. Using a pen or similar object, press and The correct zone must be selected for the com-
vehicle is pointing. Eight different directions are hold the button on the rear side of mirror pass to work correctly.
shown with the abbreviations: N (north), NE until C is shown again in the mirror(after 1. Put the ignition in mode II.
(north east), E (east), SE (southeast), S (south), approx. 6 seconds).
SW (southwest), W (west) and NW (northwest). 4. Drive as usual. C disappears from the dis- 2. Using a pen or similar object, press and
play when calibration is complete. hold the button on the rear side of mirror
The compass is displayed automatically when for at least 3 seconds. The number for the
the vehicle is started or in ignition mode II. To Alternative calibration method: current area will be shown.
switch the compass on/off use a pen or similar Drive slowly in a circle at a speed of no 3. Press the button repeatedly until the num-
object and press in the button on the rear side more than 5 mph (8 km/h) until C disap- ber for the required geographic area
of the mirror. pears from the display when calibration is (1 – 15) is shown.
Calibration complete. 4. The display will revert to showing the com-
The compass may need to be calibrated if, for pass direction after several seconds.
example, the vehicle is driven into a new mag-
153
